Product Description

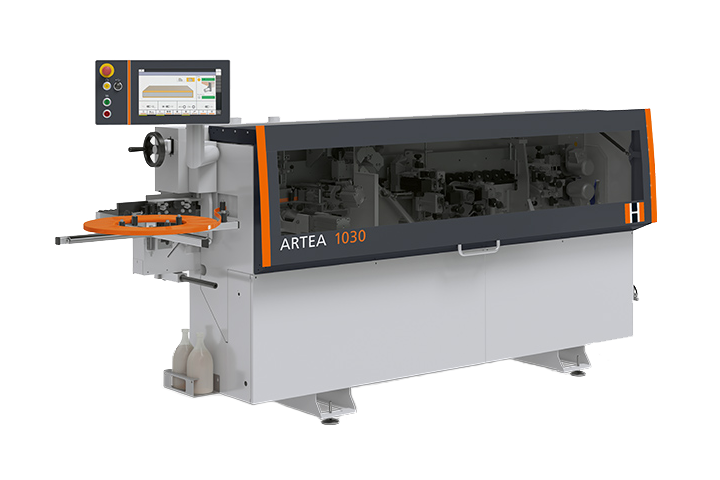

Specifications for 1030 Artea
Highlights:

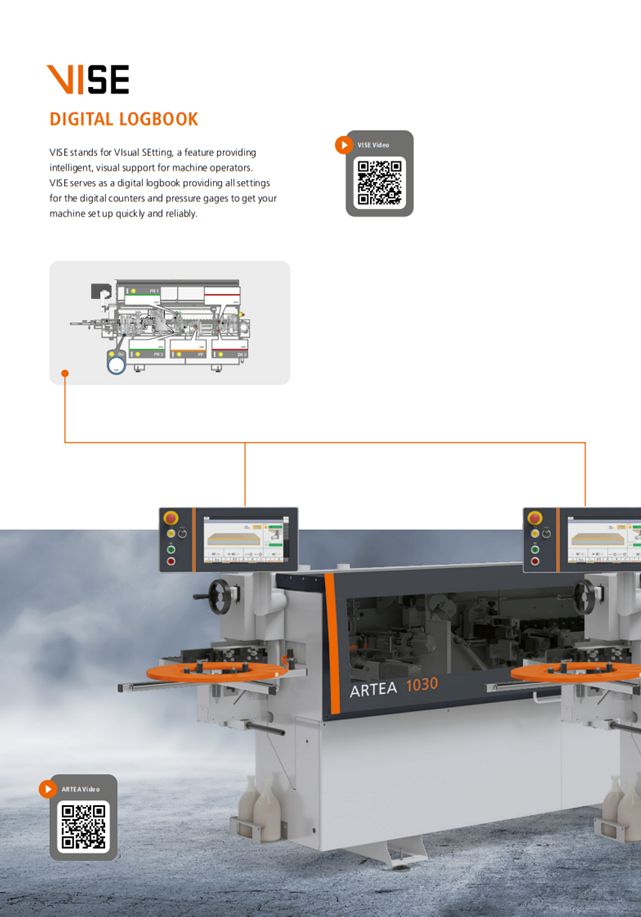

- 15.6" Touchscreen Controller (VISE)
- Max Panel Size 50mm
- 9 m/min Feed Speed
- 3 mm edge capacity for coil / 5mm edge capacity for strips
- Single Strip Feeder
- Edge Feeder (MG101)
- Pre-Mill Cutters (Diamond Tipped) (FG101)

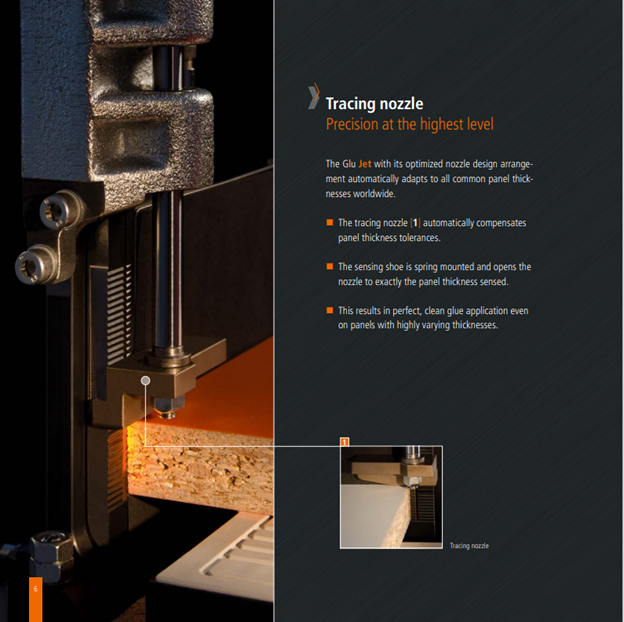

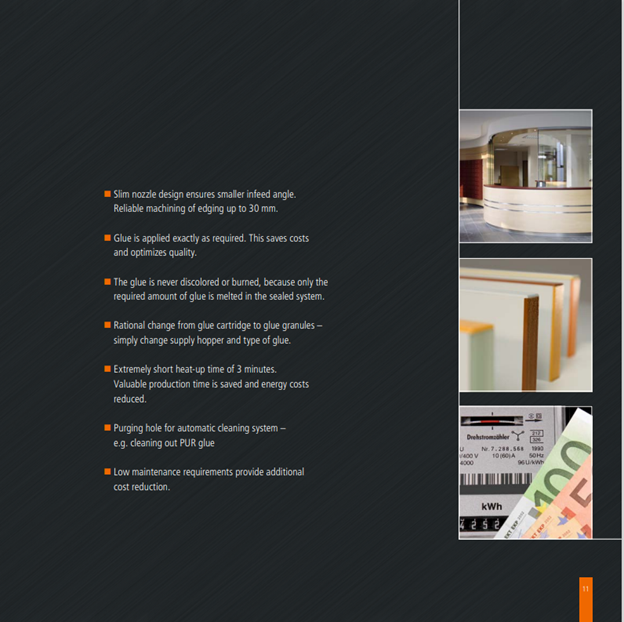

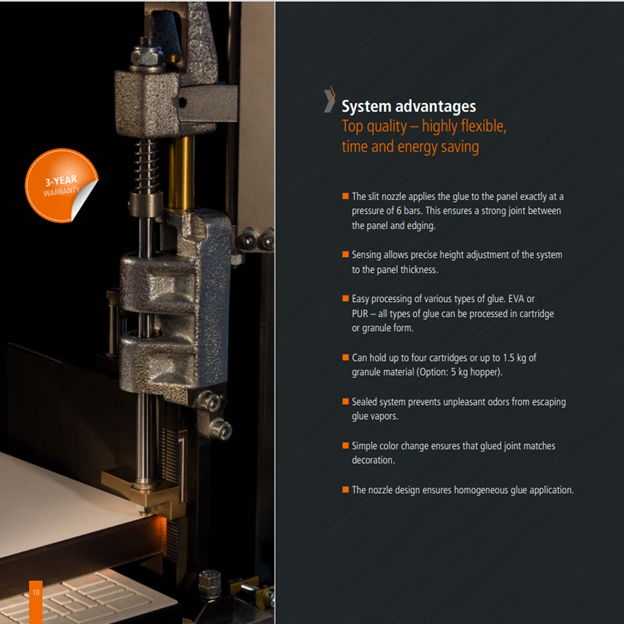

- Holz-Her's GluJet System (GJ101)
- Pressure Section (2 Rollers) (DW101)
- End Trim (KA101)
- Top/Bottom Cutter (Diamond Tipped) (FR101)
- Corner Rounding (FF101)
- Profile Scraper (ZK101)
- Flat Scraper (FK101)
- Buffing Unit (SW101)
Optional Items:
Spray Unit for PUR (5068370) - $3,426.00

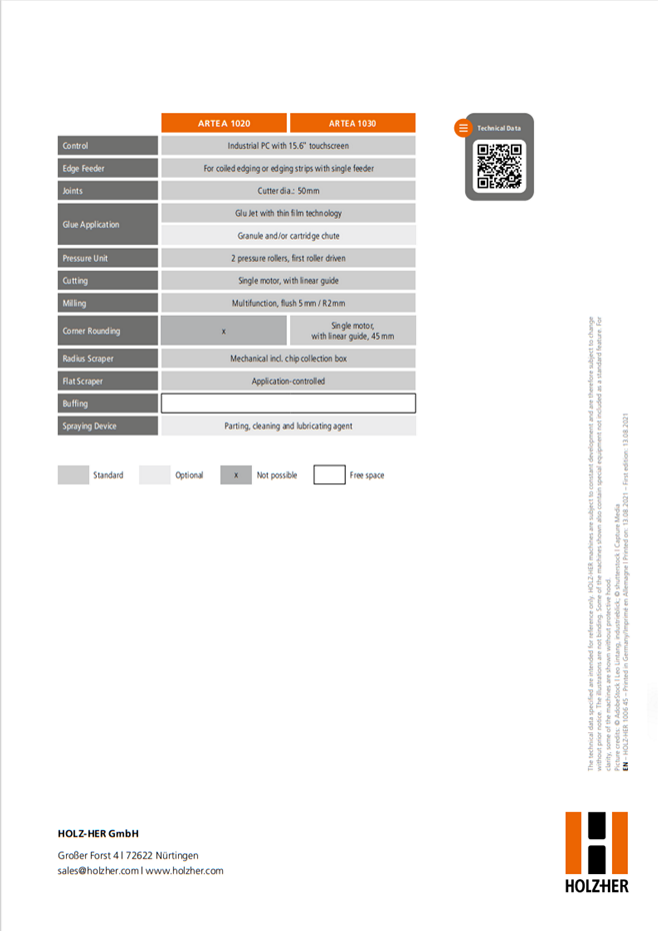

Technical Specs:
- 3595mm (11.8ft) Length
- 1330mm (4.3ft) Width
- Crated Weight: 1197kg (2640lbs)
- Machine Weight: 740kg (1631lbs)
- 230V
- 3ph (can be ran on 1ph)
- 35A Full Load Amperage
- 1000CFM Dust Extraction
- 6-8 Bar Air Pressure
- 3CFM Air Pressure
