Product Description

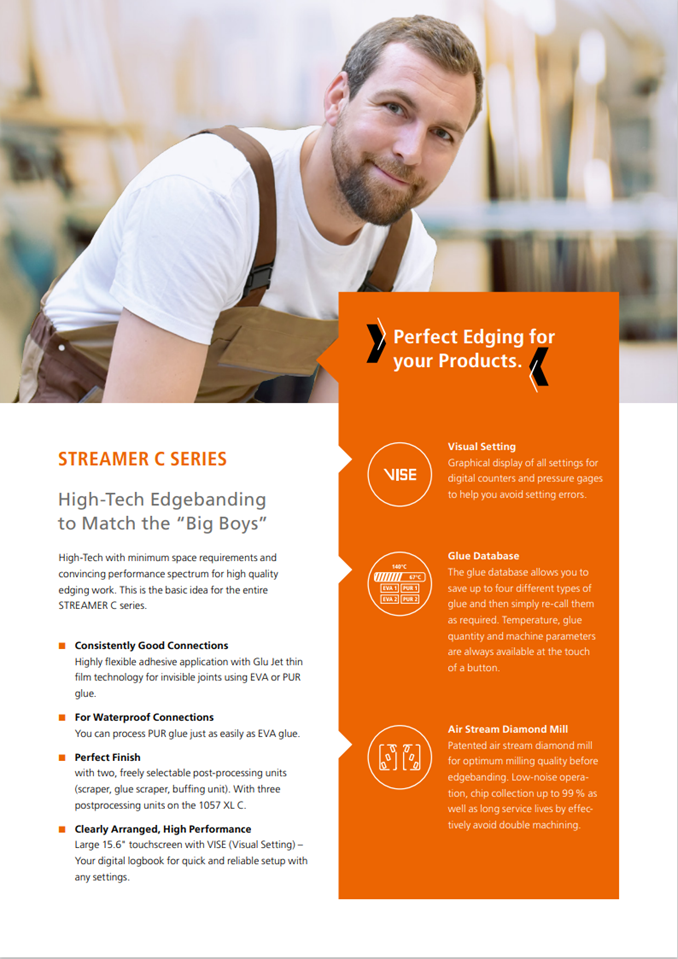

1057 XL C Streamer
Entry Level Edgebander With Pre-Milling & Corner Rounding
Highlights:
- 15.6" Touchscreen Controller (VISE)
- Max Panel Size 60mm
- 10 m/min Feed Speed
- 3 mm edge capacity for coil / 8 mm edge capacity for strips
- Pre-Mill Cutters (Diamond Tipped) (FG201)
- Auto Magazine
- Edge Feeder (1903)

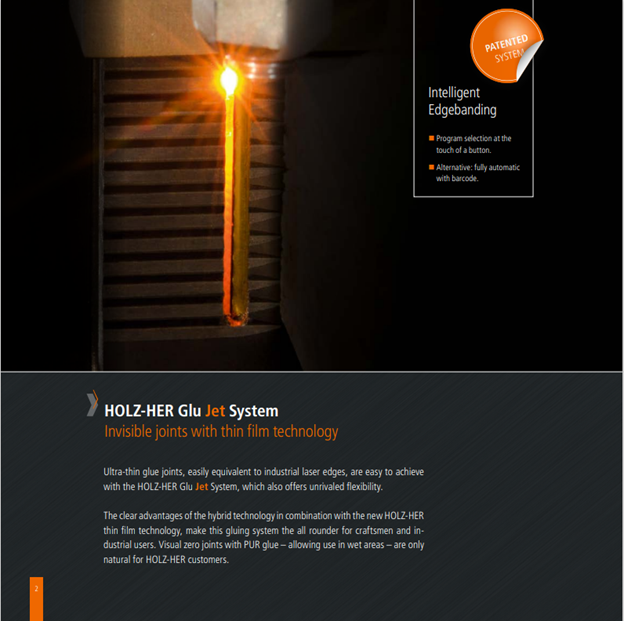

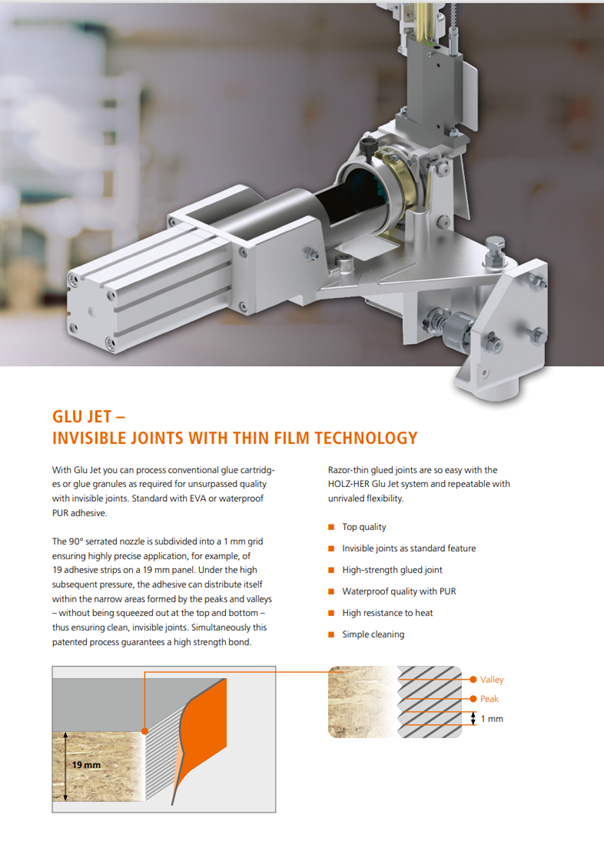

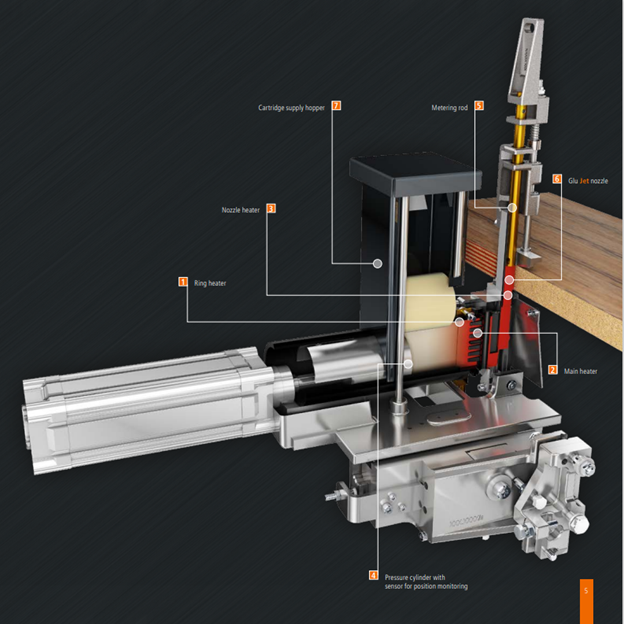

- Holz-Her's GluJet System (GJ301)
- Pressure Section (3 Rollers) (1912-3PNEU)
- End Trim (1918PNEU)
- Corner Rounding (1832)
- Top/Bottom Cutter (Diamond Tipped) (FR201)
- Profile Scraper (ZK301 pneumatic)
- Buffing Unit (1940)
- **New machines ordered in 2024 will also have nesting shoes + end trim dust hood**

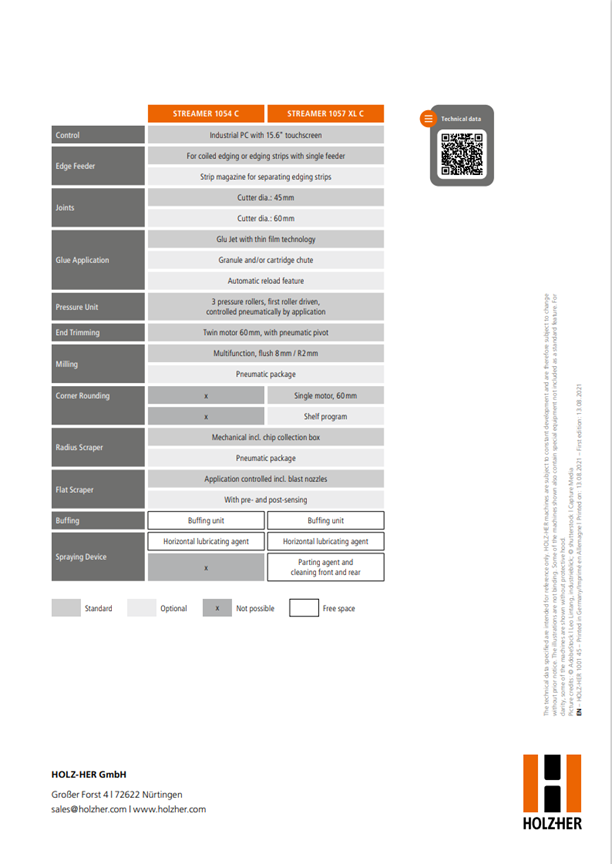

Technical Specs:
- 4930mm (16.2ft) Length
- 1600mm (5.25ft) Width
- Crated Weight: 1927kg (4250lbs)
- Machine Weight: 1440kg (3174lbs)
- 230V
- 1ph (can be ran on 3ph)
- 38A Full Load Amperage
- 1624CFM Dust Extraction
- 6-8 Bar Air Pressure
- 4CFM Air Pressure
