Product Description
1308XL Power
Automated Edgebander with 3 Finishing Units
Highlights:

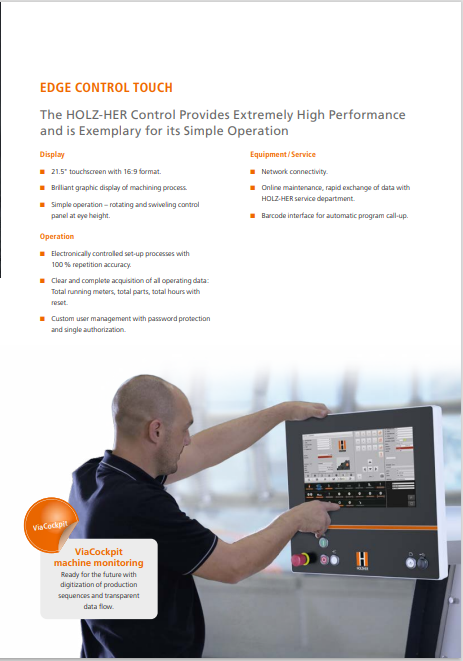

- 21.5" Touchscreen Controller
- Max Panel Size 60mm
- 10 m/min Feed Speed
- 3 mm edge capacity for coil / 8 mm edge capacity for strips
- Pre-Mill Cutters (Diamond Tipped) (FG201)
- Edge Feeding (1903)
- Auto Magazine

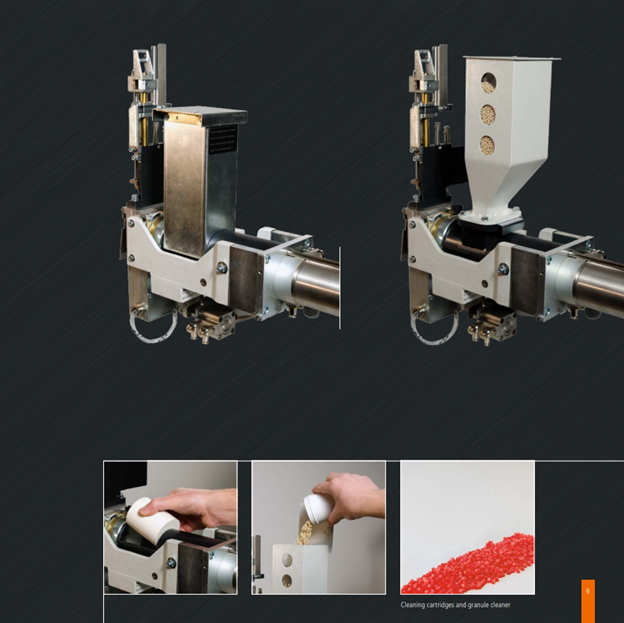

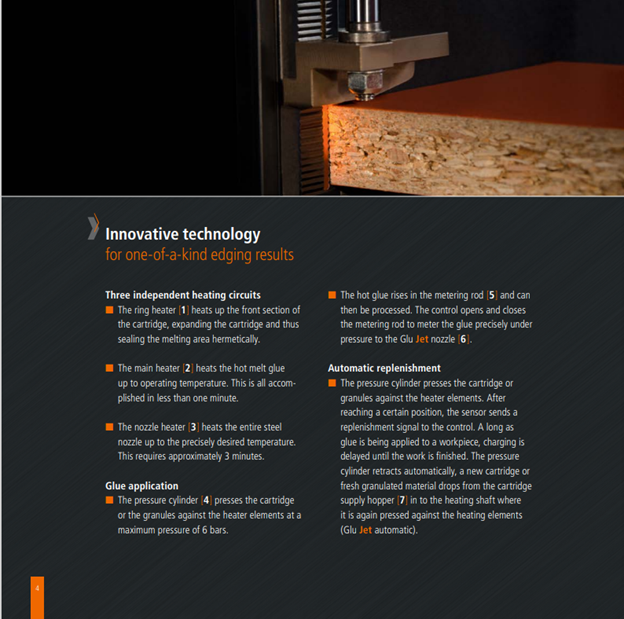

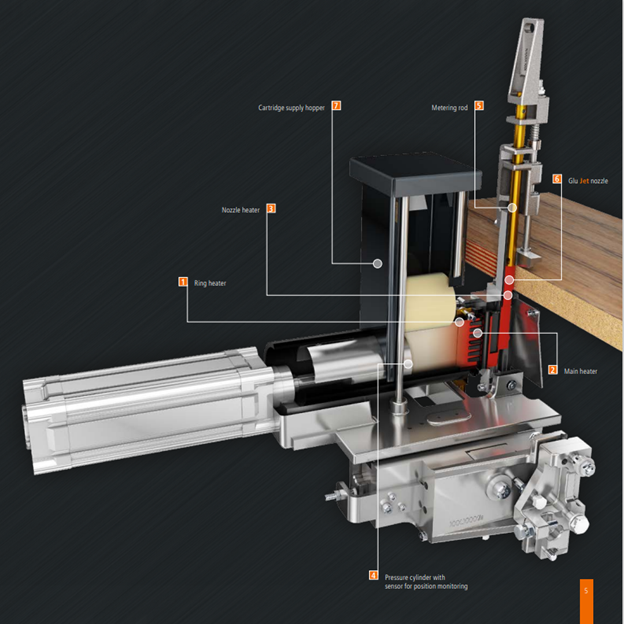

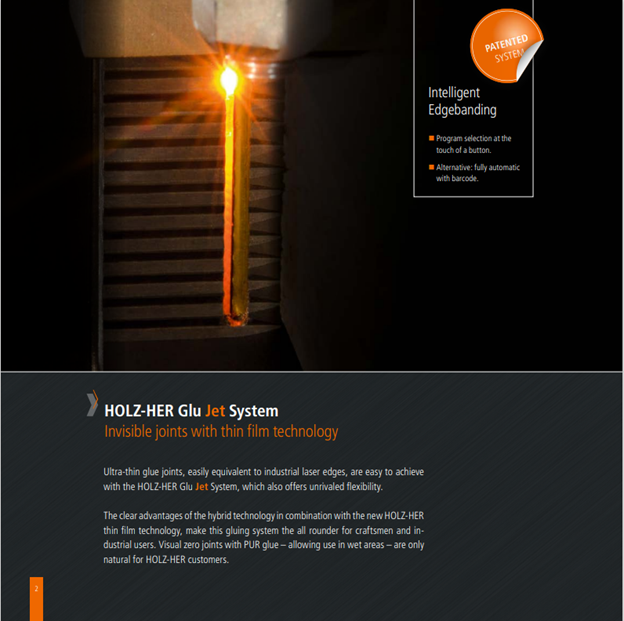

- Holz-Her's GluJet System (GJ301)
- Pressure Section (3 Rollers) (1912-3 PNEU)
- Nesting Shoes
- End Trim (1918 PNEU)
- Top/Bottom Cutter (6 Servo Controlled Motors) (FR301)
- Corner Rounding (1 Servo Controlled Motor) (FF301)
- Profile Scraper (4 Servo Controlled Motors) (ZK301)
- Flat Scraper (1964)
- Dual Sprayers (TR301)
- **New machines ordered in 2024 will have LEDs under the hood + end trim dust hoods**
Technical Specs:
- 5410mm (17.75ft) Length
- 1600mm (5.25ft) Width
- Crated Weight: 1905kg (4200lbs)
- Machine Weight: 1400kg (3086lbs)
- 230V
- 3ph
- 36A Full Load Amperage
- 1848CFM Dust Extraction
- 6-8 Bar Air Pressure
- 3CFM Air Pressure
