1321-14-01 Double Head, 43” Wide, Widebelt Sander.
KEY FEATURES

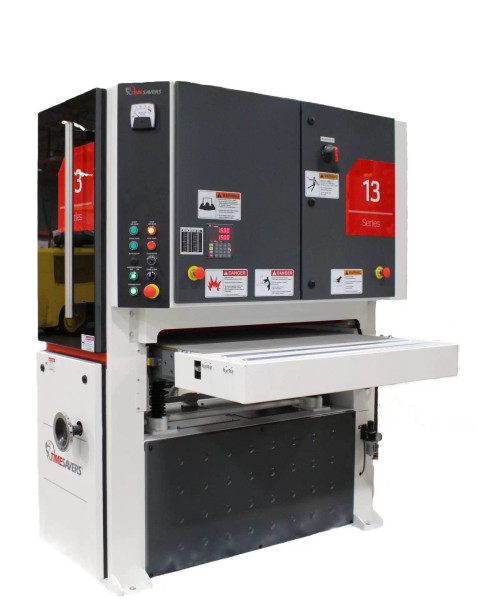

The Timesavers Model 1321-14-01 Double Head, 43” Wide, Widebelt Sander is equipped with two top heads; an 8” diameter contact drum followed by a dual action sanding head with platen. It includes industry leading standard features designed to meet your application needs. Superior design and construction of the TimesaversModel1321-14-01 Doublee Head, 43” Wide, Widebelt Sander gives you the competitive edge.
SPECIFICATIONS
Abrasive belt size: 43”x60”
Main Motor: 20 HP & 15 HP
Maximum width stock: 42"
Minimum part length: 13"
Maximum thickness opening: 5"
Feed speed: 15-45 FPM
Voltage/Phase/Frequency: 230/3/60
Full load amps @ 230 volt: 105*
Motor type: TEFC
Passline height: 33”-38”
Dust extraction: 2000 CFM (5” static pressure)
Compressed air usage: 4 CFM @ 90 psi
Approximate shipping weight: 4,500 lbs.
STANDARD FEATURES
8” Diameter Contact Drum (1st Head Position): A dynamically balanced 8” diameter contact roll with precision bearings.
Dual Action Sanding Head (2nd Head Position): Combination head with 4-3/4" diameter contact drum and 2 1/2” wide platen allows for both calibrating and finish sanding with same head.
20 & 15 Horsepower Main Drive Motors: Abrasive head drive motor and other motors are precision balanced for power and long life. Totally enclosed, fan-cooled motors add durability.
Four Jack Bed Construction: Four heavy duty precision jacks, one supporting each corner of the conveyor bed assembly.
Dual Infeed and Dual Outfeed Holddown Rolls: Rubber-covered, spring-loaded rolls aid in holding parts onto the conveyor belt as they pass through the machine.
Air Operated Disc Brakes: Used to stop the abrasive head to assure consistent abrasive belt stoppage in approximately four seconds. This braking system will not fade under continuous braking and has non-sparking, easily replaceable linings. The brake disc is located on the main motor shaft for easy maintenance.
Centralized Control Panel: Simple operator controls for machine operation. Conveyor feed and abrasive belt heads are controlled at this centralized location.
Infeed Stop Bar: A sheet metal gate acts as an emergency stop for the operator when loading the machine. The gate actuates a limit switch, which shuts down the abrasive belt heads and conveyor in emergency situations.
Hour Meter: Records actual running time of the machine. This unit is used by maintenance for scheduled lubrication of key components.
Main Motor Percentage Load Meters: Provided on each sanding head to show the exact percentage of main motor horsepower being used during operation.

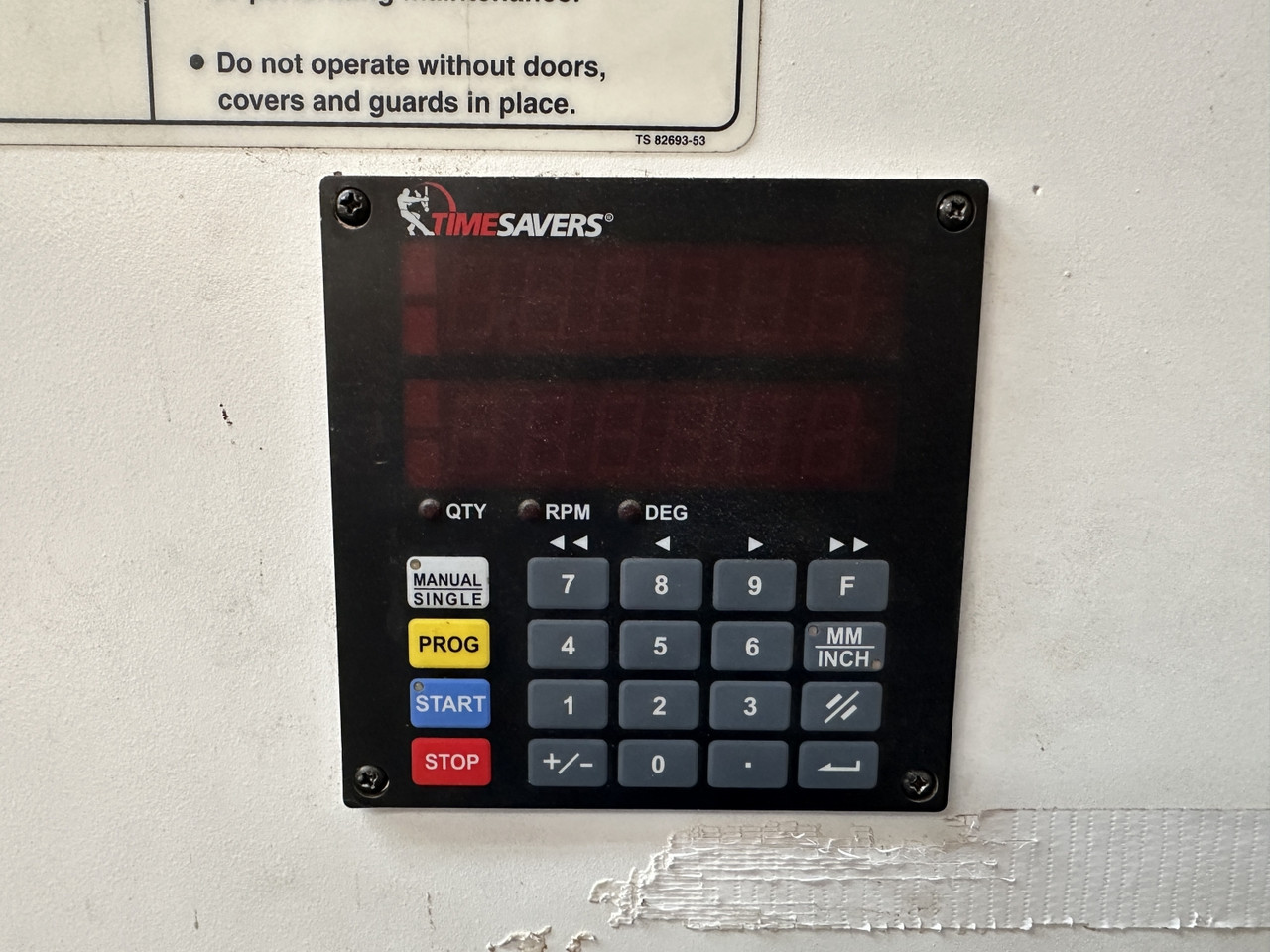

Electronic Go-To Device: Allows user to digitally enter desired machine opening position. Indicates conveyor speed and conveyor bed position in relation to sanding belt for accurate setup to .001”. The device can store up to ten programs.
Motorized Thickness Adjustment: Conveyor bed setting is motor driven. Allows for changes in thickness settings of material to be processed.
Through-Beam Abrasive Belt Tracking: Electronic photo-eye tracking which monitors and controls abrasive belt movement on the grinding head. Over-travel limit switches prevent abrasive belt damage in case of mistrack.
Quick Release Outboard Support: Allows fast removal of outboard support to expedite abrasive belt change.
Abrasive belts can be changed in approximately one minute.
Variable Speed Conveyor Drive: 15-45 FPM A/C variable frequency conveyor drive allows operator to change feed speed by simply turning a dial, even while running parts.
