Product Overview
1327 Sprint Power
Fully Automated Edgebander with iTronic
Highlights:

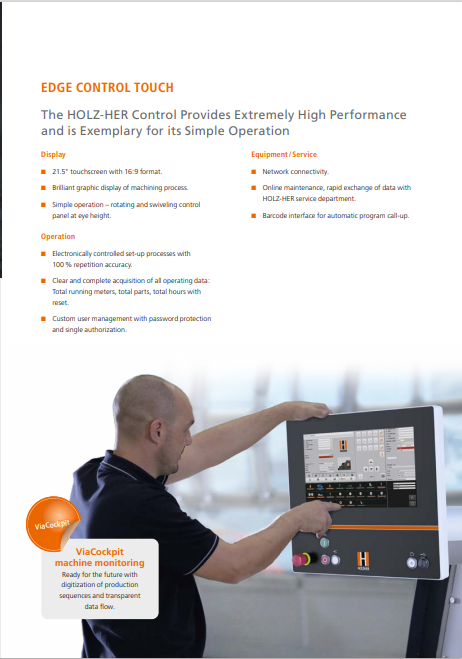

- 21.5" Touchscreen Controller
- Includes F.A.S.T. Technology
- Max Panel Size 60mm
- 10m/min - 18m/min Feed Speed
- 3 mm edge capacity for coil / 8 mm edge capacity for strips
- Motorized Pressure Beam
- Pre-Mill Cutters (Diamond Tipped) (1802)
- SYNCHRO Drive Edge Feeding (1901)

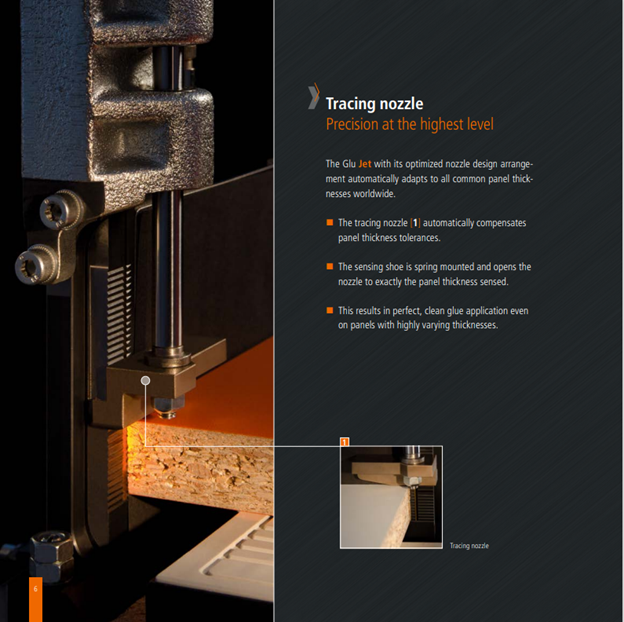

- Holz-Her's GluJet System (Includes Hopper) (GJ301)
- Pressure Section (3 rollers) (DW501MOT)
- Nesting Shoes
- End Trim (1918)
- Top/Bottom Cutter (6 Servo Controlled Motors) (FR301)
- Corner Rounding (1 Servo Controlled Motor) (FF301)
- Profile Scraper (4 Servo Controlled Motors) (ZK301)
- Surface Glue Scraper (FK701)
- Dual Sprayers (TR501)
- Buffing (1940)
- Compatible with ReturnMaster 5510
iTronic:
1. Adaptive Trimming Blade
2. Automatic Pressure Unit
3. Automatic Glue Quantity Control
4. Automatic Cleaning Routine
5. Remaining Glue Quantity Indicator
Options:
- Air Cushioned Infeed Table (BS701)
- Anti-static spray unit (AM501)
- Lubricant spray unit (GM501) (Recommended for use with high gloss panels)
- *Safety hood for infeed area (hood covers the Premilling unit, Glujet unit, and Pressure section)
- *Automatic lubrication of the transport chain (Sensor controlled, lubrication metered)
- *Infrared Heating Unit (ZH701) (Warms up panel edge before glue application)
- *GJ301 NC Servo Controlled (Servo controlled adjustment of gluing height)
*Options denoted with an asterisk are for custom order machines ONLY, and cannot be applied to stock machines.
Technical Specs:
- 5335mm (17.75ft) Length
- 1828mm (6ft) Width
- Crated Weight: 1905kg (5500lbs)
- Machine Weight: 1830kg (4034lbs)
- 230V
- 3ph
- 50A Full Load Amperage
- 1848CFM Dust Extraction
- 6-8 Bar Air Pressure
- 13CFM Air Pressure
