Product Description
1329 Sprint Multi
Fully Automated Edgebander with iTronic & Multi-Tool Changer
Highlights:

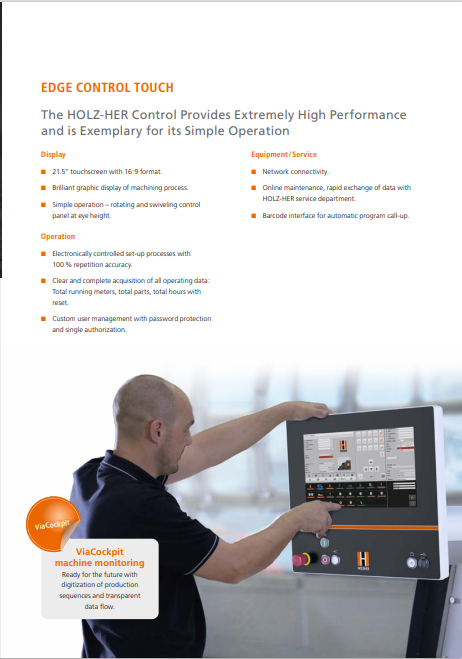

- 21.5" Touchscreen Controller
- Includes F.A.S.T. Technology
- Max Panel Size 60mm
- 10m/min - 18m/min Feed Speed
- 3 mm edge capacity for coil / 8 mm edge capacity for strips
- Motorized Pressure Beam
- Pre-Mill Cutters (Diamond Tipped) (1802)
- SYNCHRO Drive Edge Feeding (1901)

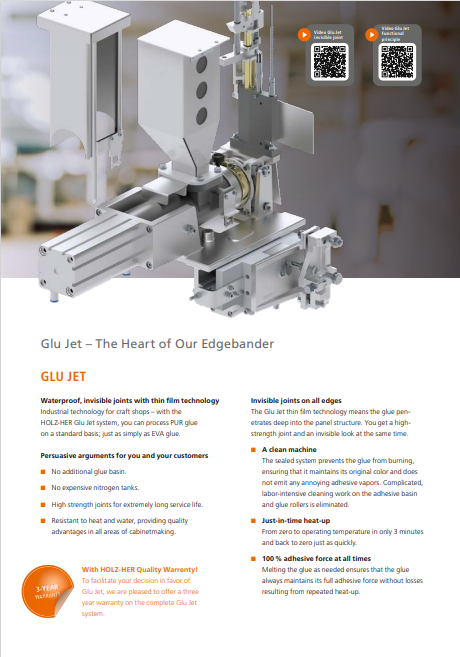

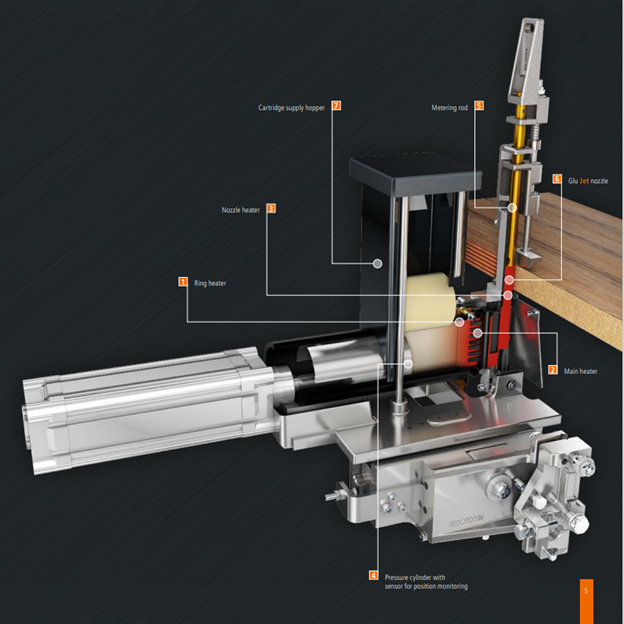

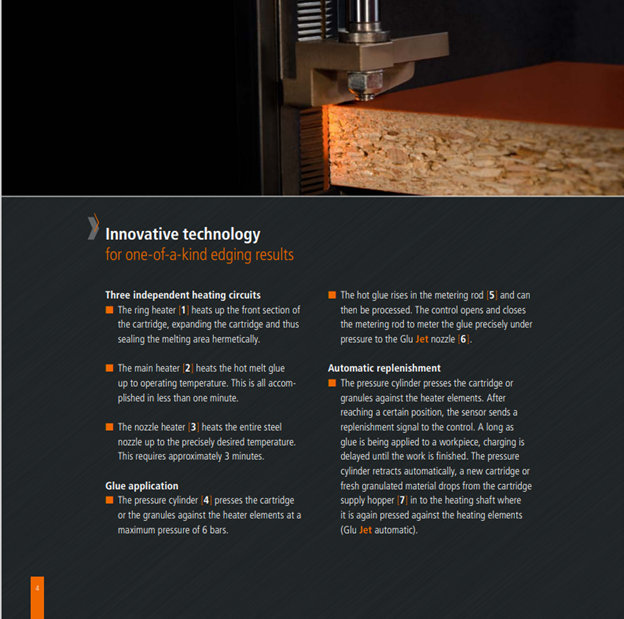

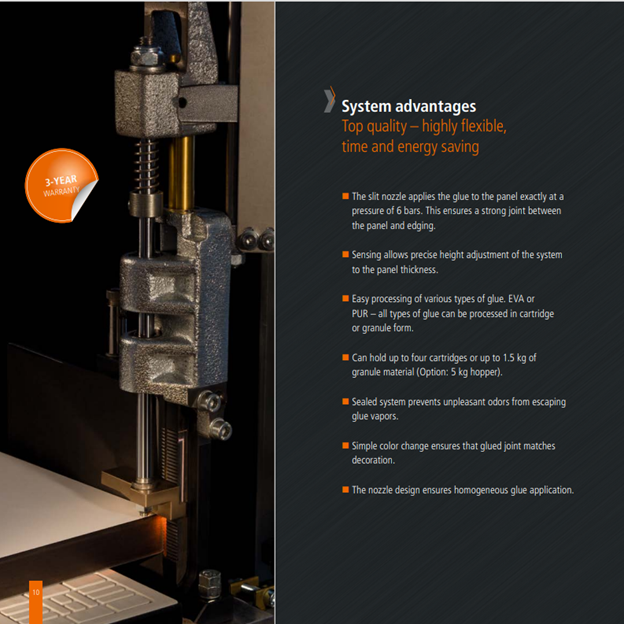

- Holz-Her's GluJet System (Includes Hopper) (GJ301)
- Pressure Section (Servo Controlled Motor) (DW501)
- Nesting Shoes
- End Trim (1918)
- Top/Bottom Cutter (6 Servo Controlled Motors) (FR701MULTI)
- Corner Rounding (2 Servo Controlled Motors) (FF701MULTI)
- Profile Scraper (4 Servo Controlled Motors) (ZK502MULTI)
- Surface Glue Scraper (1964)
- Sprayer Units (TR501)
- Buffing (1940)
- Compatible with ReturnMaster 5510
iTronic:
1. Adaptive Trimming Blade
2. Automatic Pressure Unit
3. Automatic Glue Quantity Control
4. Automatic Cleaning Routine
5. Remaining Glue Quantity Indicator
Technical Specs:
- 5740mm (19ft) Length
- 1828mm (6ft) Width
- Crated Weight: 2630kg (5800lbs)
- Machine Weight: 2095kg (4618lbs)
- 230V
- 3ph
- 63A Full Load Amperage
- 2319CFM Dust Extraction
- 6-8 Bar Air Pressure
- 13CFM Air Pressure
