Larick 220 Description

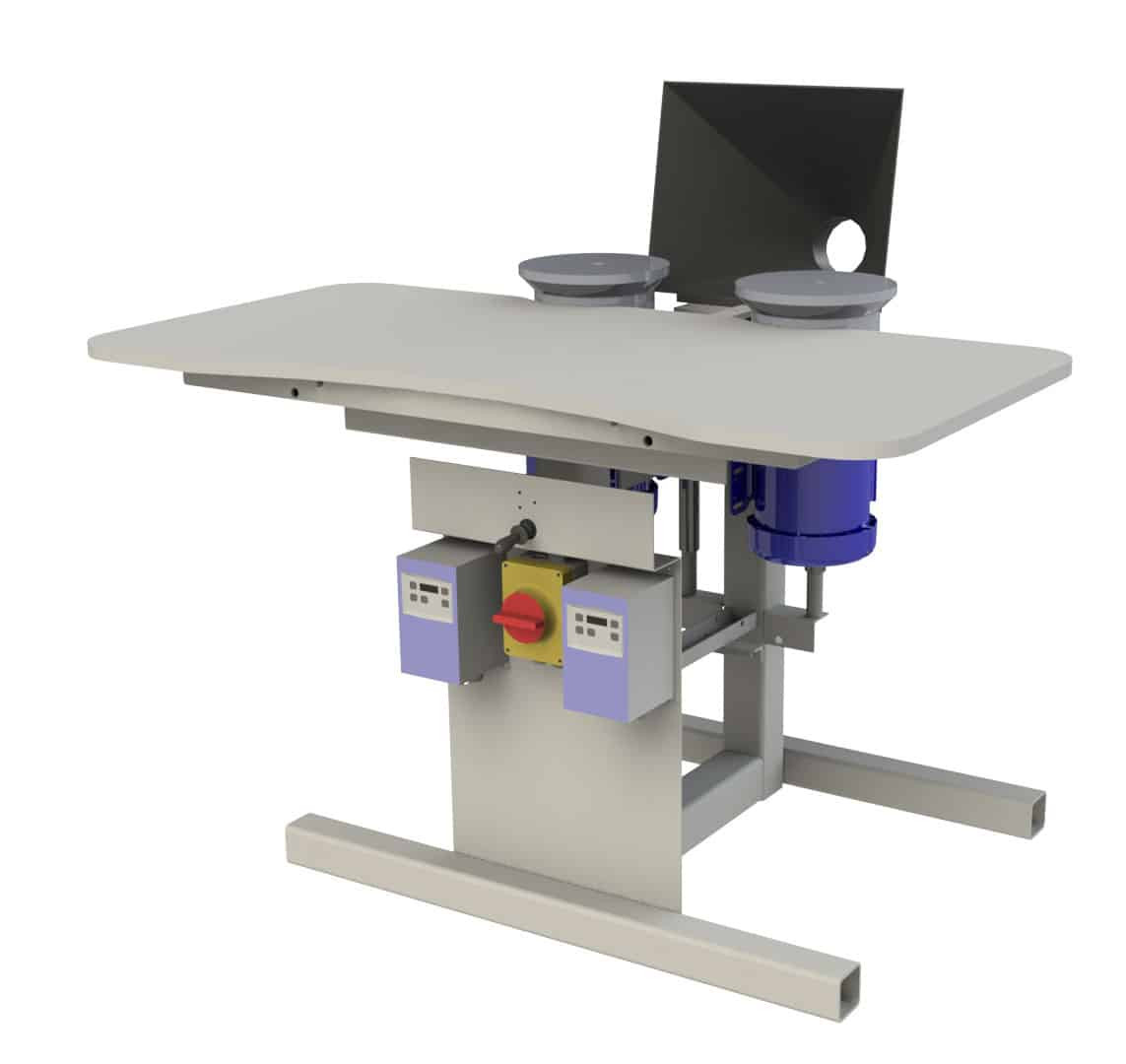

The Model 220 Profile Sander is a two-spindle machine designed for use with flexible brush type sanding wheels. The spindles are counter-rotating, allowing corners to be sanded without rounding over, and to sand in two directions. There are two height settings, allowing it to be used for both edge and panel sanding. In the raised position, the table moves toward the spindles, under the panel sanding wheel, providing support for small panels.
Standard Operation
The spindles move up or down together and are controlled by an air valve. Adjustable stops are used for positioning. In addition to the vertical spindle travel, the tabletop also moves back 2″ when the spindles are raised. This provides support under the lower sanding head when sanding raised panels.
The Larick Model 220 features two counter-rotating spindles to be used with brush type sanding wheels. This allows parts to be sanded without noticeable rounding over on corners. The sanding technique is to sand the left corners on the right sander and the right corners on the left sander. This method has the brushes formed to the profile as they go over the corners.
220 Advantages:
- designed for flexible brushes
- 2 upper and lower sanding heads
- table moves up and down, allowing the user to sand certain parts, easily sanding without rounding edges
Machine Specifications:
Motor:
Two each 1 HP 6 Pole, 3 Phase, Direct Drivee
Arbor:
1″ Dia. by 6″ Tall
Dust Collection:
One 4.0″ ports (300 CFM total)
Air Pressure Required:
80 PSI
Voltage:
208-240 Volt, 3 Phase, 50-60 Hertz
Adjustments:
Variable Speed:
AC Inverter 100-1200 rpm
Vertical Adjustment:
6″
Table Travel:
2″
Footprint:
48″ x 41″ x 48″
(W x D x H)
Arbor:
1″ Dia. by 6″ Tall
Table Height:
36″
