Product Description

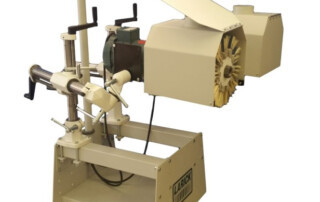

Larick 230 Description
The Model 230 Profile Sander is designed for use with flexible brush type sanding wheels. Beyond that, you will find super versatility in this machine, adjusting each spindle vertically and horizontally, with tilt and rotation – at the outfeed, over a table, or sand your wood part freehand!
Standard Operation
The spindle motors are controlled by inverters giving individual variable speed and sanding direction. The spindles on the Larick Model 230 adjust individually to sand the top, bottom, front, or back of parts. Inverters control the spindles’ speed and rotational direction individually.
In addition to the built-in adjustment of the stands, the stands may slide forward/back on the base in addition to mounting the base higher or lower. Locking casters allow it to be rolled into position and locked in place.
The 230 Series Profile Sander is a two spindle machine designed for use with flexible brush type sanding wheels. The spindles adjust individually, with vertical, horizontal, tilt and rotation. It can be placed at the outfeed end of a moulder, over a table, or used to sand free-hand.
230 Advantages:
- designed for flexible brushes
- fully adjustable individually, with vertical, horizontal, tilt, and rotation.
Machine Specifications:
Motor:
Two each 1 HP 6 Pole 3 phase Direct Drive
Arbor:
1.25″ Dia. by 10″ long
Dust Collection:
Two each 3.0″ ports (400 CFM total)
This Machine comes standard with Casters for easy mobility.
Voltage:
208-240 Volt, 3 Phase, 50-60 Hertz
Adjustments:
Variable Speed:
AC Inverter 100-1200 rpm
Vertical Travel:
18″
Footprint:
37.5″ by 32″
Weight:
495 lbs.
