Product Description

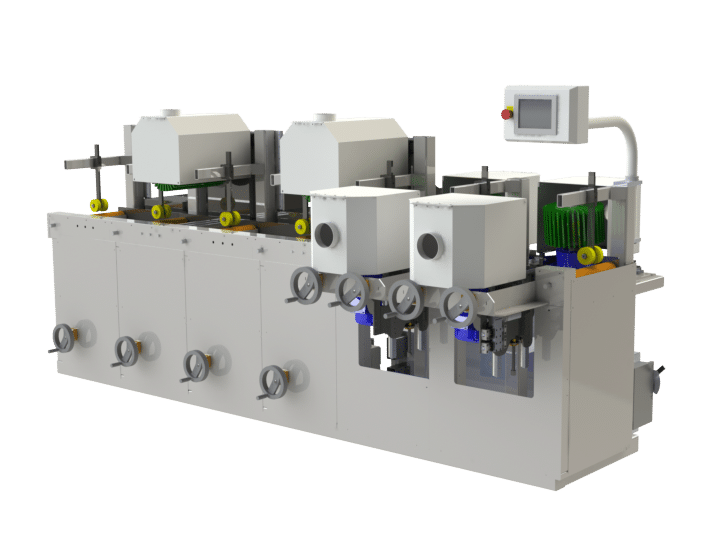

Larick 5000 Series Description
The 5000 Series is designed with a small footprint, is rugged, dependable, and manufactured with as many ‘off the shelf’ parts as possible to minimize downtime and maintenance.
Standard Operation
The top and bottom spindles are belt driven with full power down to 450 RPM. Side heads may be direct drive with horizontal, vertical and tilt adjustments, or belt driven for increased torque. Speed and direction are controlled from the touchscreen. Each motor’s load is also displayed.
Pillar Machine will build the 5000 series machine to fit your needs for width, height, and number of Top, Bottom or Side Heads.
Inverters control the feed rate, spindle speed, and rotational direction. Larger diameter sanding and wire brushes deliver best results. Top and bottom spindles are belt driven for increased torque. Side heads may have tilt and vertical adjustment with direct drive motors, or be belt driven to increase torque.
The 5000 Series machine can be configured to sand the top, bottom or sides of parts utilizing a chain driven roller feed system. It has a fixed height roller conveyor.
5000 Advantages:
- fully customizable to suit shop needs
- designed with a small footprint
- ideal for sanding long thick parts
- rugged
- dependable
Machine Specifications:
Operator interface: Manual Control
Standard machine configuration includes: Two top heads
Conveyor width: 15 inch
Material thickness: Up to 6″ thick
Feed Rate: 4 to 47 FPM
Direction of travel through machine: “Right to Left” standard.
Dust Collection Ports: Multiple 4-5″
Dust Collection CFM: 800+
Voltage:
208-240 Volt, 3 Phase, 50-60 Hertz
Spindles:
Spindle dimensions:
1 1/4″ diameter
Spindle HP:
1 HP
Spindle RPM:
Top head: 200 to 900 RPM
