Product Description
Highlights:

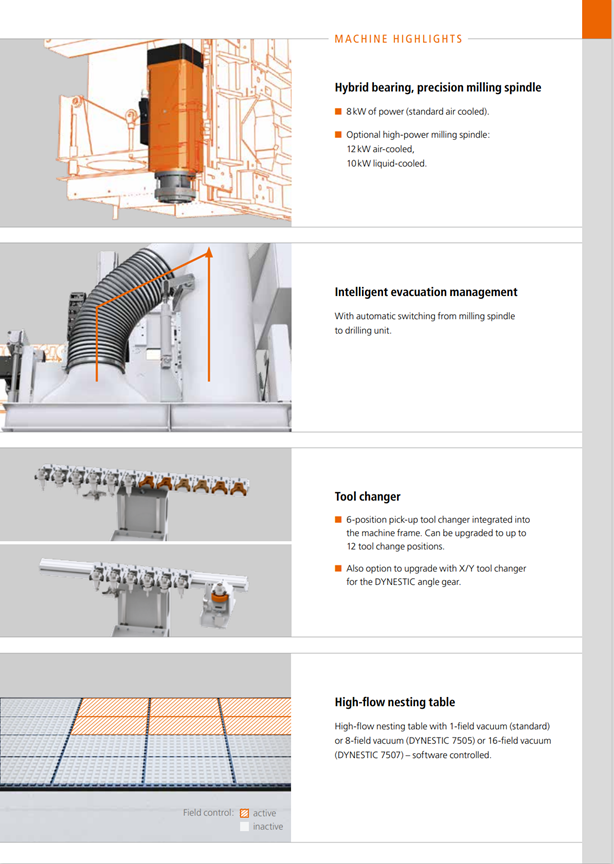

-15 kW (20 Hp) air-cooled router spindle
-14 Position Drill Block (10 Vertical + 4 Horizontal)
-12 Position linear tool changer
-Startup tool kit
-Single Becker 590 m^3/h pump
-Air conditioning unit for control cabinet

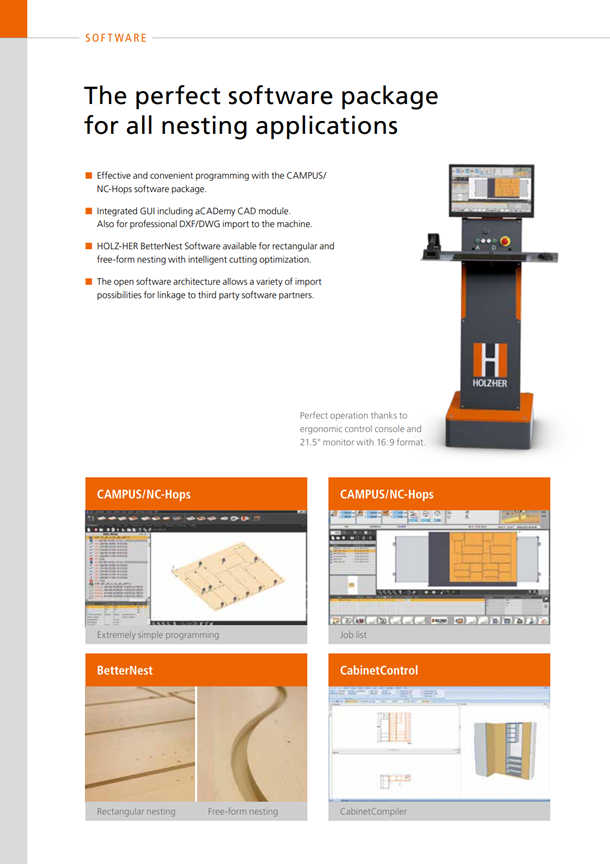

-Full Campus Suite for machine
-Vector Speed: 101 m/min
-Multi-tap Transformer Included (input 208V-240V or 480V)
Technical Data:
- Main Power Supply to Transformer : 208-240V or 480V
- Quick-Connect Breaker Size : 40 amp
- From Transformer to Cabinet Control : 52 amp (with neutral)
- 2nd Power Supply to Vacuum Pump : 208-240V or 480V
- Quick-Connect Breaker Size : 50 amp
- Mains Frequency : 50/60 Hz
- Compressed Air Operating Pressure : 6,0 bar
- Compressed Air Pressure Limit : 8,0 bar
- Extraction Capacity (approx) : 2100 CFM (3400 m3/h)
- Compressed Air Connection : 3/8” (87psi, 10cfm)
- Weight (approx.) : 8800 lbs
