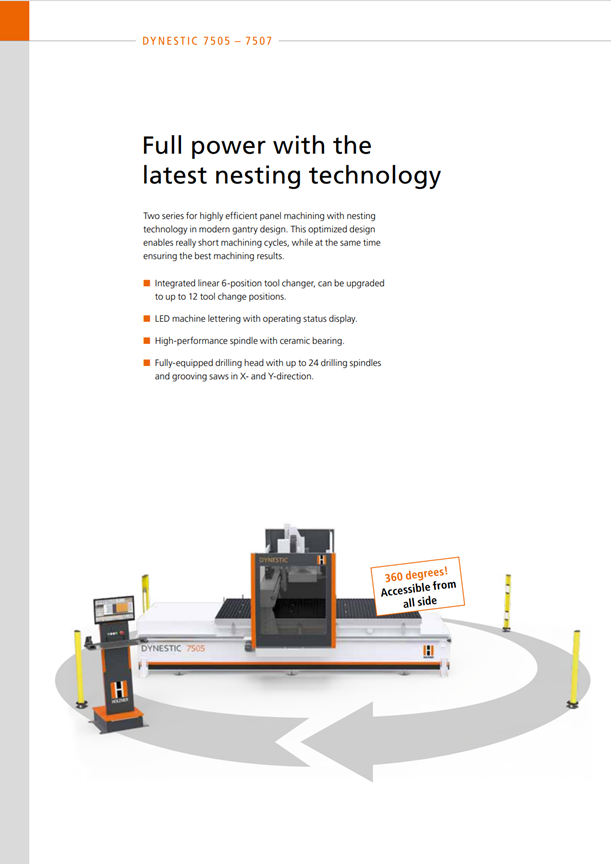

Product Description
Size: 5' x 12' with Lift Table Infeed
Highlights:
-15 kW (20 Hp) air-cooled router spindle
-14 Position Drill Block (10 Vertical + 4 Horizontal)
-12 Position linear tool changer
-Startup tooling kit
-Tool Touch-Off Device (WZ 7)
-Servo adjusted Push Off Device and Panel sweeper/vacuum
-Ultra-sonic panel measurement for pusher height adjustment
-Down Draft at right end of table
-12’ Belt Conveyor with electric eye
- Lifting table for front loading (3200mm x 1600mm)
- Heavy duty scissor lifting table with fenders for alignment of panel stacks
- Measurement system for panel height at lifting table
- Security fence on the side and back of lifting table
- Lifting Table: Max Weight of load 6613 lbs - Max Height 400 mm
- Roller conveyors for connection between lifting table and machining table
- Panel Length Measuring Laser for precise positioning of the panel in the X-direction when loading the machine
-Single Becker 590 m^3/h pump
-Air conditioning unit for control cabinet

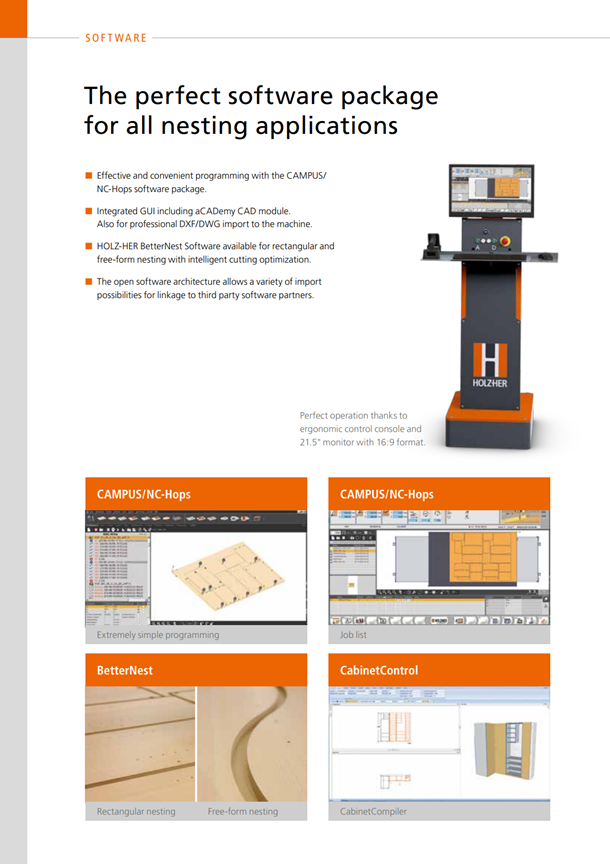

-Full Campus Suite for machine
-Vector Speed: 101 m/min
-Start-up and training
-Multi-tap Transformer Included; input 208V-240V or 480V
Technical Data:
- Main Power Supply to Transformer : 208-240V or 480V
- Quick-Connect Breaker Size : 40 amp
- From Transformer to Cabinet Control : 52 amp (with neutral)
- 2nd Power Supply to Vacuum Pump : 208-240V or 480V
- Quick-Connect Breaker Size : 50 amp
- Mains Frequency : 50/60 Hz
- Compressed Air Operating Pressure : 6,0 bar
- Compressed Air Pressure Limit : 8,0 bar
- Extraction Capacity (approx) : 2100 CFM (3400 m3/h)
- Compressed Air Connection : 3/8” (87psi, 10cfm)
- Weight (approx.) : 8800 lbs
