• CANTEK | C12RSH STRAIGHT LINE GLUE JOINT RIPSAW

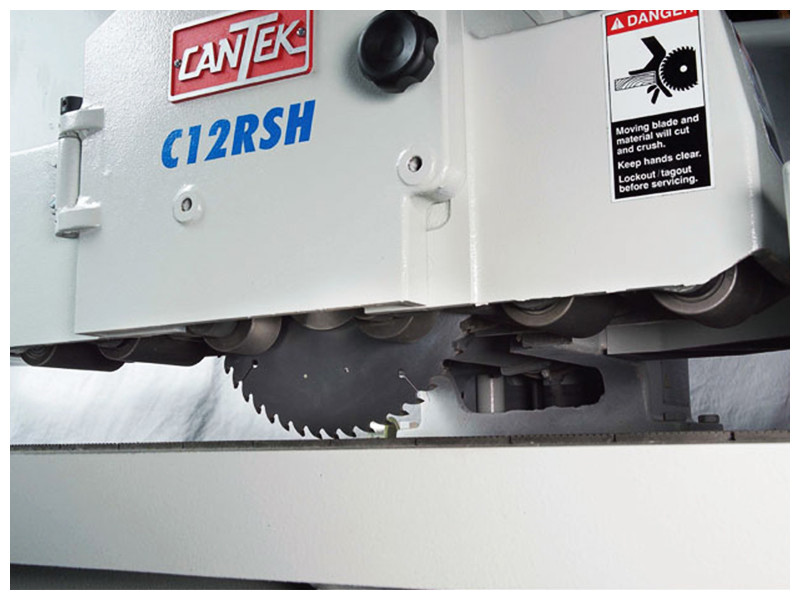

  • Machine Construction Heavy-duty cast-iron machine table and saw head assembly with superior vibration damping for optimum cut quality and wear resistance. The table is precision machined to ensure perfect uniformity.

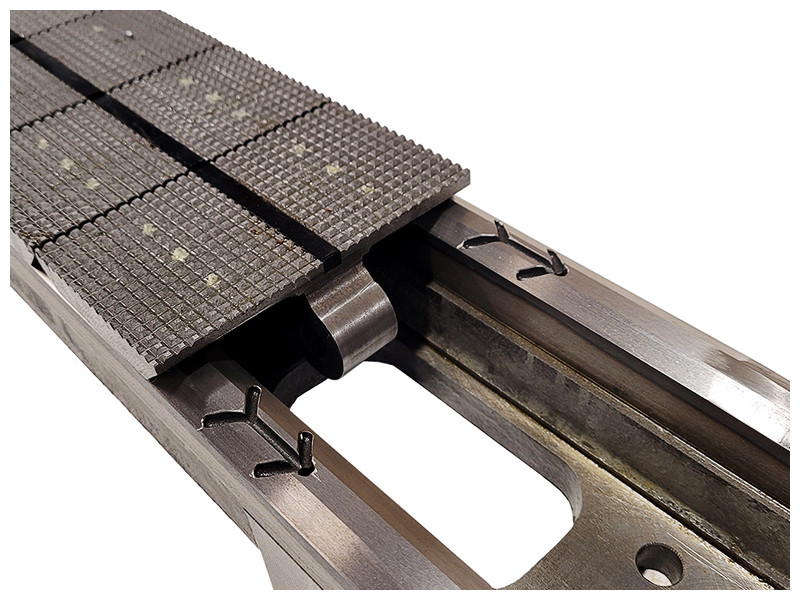

  • Double-V cast iron feed chain The chain pads are made from FC35 high-grade cast iron to ensure long life and optimum precision.
  • CANTEK | C12RSH STRAIGHT LINE GLUE JOINT RIPSAW
  • Eight hold-down rollers over six rows Eight hold-down rollers over six rows ensure the workpiece is held firmly to the chain track during cutting operations. Proper hold down ensures glue line accuracy.
  • Top & bottom anti-kickback fingers Top and bottom anti-kickback fingers for safe operation.
  • Cast Iron Fence Assembly Quick setting rip fence runs on a round cylindrical guide. A ruler scale will indicate the fence position and is quickly set in place using a locking lever. The fence is outfitted with a bearing on the bottom side for ease of travel. Fence is notched to pass over and under the table and top kickback fingers for faster change over
  • Variable feed speed adjustment Operator can conveniently adjust the feed speed of the machine for optimum output and finishing results. The feed speed ranges from 50 to 120 FPM.
  • High-quality Schneider / Telemecanique electrical controls High-quality Schneider electrical components are readily available in the marketplace
  • Precision arbor assembly The precision spindle assembly consists of (3) precision angular contact bearings to eliminate any axial runout. The spindle is precision machined and round and made from nickel-chrome steel for added precision
  • Swing down rear table The swing-down rear table is spring-loaded to guard against material jamming
  • Cast iron chain track (raceway) with double v rails The chain track assembly is also made from FC35 high-grade cast iron and has a double V-pattern to ensure absolute precision straight line cutting. Each rail has oil lubrication points so that constant and consistent lubrication is applied for superior wear resistance
  • CANTEK | C12RSH STRAIGHT LINE GLUE JOINT RIPSAW
  • Eye-level control with emergency stop button and low oil warning light The control panel is located at eye level and is equipped with individual on/off buttons for the saw & feed motors. A low oil indicator light will illuminate when the oil for the feed chain gets low. If it goes beyond the low limit, the machine will shut off until more oil is added. Also equipped with an emergency stop button
  • CANTEK | C12RSH STRAIGHT LINE GLUE JOINT RIPSAW
  • Automatic Mechanical Chain Lubrication Lubricant flow rate can be adjusted automatically with the caterpillar chain feed speed variation. When lubrication runs out, the chain stops automatically, preventing damage to the machine
  • CANTEK | C12RSH STRAIGHT LINE GLUE JOINT RIPSAW

    • CANTEK | C12RSH STRAIGHT LINE GLUE JOINT RIPSAW

    CANTEK

    $21,700.00
    Request A Quote
    (No reviews yet) Write a Review
    SKU:
    CANTEK | C12RSH STRAIGHT LINE GLUE JOINT RIPSAW

    Product Description

    CANTEK | C12RSH STRAIGHT LINE GLUE JOINT RIPSAW

    Save time and speed up production in your glue-up and ripping operations.

    The Cantek C12RSH Straight Line Glue Joint Ripsaw is a single-blade ripsaw geared towards the shop to increase efficiency in their ripping operations but can not justify a multi-blade ripsaw. With its precision cast iron chain and track assembly, and extended pressure section, the C12RSH can produce a glue joint finish ready for panel glue-up right out of the saw.

    Why Cantek C12RSH Straight Line Glue Joint Ripsaw?

    · Produces a guaranteed glue joint finish to 10′, which eliminates the need to joint the material after ripping

    · Precision straight line feeding for parallel and accurate rip cuts

    · Eight hold-down rollers over six rows ensure material is firmly held during cutting operations for a longer period resulting in a straighter, more precise cut.

    · Maintenance-free chain track with the use of a reliable mechanical lubrication system

    Key Advantages

    · Cast iron saw assembly, column, and table with superior vibration damping properties for optimum cutting results while ensuring long bearing and machine life.

    · The rigid machine body consists of a thick welded steel frame.

    · FC35 cast iron chain track with double-V design ensures precision straight-line ripping with a long wear life.

    · Precision Built Saw Arbor constructed of nickel-chrome steel, large diameter, accurately ground and dynamically balanced.

    · Arbor runs in precision angular contact type ball bearings (eliminates any radial runout and axial thrust) – V Belt driven from below.

    · Mechanical operation Chain Oiler provides consistent lubrication to the chain track and automatically adjusts to your feed speed.

    · When the oil runs low, a warning light will come on, and when it gets too low, the machine track stops running to avoid damage to the track.

    · Cast iron rip fence is mounted to a large diameter round guide rail with a quick-locking lever for effortless and accurate adjustment.

    · Top & bottom kickback finger assemblies for added operator safety.

    · Soft start – Star Delta starter reduces the amp draw on startup.

    Cantek C12RSH Straight Line Glue Joint Ripsaw | Specifications



    DESCRIPTION                                                    SPECIFICATION

    Saw arbor diameter                                                      1″

    Saw blade diameter                                                   10 – 12″

    Saw arbor speed                                                     4500 rpm

    Feed Speeds – variable                                          50 to 120 FPM

    Maximum workpiece thickness                          3.34″ (12″ blade)

    Minimum workpiece length                                         14″

    Glue line guarantee                                    10’ (+/- 0.0098” or 0.25mm)

    Distance between saw and column                              18″

    Arbor motor                                                                15 HP

    Feed motor                                                                  1 HP

    Electrical requirement                                     230/3/60 = 46 amps

                                                                            460/3/60 = 23 amps

                                                                           575/3/60 = 18.8 amps

    Table size                                                                 39″ x 57″

    Table height                                                                31-7/8″

    Dust port size                                                       4″ = 600 CFM

    Net weight                                                                 2090 lbs

    Machine dimensions                                            68” x 46” x 62”

    Shipping weight                                                        2530 Lbs

    Shipping dimensions                                           65″ x 55″ x 60″
