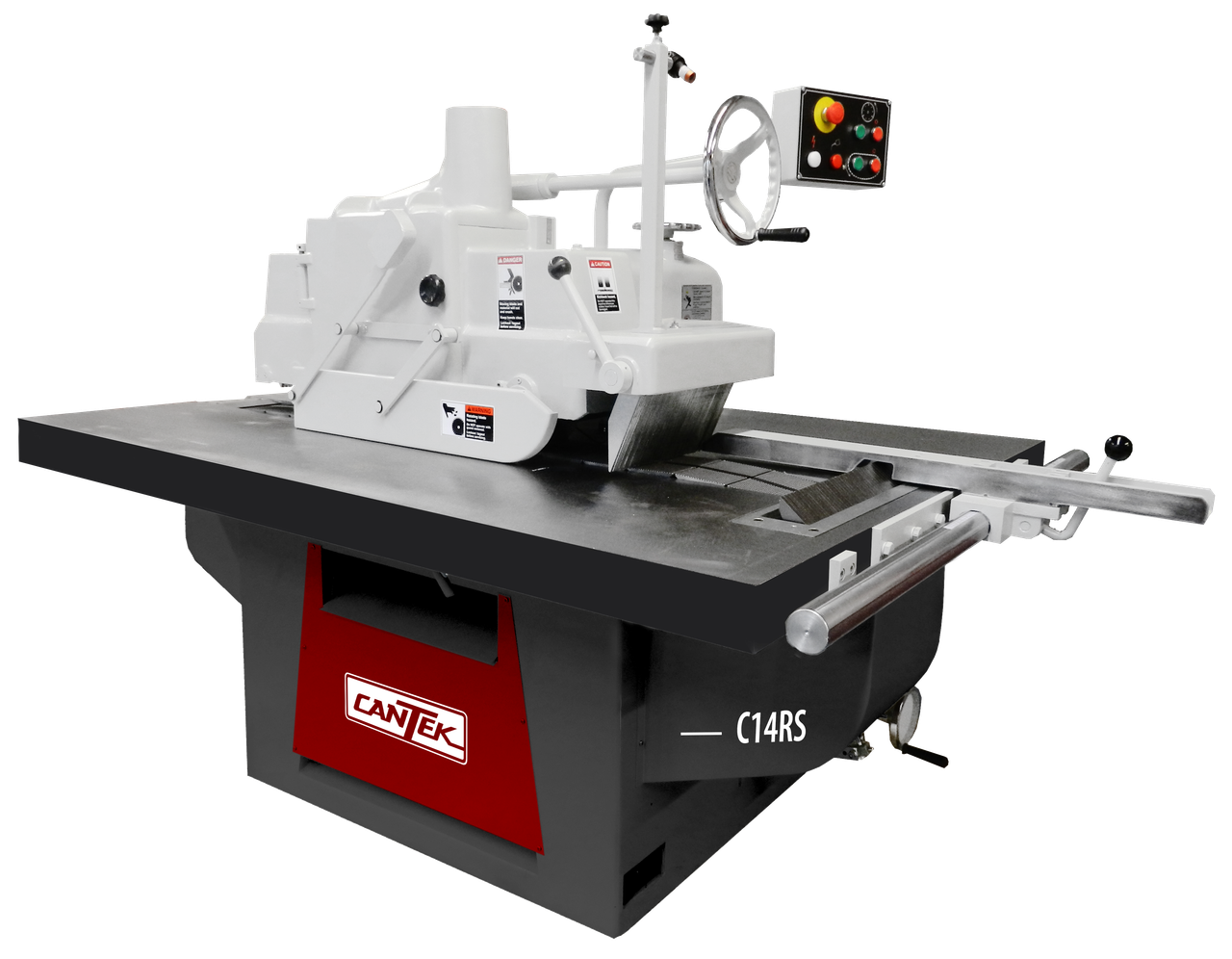

• CANTEK | C14RS STRAIGHT LINE GLUE JOINT RIPSAW
  • Three rows of anti-kickback fingers for added operator safety Top and bottom anti-kickback fingers for safe operation
  • Automatic Mechanical Chain Lubrication Lubricant flow rate can be adjusted automatically with the caterpillar chain feed speed variation. When lubrication runs out, the chain stops automatically, preventing damage to the machine
  • Cast iron chain track (raceway) with double v rails The chain track assembly is also made from FC35 high-grade cast iron and has a double V-pattern to ensure absolute precision straight line cutting. Each rail has oil lubrication points so that constant and consistent lubrication is applied for superior wear resistance
  • Cast Iron Fence Assembly Quick setting rip fence runs on a round cylindrical guide. A ruler scale will indicate the fence position and is quickly set in place using a locking lever. The fence is outfitted with a bearing on the bottom side for ease of travel. Fence is notched to pass over and under the table and top kickback fingers for faster change over
  • Eight hold-down rollers over six rows Eight hold-down rollers over six rows ensure the workpiece is held firmly to the chain track during cutting operations. Proper hold down ensures glue line accuracy.
  • Eye-level control panel The control panel is located at eye level and is equipped with individual on/off buttons for the saw & feed motors. The variable speed feed system is controlled from the control panel via an inverter. A low oil indicator light will illuminate when the oil for the feed chain gets low. If it goes beyond the low limit, the machine will shut off until more oil is added. It is also equipped with an emergency stop button.
  • Machine Construction Heavy-duty cast-iron machine table and saw head assembly with superior vibration damping for optimum cut quality and wear resistance. The table is precision machined to ensure perfect uniformity.
  • Optional laser unit 20 MW laser to project the cutting line to achieve maximum potential yield from your material. A stand is included with the machine. Laser and holder are optional
  • Precision arbor assembly The precision spindle assembly consists of (3) precision angular contact bearings to eliminate any axial runout. The spindle is precision machined and round and made from nickel-chrome steel for added precision.
  • High-quality Schneider / Telemecanique electrical controls High-quality Schneider electrical components are readily available in the marketplace
  • Swing down rear table The swing-down rear table is spring-loaded to guard against material jamming
  • CANTEK | C14RS STRAIGHT LINE GLUE JOINT RIPSAW

    • CANTEK | C14RS STRAIGHT LINE GLUE JOINT RIPSAW

    CANTEK

    $30,800.00
    Request A Quote
    (No reviews yet) Write a Review
    SKU:
    CANTEK | C14RS STRAIGHT LINE GLUE JOINT RIPSAW

    Product Description

    CANTEK | C14RS STRAIGHT LINE GLUE JOINT RIPSAW

    Large capacity glue line ripsaw with precision straight line results.

    The Cantek C14RS Straight Line Glue Joint Ripsaw is a single-blade ripsaw geared towards the shop to increase efficiency in their ripping operations but cannot justify a multi-blade ripsaw. With its precision cast iron chain and track assembly, and extended pressure section, the C14RS can produce a glue joint finish ready for panel glue-up right out of the saw.

    Why Cantek C14RS Straight Line Glue Joint Ripsaw?

    · Produces a guaranteed glue joint finish to 15′, eliminating the need to joint the material after ripping.

    · Precision straight line feeding for parallel and accurate rip cuts.

    · Eight hold-down rollers over six rows ensure material is firmly held during cutting operations for a longer period resulting in a straighter, more precise cut.

    · Powerful 20HP saw motor for even the most demanding rip applications.

    · Maintenance-free chain track with the use of a reliable mechanical lubrication system.

    · Variable feed speed by frequency inverter for optimum cutting results.

    Key Advantages

    · Cast iron saw assembly, column, and table with superior vibration damping properties for optimum cutting results while ensuring long bearing and machine life.

    · Very rigid machine body with a welded steel frame.

    · Absolute straight line feeding with glue joint to 15 ft.

    · FC35 cast iron chain track with double-V design ensures precision straight-line ripping with a long wear life.

    · Precision Built Saw Arbor constructed of nickel-chrome steel, large diameter, accurately ground and dynamically balanced.

    · Arbor runs in precision angular contact type ball bearings (eliminates any radial runout & axial thrust) – V Belt driven from below.

    · Mechanical operation chain oiler provides consistent lubrication to the chain track and automatically adjusts to your feed speed.

    · When oil runs low, a warning light will come on, and when it gets too low, the machine track stops running to avoid damage to the track.

    · Cast iron rip fence is mounted to a large diameter round guide rail with a quick-locking lever for effortless and accurate adjustment.

    · 3 sets of anti-kickback fingers: 2 top and 1 set in the table for added operator safety.

    · Soft start – Star Delta starter reduces the amp draw on startup.

    · Optional laser light to project the cutting line to achieve maximum material yield.



    Cantek C14RS Straight Line Glue Joint Ripsaw | Specifications



    DESCRIPTION                                             METRIC                                             INCH

    Saw blade diameter                                  12″ ~ 15″                                    300 ~ 380mm

    Saw arbor diameter                                                                  1.5″

    Saw arbor speed                                                                   3500 RPM

    Feed speeds variable                               33 ~ 98 FPM                                   10 ~ 30 m/min

    Max. cutting thickness: 12″ blade               3.35″                                              85mm

    Max. cutting thickness: 13″ blade                3.94″                                             100mm

    Max. cutting thickness: 14″ blade               4.33″                                              110mm

    Max. cutting thickness: 15″ blade               4.92″                                              125mm

    Minimum workpiece length                           8″                                                 200mm

    Distance between saw and column              24″                                                609mm

    Arbor motor                                                                         20 HP

    Feed motor                                                                           2 HP

    Table size                                                50″ x 75″                                        1270 x 1905mm

    Table height                                                31.5″                                                800mm

    Dust port size                                        5″ = 600 CFM                                   125mm = 600 CFM

    Net weight                                               3410 lbs                                             1550 kgs

    Machine dimensions                             89″ x 57″ x 57″                            2269 x 1448x 1449mm

    Shipping weight                                        3960 lbs                                            1800 kgs

    Shipping dimensions                             83″ x 63″ x 67″                           2108 x 1600 x 1702mm

    Electrical requirements                                             230/3/60 = 60.8 amps

                                                                                     460/3/60 = 30.4 amps

                                                                                     575/3/60 = 24.1 amps
