Product Overview
It is time to clear the air and upgrade your dust system to the next level!
Cantek cyclone dust collectors excel at efficiently removing both coarse and fine wood dust particles from your machinery. As dust is drawn into the system by a high-efficiency fan, it enters a cylindrical chamber where it circulates in a cyclonic pattern. Heavier coarse chips settle into a collection bin below, while fine dust proceeds through a HEPA filter. This meticulous filtration process ensures that only clean air is reintroduced into your workspace, promoting a healthier, dust-free environment for optimal productivity and breathable air.
Why Cantek CBS10 10HP Cyclone Dust Collector?
· Powerful 10HP blower motor generating 4030 CFM
· The 2-stage cyclone design separates coarse dust from fine with the fine dust passing through a HEPA filter before the air is returned to the shop ensuring optimal air quality
· Remote control on/off for added operator convenience
· Auto cleaning device for HEPA filter cleans every hour for 10 seconds
· Heavy-duty steel frame construction
Key Advantages
· Convenient quick release connection for removing the coarse dust bin which is outfitted with casters
· Bin is lined with plastic bag for simple and clean removal of dust
· HEPA filter is equipped with an automatic
· HEPA Filter is equipped with a quick release system to remove and dispose of fine dust particles
· Equipped with magnetic switch
· Fast and simple machine assembly

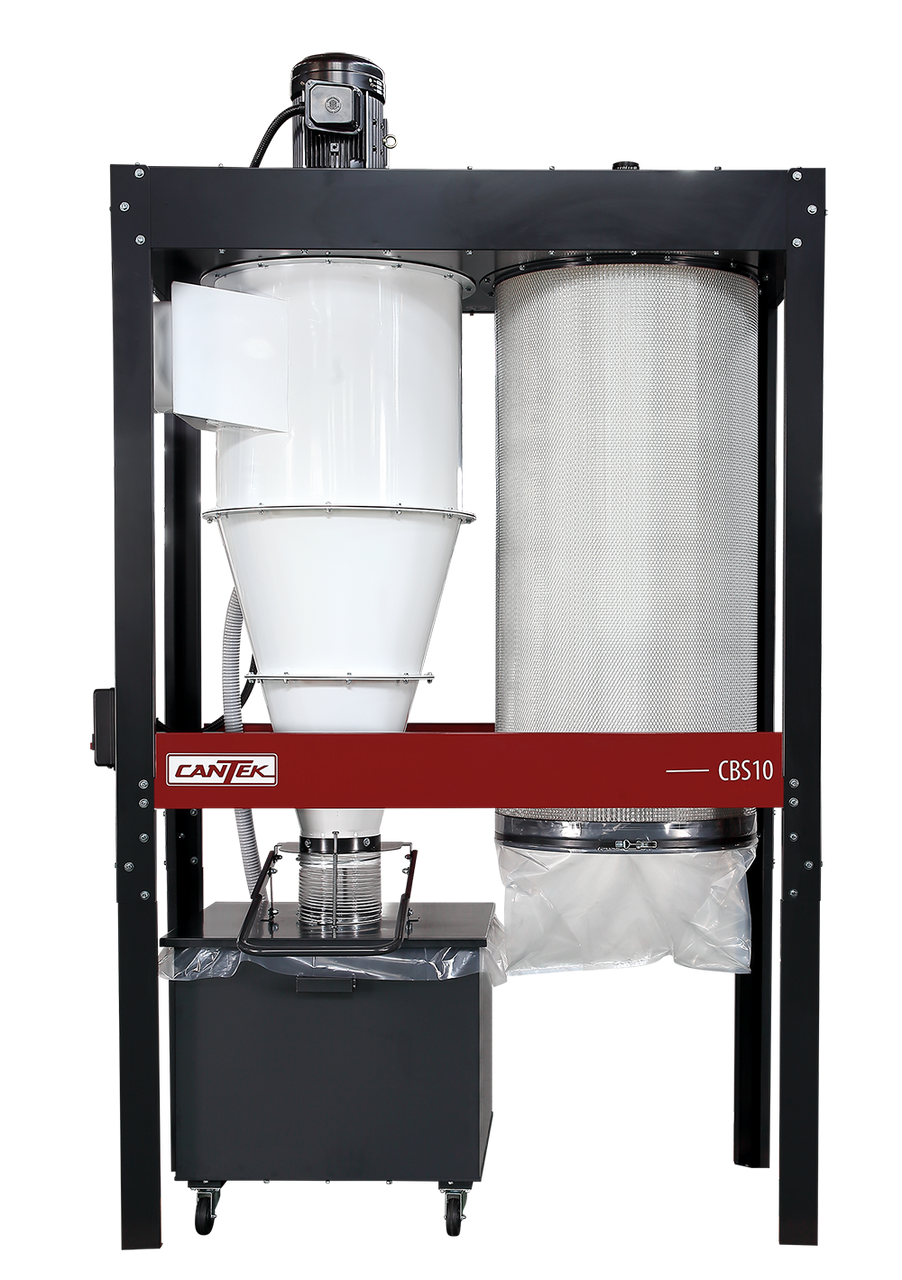

Cantek CBS10 10HP Cyclone Dust Collector | Specifications
DESCRIPTION INCH METRIC
Blower motor 10 HP
CFM Capacity 4030 CFM
Fan diameter 18.5” 400mm
Dust port dimensions 12” 300mm
Auto-cleaning motor 0.03 HP 25 Watts
HEPA filer size 29.5” x 59” 750 x 1500mm
Dust drum capacity 115 gallons 435 litres
Sound rating 82~85 dB
Machine electrics 230/3/60 (29 amps)
Machine dimensions 78.4” x 37” x 127.5” 1990 x 942 x 3238mm
Machine weight 1276 lbs 580 kgs
Shipping dimensions 77” x 40 ½” x 102” 1950 x 1030 x 2590mm
Shipping weight 1617 lbs 735 kgs
