Product Description
It is time to clear the air and upgrade your dust system to the next level!
Cantek cyclone dust collectors excel at efficiently removing both coarse and fine wood dust particles from your machinery. As dust is drawn into the system by a high-efficiency fan, it enters a cylindrical chamber where it circulates in a cyclonic pattern. Heavier coarse chips settle into a collection bin below, while fine dust proceeds through a HEPA filter. This meticulous filtration process ensures that only clean air is reintroduced into your workspace, promoting a healthier, dust-free environment for optimal productivity and breathable air.

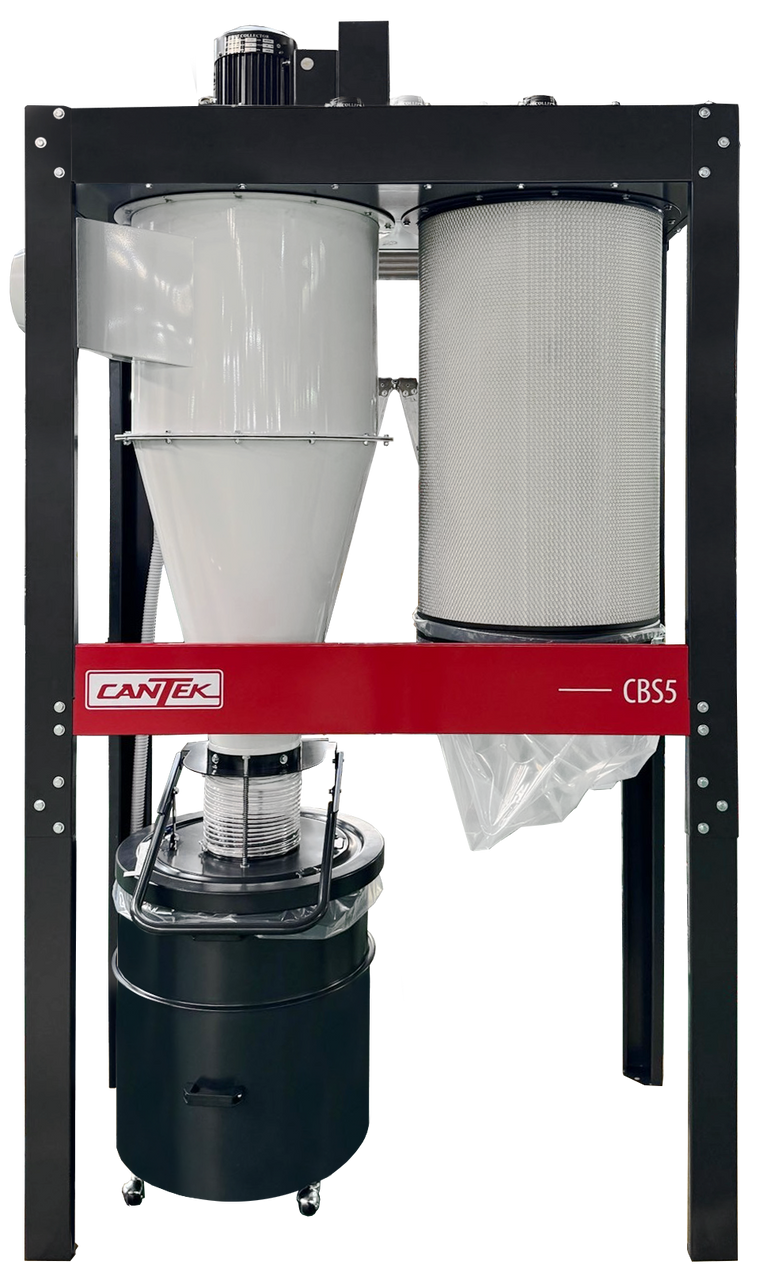

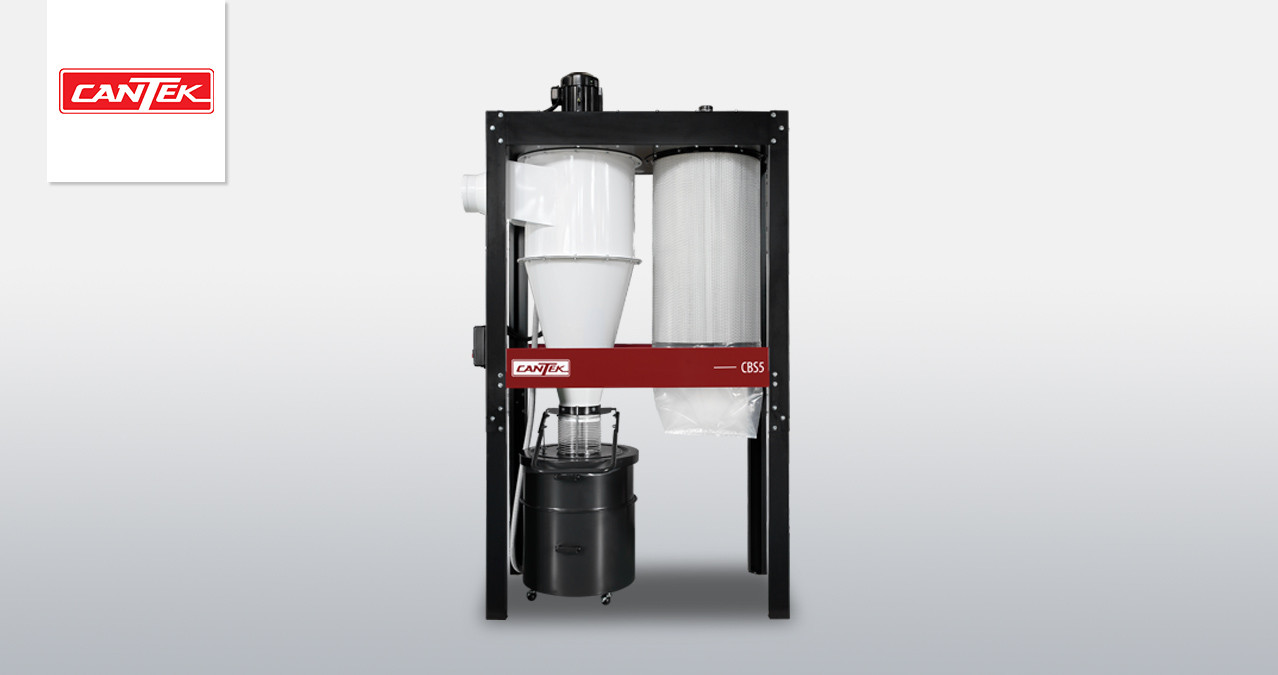

Why Cantek CBS5 5HP Cyclone Dust Collector?
· Powerful 5HP blower motor generating 2450 CFM
· The 2-stage cyclone design separates coarse dust from fine with the fine dust passing through a HEPA filter before the air is returned to the shop ensuring optimal air quality
· Remote control on/off for added operator convenience
· Auto cleaning device for HEPA filter cleans every hour for 10 seconds
· Heavy-duty steel frame construction
Key Advantages
· Convenient quick release connection for removing the coarse dust bin which is outfitted with casters
· Bin is lined with plastic bag for simple and clean removal of dust
· HEPA filter is equipped with an automatic
· HEPA Filter is equipped with a quick release system to remove and dispose of fine dust particles
· Equipped with magnetic switch
· Fast and simple machine assembly
Cantek CBS5 5HP Cyclone Dust Collector | Specifications
DESCRIPTION INCH METRIC
Blower motor 5 HP
CFM Capacity 2450 CFM
Fan diameter 16” 400mm
Dust port dimensions Main Inlet = 10” Reducer = 8” Main Inlet = 250mm Reducer = 200mm
Auto-cleaning motor 0.03 HP 25 Watts
HEPA filer size 23.6” x 38.4” 600 x 1000mm
Dust drum capacity 50 gallons 189 litres
Sound rating 78~81 dB
Machine electrics 230/3/60 (16 amps)
Machine dimensions 65.4” x 31.5” x 112” 1661 x 800 x 2846mm
Machine weight 607 lbs 276 kgs
Shipping dimensions 64 ¼” x 36” x 81 ½” 1630 x 910 x 2070mm
Shipping weight 786 lbs 357 kgs
