CANTEK | D405A SLIDING TABLE SAW
Powered up and down blade and tilt to make it easier.
The Cantek D405A Sliding Table Saw is the ideal sliding panel saw for high accuracy cutting of sheet materials to produce kitchen cabinetry, furniture, millwork operations, and more. This is our most industrial saw with a manual setting rip fence. The 10' sliding table is made from a precision aluminum extrusion and runs on precision linear guide rails. It has motorized rise/fall and tilt of the blades.
Why Cantek D405A Sliding Table Saw?
· Motorized blade height & tilt adjustment with a digital angle readout
· Precision sliding table runs on hardened linear guides for extremely smooth and effortless movement
· Powerful 7.5 HP main motor and separate 1HP scoring motor
· Ergonomic eye-level control panel for adjusting the blade height, and blade angle along with on/off switches for the main and scoring motors
· Accurate crosscut miter fence for fast length and angle setting
Key Advantages
· Motorized blade rise/fall
· Motorized blade tilting with electronic angle display on control panel
· Overhead control panel can be adjusted for operator convenience
· Convenient external manual scoring adjustment
· Powerful 7.5 HP main motor with separate 1HP scoring motor
· (3) saw blade speeds for optimum cutting results in various materials

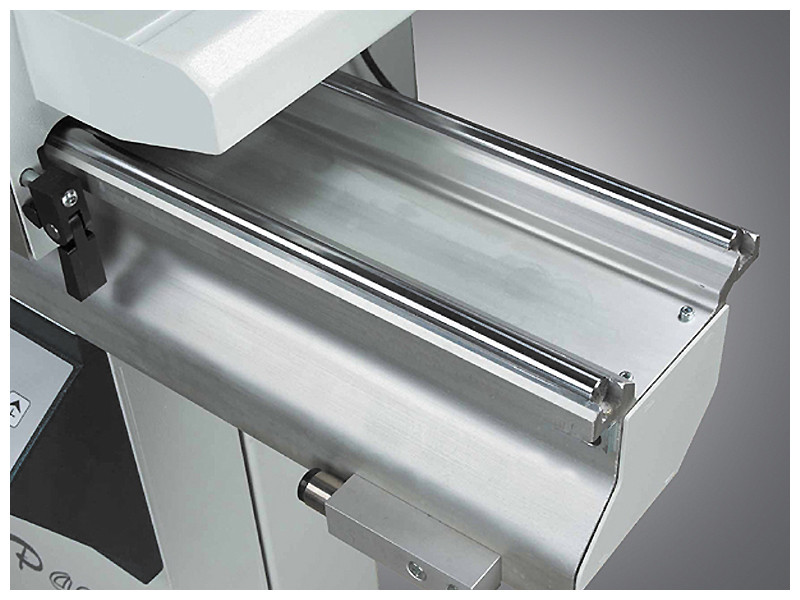

· Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides
· Aluminum extruded crosscut fence with (2) flip stops with convenient angle adjustment for mitre cuts
· Solid cast iron main table which is ground and polished
· Heavy-duty outrigger for strong support of workpiece during cutting operations
· Overhead CE blade guard with dust port
· Complete with eccentric clamp and wedge for solid wood cutting
· Comes with a set of sawblades: (1) 14” (355mm) diameter main blade; (1) scoring blade
Cantek D405A Sliding Table Saw | Specifications
DESCRIPTION METRIC INCH
Sliding table dimensions 3200 x 395mm 126 x 15.5″
Cast iron table dimensions 548 x 896mm 21.6″ x 35.3″
Extension table (rear) 952 x 896mm 38.7″ x 35.25″
Extension table (front) 830 x 320mm 32.7″ x 12.6″
Main saw blade (Max.) 400mm 16″
Main saw bore dia. 30mm
Max. cutting height @ 90o (355mm) 105mm 4.13″
Max. cutting height @ 90o (400mm) 130mm 5.12″
Max. cutting height @ 45o (355mm) 70mm 2.75″
Main motor power 7.5 HP
Main blade speed 3000 / 4000 / 5000 RPM
Scoring blade dia. 120mm
Scoring blade bore dia. 20mm
Scoring blade motor power 1 HP
Scoring blade speed 8000 RPM
Max. rip cutting width 1300mm 51″
Cutting width adjustment Manual
Saw height adjustment Motorized
Saw blade tilting adjustment 0~45 degrees (Motorized)
Scoring saw adjustment Manual
Dust collection outlets 120 / 60mm = 825 CFM 4.72″ / 2.4” = 825 CFM
Machine shipping dimensions 2110 x 1150 x 1120mm 83″ x 45.25″ x 44″
Machine NW / GW 575 / 666 kgs 1265 / 1465 lbs
Sliding table shipping dimensions 3480 x 490 x 370mm 137″ x 19.3″ x 14.6″
Sliding table NW / GW 141 / 173 kgs 310 / 381 lbs
Machine total weight NW / GW 740 / 874 kgs 1628 / 1923 lbs
Electrics 230/3/60 = 26.20 amps
575/3/60 = 10.3 amps
