• CANTEK | D405ANC 12-AXIS SLIDING TABLE SAW
  • CE Overarm Dust Collection & Safety Guard The overarm blade guard comes with a build-in dust extraction port. It comes equipped with a quick-change guard system where the operator can choose the straight guard or bubble guard for bevel cutting. The arm is hinged so that the guard can be moved out of the way for servicing the machine or blades.
  • CNC Rip Fence with 51″ (1300mm) Rip Capacity Precision CNC rip fence runs on a linear guide rail and is positioned by servo motor and recirculating ball screw. The CNC fence provides the operator with precision setting and high repeatability every time. This saves time as the operator does not need to walk around the sliding table to set the rip fence each time. The operator can position the aluminum fence as desired and set it flat for tight bevel cuts with automatic width compensation in the control.

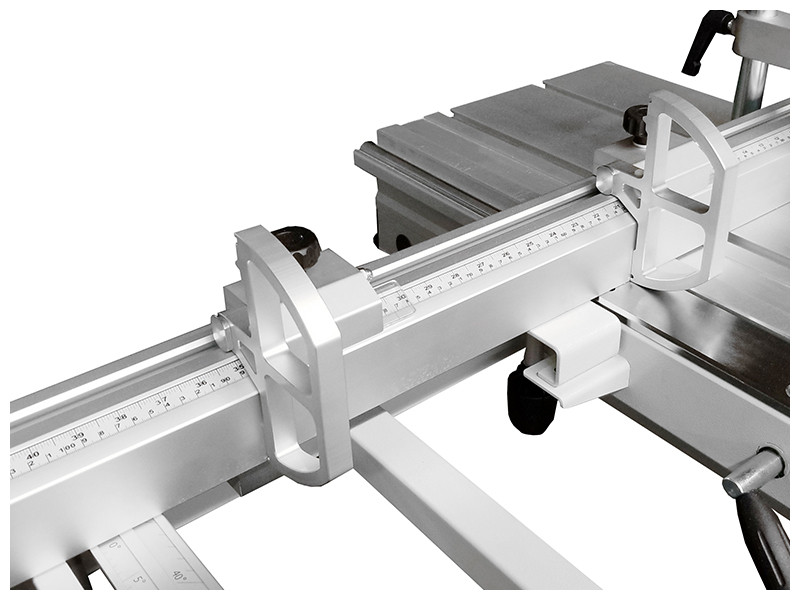

  • Miter Crosscut Fence with Flip Stops The miter crosscut fence can be easily set from a positive stop of 90o to 45o with an angle scale. The two clip stops can be accurately set in place along the crosscut fence with dual inch / metric scales. The crosscut fence can be extended to 140" / 3500mm. This is all supported by a heavy-duty outrigger and support arm.
  • CANTEK | D405ANC 12-AXIS SLIDING TABLE SAW
  • Eye-Level Control Panel & Clipboard Ergonomic eye-level control panel for setting the rip width, blade height, and blade angle along with on/off switches for the main and scoring motors. Rip fence programmable to 0.001” / 0.1mm. Clipboard allows the operator to display their cutting list right where it will be programmed
  • Crosscut Fence with Digital Readouts Complete crosscut fence with (2) two digital readouts for length measurement. Scale in inch or metric. Highly accurate system using a magnetic strip to measure the position of each stop
  • Digital Angle Readout for Crosscut Fence Digital display for the angle of the crosscut fence using a magnetic strip to provide a highly accurate angle position.

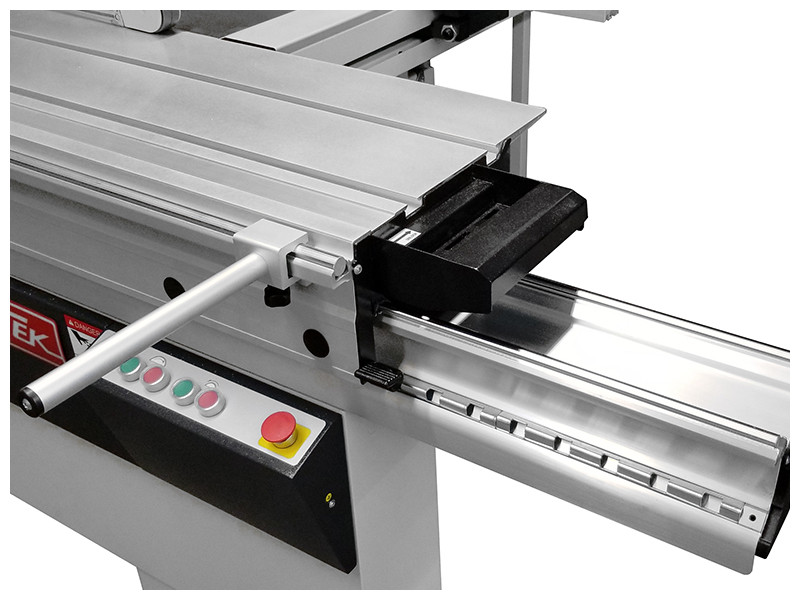

  • Precision Anodized Aluminum Sliding Table The sliding table on the D405ANC is easily moved as it runs on precision hardened upper and lower linear guide rails. The chrome rollers, in conjunction with the hardened rails, are highly wear-resistant. The table can be locked in multiple positions to facilitate the loading of each panel. It comes equipped with a return handle for setting the table back to the ready position.
  • Scoring Lateral & Height Adjustment Equipped with two scoring adjustment knobs to accurately set and lock the position of the scoring blade. One is for lateral adjustment, and one is for height adjustment. The adjustment knobs are conveniently located under the rip fence. No special tools are required.

    • CANTEK | D405ANC 12-AXIS SLIDING TABLE SAW

    CANTEK

    $19,200.00
    Request A Quote
    (No reviews yet) Write a Review
    SKU:
    CANTEK | D405ANC 12-AXIS SLIDING TABLE SAW

    Product Description

    CANTEK | D405ANC 12-AXIS SLIDING TABLE SAW



    Stop walking around your saw with the programmable rip fence.

    The Cantek D405ANC 12-Axis Sliding Table Saw is the ideal sliding panel saw for high accuracy cutting of sheet materials for kitchen cabinetry, furniture, millwork operations, etc. The NC rip fence provides the operator with the added convenience of automatically setting the rip width through eye-level control. This saves time while providing a high level of accuracy and repeatability. The 12' sliding table is made from a precision aluminum extrusion and runs on precision linear guide rails..

    Why Cantek D405ANC 12-Axis Sliding Table Saw?

    · Programmable rip fence saves time and provides a high level of accuracy and repeatability.

    · Precision sliding table runs on hardened linear guides for extremely smooth and effortless movement.

    · Powerful 7.5 HP main motor and separate 1HP scoring motor.

    · Accurate crosscut miter fence for fast length and angle setting.

    · Ergonomic eye-level control panel for setting the rip width, blade height, and blade angle along with on/off switches for the main and scoring motors.

    Key Advantages

    · Programmable rip fence with a maximum cutting width of 51″ by means of a precision ball screw.

    · Motorized blade rise/fall.

    · Motorized blade tilting with electronic angle display on control panel.

    · Overhead control panel can be adjusted for operator convenience.

    · Convenient external manual scoring adjustment.

    · 7.5 HP main motor with 1HP scoring motor.

    · (3) saw blade speeds for optimum cutting results in various materials.

    · Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides.

    · Aluminum extruded crosscut fence with (2) flip stops with convenient angle adjustment for miter cuts.

    · Solid cast iron main table, which is ground and polished.

    · Heavy-duty outrigger for strong support of workpiece during cutting operations.

    · Overhead CE blade guard with dust port.

    · Complete with eccentric clamp and wedge for solid wood cutting.



    Cantek D405ANC 12-Axis Sliding Table Saw | Specifications



    DESCRIPTION                                        METRIC                                          INCH

    Sliding table dimensions                 3800 x 395mm                                 149 x 15.5"

    Cast iron table dimensions              548 x 896mm                                 21.6″ x 35.3″

    Extension table (rear)                     952 x 896mm                                38.7″ x 35.25″

    Extension table (front)                   830 x 320mm                                  32.7″ x 12.6″

    Table size                                      1500 x 1726mm                                   59″ x 68″

    Main saw blade (Max.)                       400mm                                               16″

    Max. cutting height @ 90o (355mm) 105mm                                              4.13″

    Max. cutting height @ 45o (355mm)  70mm                                               2.75″

    Dust collection outlets                   120 / 100mm                                      4.72″ x 4″

    Max. rip cutting width                      1300mm                                                51″

    Main saw bore dia.                                                              30mm

    Main motor power                                                             7.5 HP

    Main blade speed                                                  3000 / 4000 / 5000 RPM

    Scoring blade dia.                                                             120mm

    Scoring blade bore dia.                                                      20mm

    Scoring blade motor power                                                1 HP

    Scoring blade speed                                                          8000 RPM

    Cutting width adjustment                                                Motorized

    Saw blade tilting adjustment                           0 Degrees ~45 Degrees (Motorized)

    Scoring saw adjustment                                                    Manual

    Electrical requirement                                           230/3/60 =26.20 amps

                                                                                   575/3/60 = 10.3 amps

    Machine shipping dimensions     2110 x 1150 x 1120mm                           83″ x 45.25″ x 44″

    Machine NW / GW                558 / 649 kgs                                 1228 / 1428 lbs

    Sliding table shipping dimensions 3800 x 490 x 370mm                     149" x 19.3" x 14.6"

    Sliding table NW / GW          141 / 173 kgs                                  310 / 381 lbs

    Rip fence shipping dimensions 1860 x 320 x 330mm                          73.25″ x 12.6″ x 13″

    Rip Fence NW / GW                  41 / 52 kgs                                           90 / 115 lbs

    Machine total weight NW / GW 740 / 874 kgs                                    1628 / 1923 lbs
