Product Overview

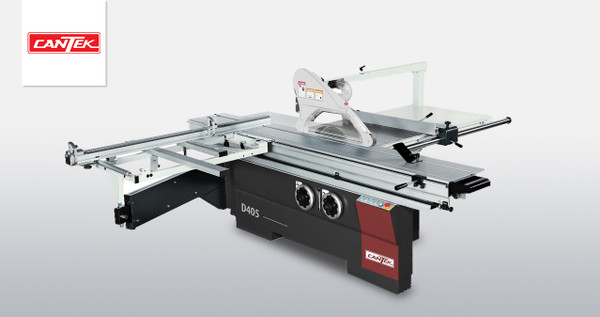

CANTEK | D405M-10 10′ SLIDING TABLE SAW
Industrial manually operated sliding table saw.
The Cantek D405M-10 10′ Sliding Table Saw is the ideal panel cutting solution for kitchen cabinet shops, millwork companies, and furniture shops that need a precision saw but only require manual adjustments. The D405M-10 combines heavy-duty construction with a cast iron main table, cast iron saw carriage, and precision sliding table resulting in precise panel sizing with high accuracy and repeatability time after time. The double roller sliding table runs effortlessly and smoothly, and the crosscut miter fence can be easily and accurately adjusted for optimum results.
Why Cantek D405M-10 10′ Sliding Table Saw?

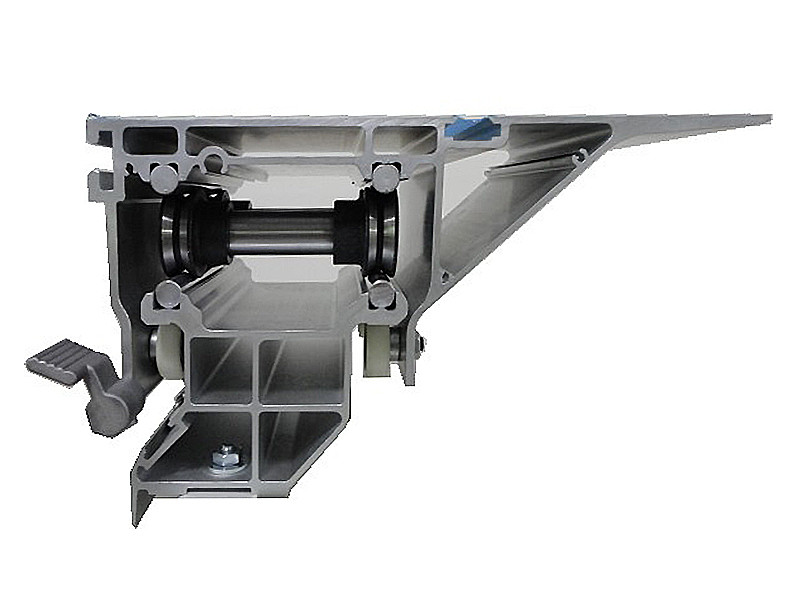

· Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides for smooth and effortless table movement.
· Crosscut miter fence with (2) flip stops for accurate panel sizing and angular cuts.
· Manual blade rise, fall, and tilting with a convenient pointer for blade angle display.
· Heavy-duty rip fence runs on round cylindrical solid steel guide with manual adjustment and micro-adjustment knob.
· Overarm safety guard with a quick-change system for changing between straight and bevel cutting guards
Key Advantages
· Powerful 7 ½ HP main motor for 3 Phase or 5 HP main motor for Single Phase, with separate 1 HP scoring motor.
· Manual saw blade rise/fall & tilting, conveniently located on the operator side of the machine.
· Heavy-duty outrigger for strong support of workpiece during cutting operations.
· Dual inch and metric scales for both rip and crosscut fences.
· Manual lateral and vertical scoring adjustment by externally mounted handles for operator convenience.

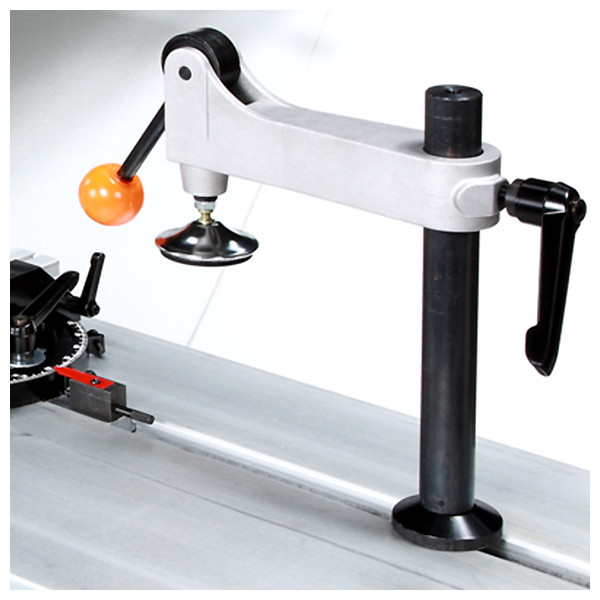

· Eccentric hold-down clamp, table return handle, and wedge for solid wood ripping included.

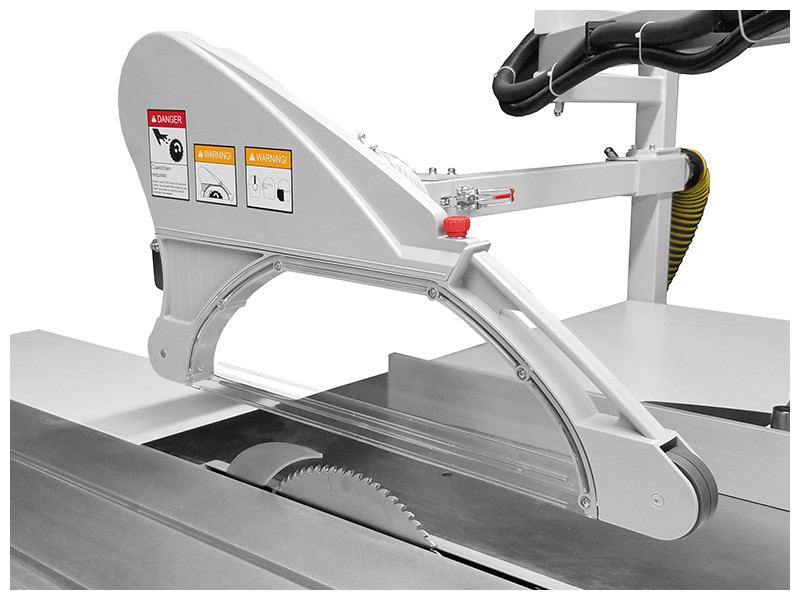

· Overhead saw blade guard with built-in dust port included (CE-type).
· Comes with a set of sawblades: (1) 14” (355mm) diameter main blade; (1) scoring blade
Cantek D405M-10 10′ Sliding Table Saw | Specifications
DESCRIPTION INCH METRIC
Sliding table dimension 126″ x 14.9″ 3200 x 378 mm
Cast iron table 21.6″ x 35.3″ 548 x 896 mm
Extension table (rear) 37.5″ x 35.3″ 952 x 896 mm
Extension table (front) 12.6″ x 32.7″ 320x 830 mm
Table size 59″ x 68″ 1500 x 1726 mm
Round rail 1.97″ 50mm
Maximum main saw blade dia. 16″ 400 mm (16″)
Main saw bore 30mm
Max. cutting height at 90° (355mm) 4.13″ 105 mm
Max. cutting height at 45° (355mm) 2.76″ 70mm
Main motor power 7.5 HP (3ph) / 5HP (1ph) 5.5 kW (3ph) /3.7 kW (1ph)
Main blade speed (3) 3000/4000/5000 RPM
Scoring saw blade 120 mm
Scoring saw blade bore 20mm
Scoring blade motor power 1 HP 0.75 kW
Scoring blade speed 8000 RPM
Cutting width 51.2″ 1300 mm
Cutting width adjustment Manual
Main saw blade tilting adjustment Manual (0°~45°)
Main saw height adjustment Manual
Scoring saw adjustment Manual
Dust ports (machine / guard) 120 / 60mm = 825 CFM 4.72″ / 2.4” = 825 CFM
Machine total weight 1612 lbs. 733 kgs
Machine shipping details 1428 lbs (83″x46″x44″) 649 kgs (2110x1150x1120mm)
Sliding table shipping details 380 lbs (137″x20″x15″) 173 kgs (3480x490x370mm)
Overhead guard shipping details 80 lbs (40″x36″x6″) 36 kgs (1000x900x140mm)
Electrics 230/3/60 = 26.2 amps
230/1/60 = 36 amps
575/3/60 = 10.3 amps
