Product Description
It is time to clear the air and upgrade your dust system to the next level!

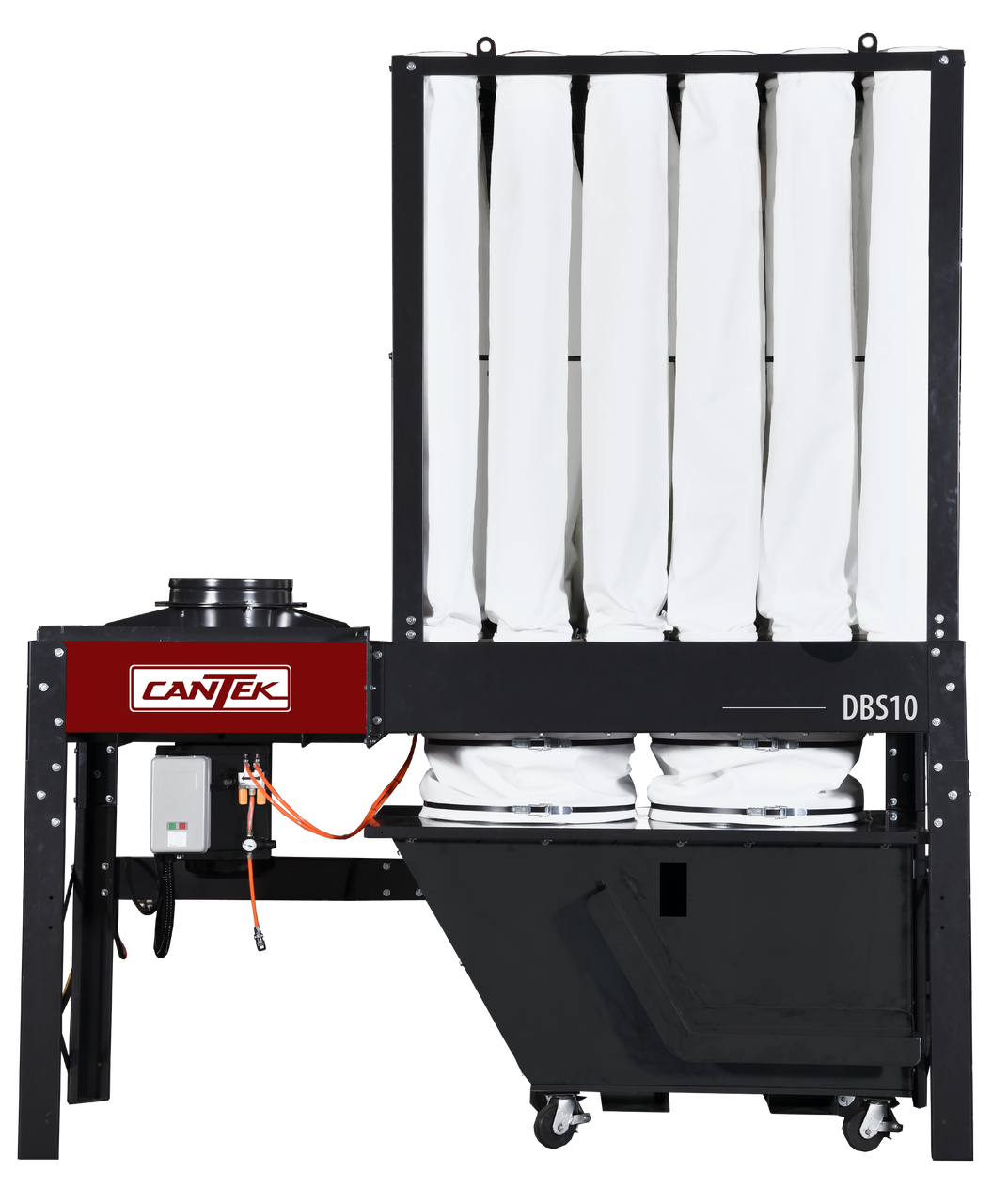

The DBS series are high efficiency indoor dust collectors generating up to 5000 CFM and are available in 10HP or 15HP. Equipped with a low RPM (1750 RPM) blower is designed to run much quieter than other high RPM units. The 1-micron filter bags ensure optimum air filtration and can be manually shaken to for cleaning. The large 168-gallon self dumping collection bin comes on casters and can be conveniently lifted by a fork lift and tilted to dump the wood waste in to your larger waste bin. A pneumatic lever is used to lift the sleeves connecting the system to the dump bin which saves time and effort.
Why Cantek DBS10 Dust Collector?
· 10 HP blower motor generating 5000 CFM @ 8” WC
· Low RPM blower (1750 RPM) generating only 80 dB
· Convenient self-dumping bin with 168-gallon capacity
· Compact design is ideal for a small to mid sized shop looking for a stand alone or a larger shop looking to add a secondary dust system.
Key Advantages
· High efficiency 10HP TEFC motor
· Heavy gauge steel construction for long durability
· Self dumping bin allows operator to quickly, safely, and conveniently dispose of wood waste
· 14” main inlet diameter
· Pneumatic raising / lowering of dust sleeves to connect system with dump bin for added convenience
· High efficiency 1-micron filter bags (24 pcs)
· Manual shaker system for cleaning of filter bags
· Magnetic starter included
· Dust collector comes disassembled
Cantek DBS10 Dust Collector | Specifications
DESCRIPTION INCH
Blower motor 10 HP
CFM Capacity 5000 CFM @ 7.9” WC
Filter information 1 Micron Filter Bags: 8” dia. x 63” long x 24 pcs
Filtration surface (sq.ft) 263 sq. ft
Inlet diameter 14”
Sound rating (Decibel) 80 dB
Disposal capacity 168 gallons
Machine dimensions (LxWxH) 102” x 42.5” x 122”
Shipping dimensions Blower = 46” x 40” x 37” @ 616 lbs
Frame / Bin / Accessories = 69” x 46” x 49” @ 880 lbs
Electrical information 230/3/60 @ 28 amps
