• CANTEK | DC30 3-ROLL VARIABLE SPEED POWER FEEDER
  • 2/3 HP DC Brushless Servo Motor A powerful 2/3 HP servo motor produces the same torque as a 1HP AC motor while consuming 50% of the power. The speed is infinitely variable and is adjusted by a knob on the feeder unit with a digital display for the feed speed. The variable speed system lets you dial in the optimum speed for superior results without the need to change sprockets and gears.
  • SG13 Universal Stand The Universal Stand allows for virtually unlimited positional settings of the feeder's head for horizontal, angled, or vertical feeding. Equipped with a crank handle for raising and lowering the feeder unit allowing for fast set up according to your material. The various quick-locking levers ensure the feeders stay in position but allow for quick changeovers if required.

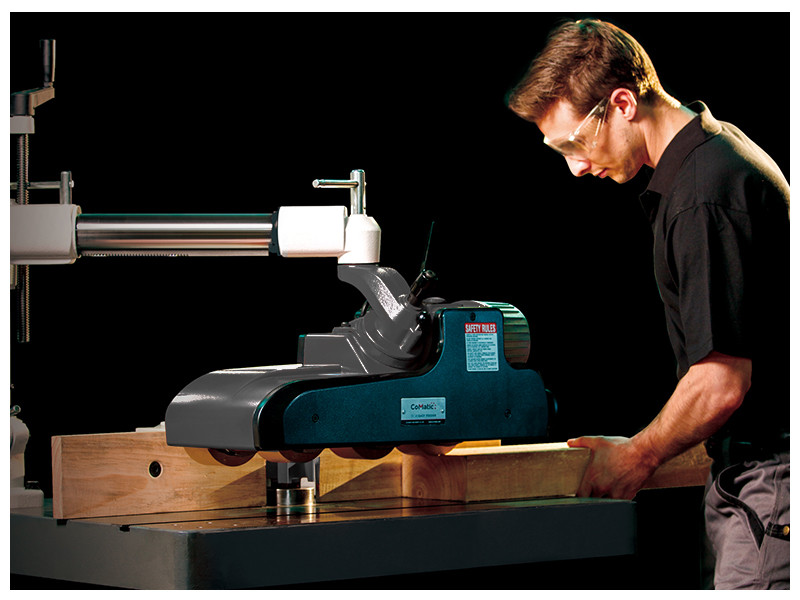

  • Convenient hands-free operation The DC feeders ensure consistent material feeding on a wide range of woodworking machines, resulting in optimum quality of the end product. The feeder setup allows the operator's hands to remain away from the cutting tool resulting in a safer operation.
  • Range of wheels available As standard, the feeder comes with (3) 120 x 60mm rubber feed wheels which are easily replaceable when they wear. In addition, you can purchase 120 x 25mm wheels to allow for clearance of sawblades or cutterheads.
  • CANTEK | DC30 3-ROLL VARIABLE SPEED POWER FEEDER
  • CANTEK | DC30 3-ROLL VARIABLE SPEED POWER FEEDER

    • CANTEK | DC30 3-ROLL VARIABLE SPEED POWER FEEDER

    CANTEK

    $1,700.00
    Request A Quote
    (No reviews yet) Write a Review
    SKU:
    CANTEK | DC30 3-ROLL VARIABLE SPEED POWER FEEDER

    Product Description

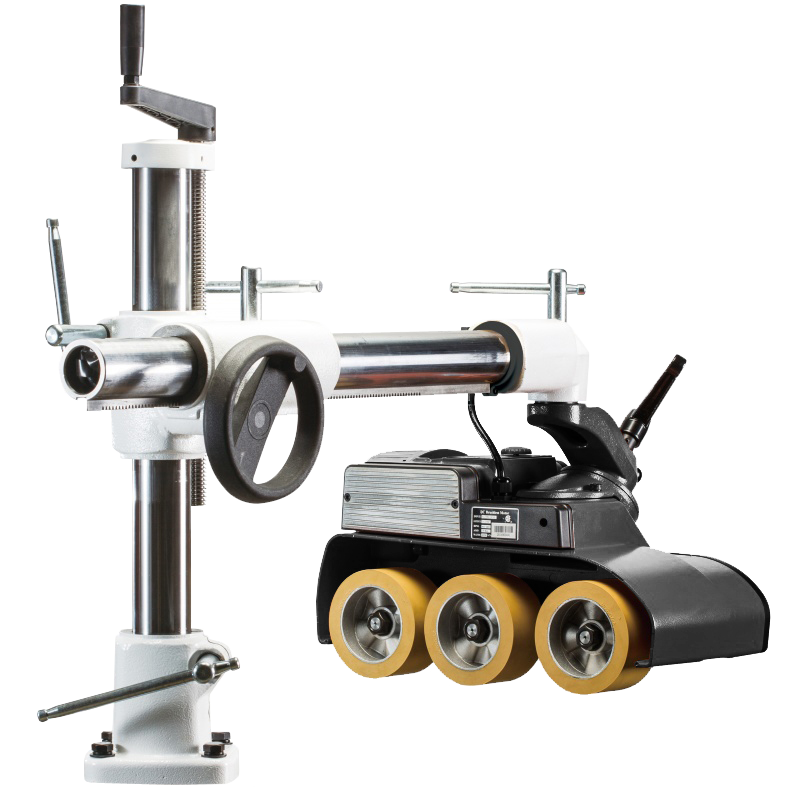

    CANTEK | DC30 3-ROLL VARIABLE SPEED POWER FEEDER

    Consistent, safe, and powerful power feeder with the right speed for your job.

    The Cantek DC30 3-Roll Variable Speed Power Feeder is a safe and powerful feeding unit for shapers, table saws, and more. The rubber feed wheels grip the workpiece firmly and feed it at a constant speed to produce flawlessly finished pieces. The DC brushless servo motor with electronic variable speed adjustment allows the operator to set the optimum feed speed according to the specific job. The universal stand allows for quick positional adjustment from horizontal to vertical positioning and everything in between.

    Why Cantek DC30 3-Roll Variable Speed Power Feeder?

    · High-efficiency DC brushless servo motor.

    · High efficiency = more power, more torque.

    · Saves +50% power output over other feeders of the same size.

    · Electronic variable feed speed adjustment for optimum cut quality.

    Key Advantages

    · 2/3 HP DC Brushless Servo Motor with electronic speed display.

    · US13 heavy-duty universal stand for fast setup.

    · (3) rubber feed rollers.

    · Variable speed 2-22 M/min (7-72 FPM).

    · Forward/reverse feed.

    · Optional Dual Rollers for saw or cutter clearance.

    Cantek DC30 3-Roll Variable Speed Power Feeder | Specifications



    DESCRIPTION                             METRIC                                 INCH

    Roller Size                          4.72″ x 2.36″ (Standard)              4.72″ x 1″ (Optional)

                                            Φ120 x 60 mm (Standard)          Φ120 x 25 mm (Optional)

    Rollers                                                3                                         3

    Feeding Speed                           7-72 FPM                                  2-22 m/min

    Horsepower                              2/3 HP                                          500W

    Packing Size: Body              23″ × 12 ¾” × 12″                   588 x 326 x 306 mm

    Packing Size: Stand        30-3/8″ x 12-5/8″ x 11 ½”             770 x 320 x 290 mm

    Machine Weight              51 + 66 lbs = 117 lbs total         23 + 30 kgs = 53 kgs total

    Shipping Weight              55 + 72 lbs = 127 lbs total         25 + 32 kgs = 57 kgs total
