Product Overview

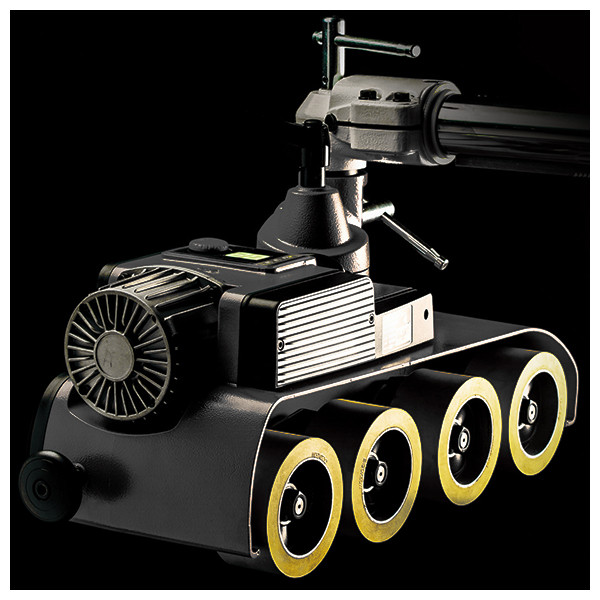

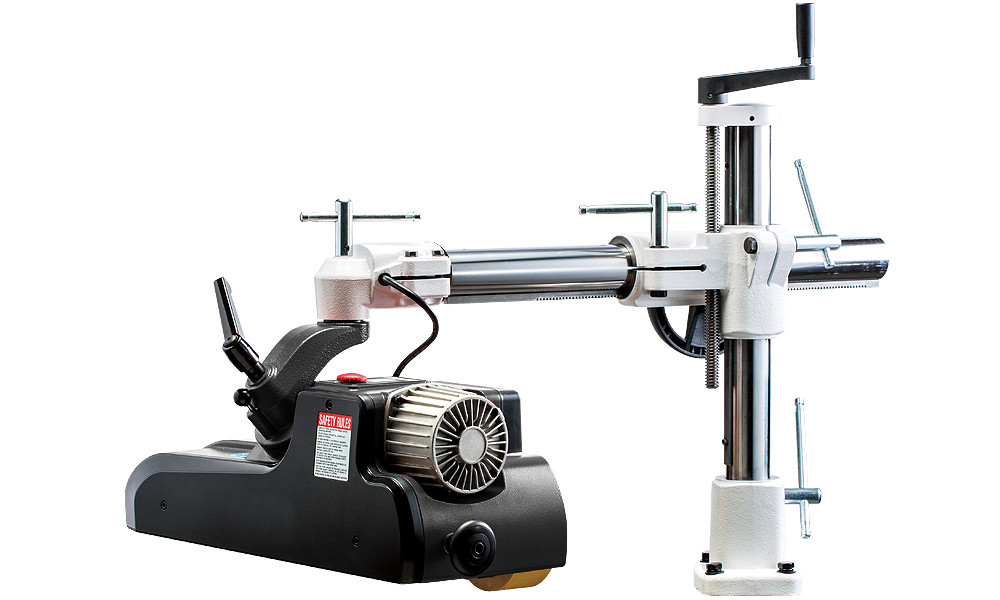

CANTEK | DC40 4-ROLL VARIABLE SPEED POWER FEEDER
Consistent, safe, and powerful power feeder with the right speed for your job.
The Cantek DC40 4-Roll Variable Speed Power Feeder is a safe and powerful feeding unit for shapers, table saws, and more. The rubber feed wheels grip the workpiece firmly and feed it at a constant speed to produce flawlessly finished pieces. The DC brushless servo motor with electronic variable speed adjustment allows the operator full control to set the optimum feed speed according to the specific job. The universal stand allows for quick positional adjustment from horizontal to vertical positioning and everything in between.
Why Cantek DC40 4-Roll Variable Speed Power Feeder?
· High-efficiency DC brushless servo motor.
· High efficiency = more power, more torque.
· Saves +50% power output over other feeders of the same size.
· Electronic variable feed speed adjustment for optimum cut quality.
Key Advantages
· 2/3 HP DC Brushless Servo Motor with electronic speed display.
· US13 heavy-duty universal stand for fast setup.

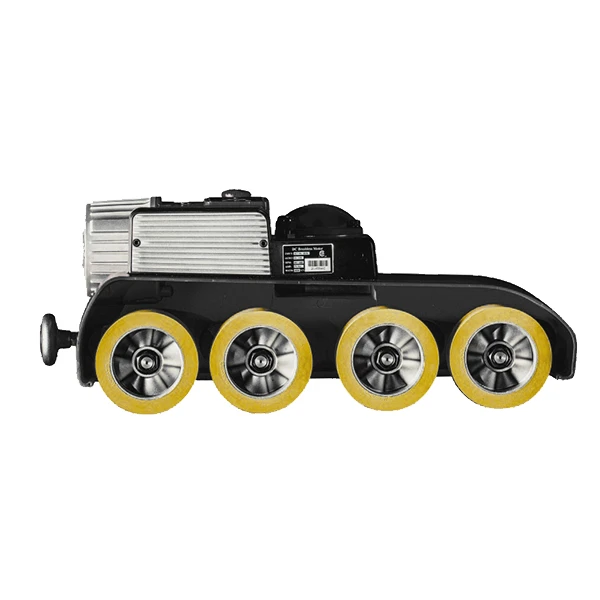

· (4) rubber feed rollers.
· Variable speed 2-22 M/min (7-72 FPM).
· Forward/reverse feed.
· Optional Dual Rollers for saw or cutter clearance
Cantek DC40 4-Roll Variable Speed Power Feeder | Specifications
DESCRIPTION METRIC INCH
Roller Size 4.72″ x 2.36″ (Standard) 4.72″ x 1″ (Optional)
Φ120 x 60 mm (Standard) Φ120 x 25 mm (Optional)
Rollers 4 4
Feeding Speed 7-72 FPM 2-22 m/min
Horsepower 2/3 HP 500W
Packing Size: Body 27″ × 12 ¾” × 12-3/8″ 685 x 326 x 316 mm
Packing Size: Stand 30-3/8″ x 12-5/8″ x 11 ½” 770 x 320 x 290 mm
Machine Weight 57 + 66 lbs = 123 lbs total 26 + 30 kgs = 56 kgs total
Shipping Weight 62 + 72 lbs = 134 lbs total 28 + 32 kgs = 60 kgs total
