Product Description

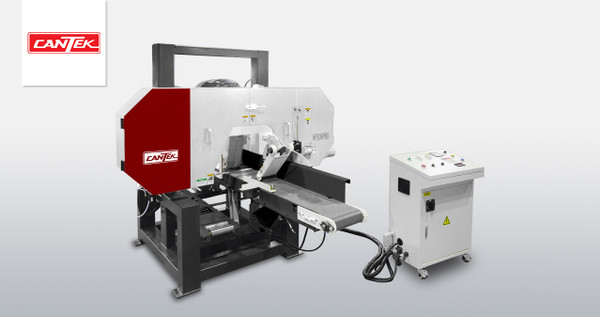

CANTEK | HR300PBX TILTING BED HORIZONTAL BAND RESAW
High production horizontal resaw with tiling bed for bevel siding and more.
The Cantek HR300PBX tilting bed horizontal band resaw is industrially built for demanding resawing applications. The bed can be tilting from 0-45° making it ideal for bevel siding, moulding blanks, or millwork components. Capable of feeding up to 12” x 12” timber and cutting up to 10” thick. The powerful 30HP saw motor has a variable feed control allowing you to match the cutting speed to your blade & application requirements. The HR300PBX runs a 2” wide blade which runs on solid steel band wheels which are precision machined and balanced for a smooth cutting action. The precision sandwich style blade guides ensure the blade runs true for optimum cutting results. The thickness is conveniently adjusted using a precision motorized digital thickness control.
Why Cantek HR300PBX Tilting Bed Horizontal Band Resaw?
· Manually tilting feed belt for straight of bevel cutting from 0 – 45°
· Powerful 30HP saw wheel motor with variable speed inverter for precise blade speed setting according to your needs
· Heavy-duty tubular steel frame
· Motorized thickness (blade height) adjustment with digital position readout
· Hydraulic blade tensioning for optimum cutting results
· Precision sandwich style saw guide system with moveable left guide to move as close as desired to the material being cut for improved cut accuracy
· Air mist blade cooling system

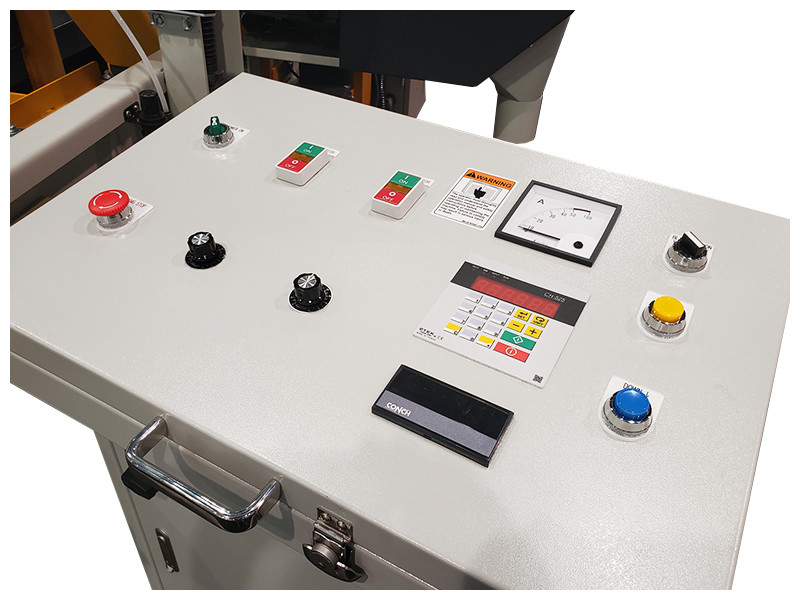

· Mobile control panel with digital thickness control, ammeter, feed speed display can be positioned where the operator desires
Key Advantages
· Solid steel saw wheels – precision machined and balanced
· Pneumatic pressurized top hold down rollers on feed conveyor
· Heavy-duty infeed guide-fence on conveyor right including holdover system
· Idle roller return conveyor to return parts required additional machining
· Reinforced urethane conveyor belt for positive feeding and long life including
· Variable feed speed by VFD (frequency inverter)
· Y Delta – low amperage starter on the saw motor
· Electrical components to UL/CSA standards – 460/3/60 electrics
· Smooth infeed system (limit switch & timer 1 to 3 seconds) with timed pressure roller
Cantek HR300PBX Tilting Bed Horizontal Band Resaw | Specifications
DESCRIPTION INCH METRIC
Max. workpiece size 12″ x 12″ 305mm x 305mm
Distance from blade to conveyor 0.157″ – 9.8″ 4 – 250mm
Conveyor belt size 11.2″ x 215″ 285mm x 5470mm
Machine wheel dimensions 28” Dia. x 2” Wide 711 x 50mm
Main motor (Resaw wheels) 30 HP
Conveyor motor 3 HP
Blade elevation motor ¼ HP
Variable feed speeds 0~148 FPM 0~45 m/min
Dust hood diameter 4″ x 2 = 800 CFM 100mm x 2 = 800 CFM
Saw blade size 180″ x 2″
Feed belts – bed angle 0 ~ 45°
Voltage – Stock machine 460/3/60 = 45 Amps
Machine weight 3960 lbs 1800 kgs
Shipping weight 4400 lbs 2000 kgs
Shipping dimensions 113″ x 90″ x 85″ 2850 x 2270 x 2160mm
