Product Description

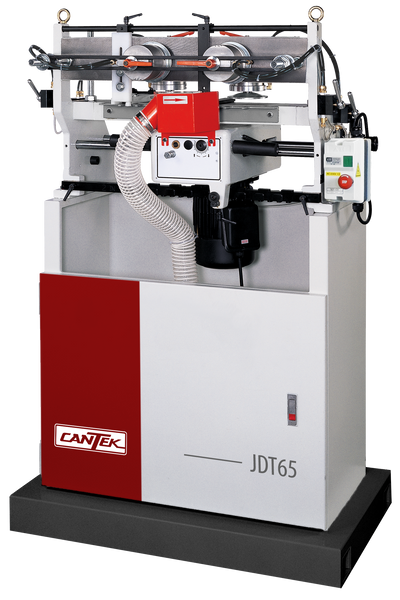

CANTEK | JDT65 MANUAL DOVETAILER
It is time to upgrade your cabinetry with precision dovetail drawer boxes.
Add prestige to your cabinets with aesthetically pleasing dovetail drawer boxes with the Cantek JDT65 manual dovetailer. Dovetails display your quality and are built to last! Producing beautifully aesthetic dovetails for drawer box production from a wide range of wood types, including plywood and solid wood. The JDT65 machine produces both the pin and tail of the dovetail simultaneously. All four sides of the drawer can be loaded into the machine for optimum production capacity. The operator controls the dovetail unit by following a simple template, allowing easy operation and quality joints. Equipped with a choice of four-pitch templates for varying types of dovetail joints.
Why Cantek JDT65 Manual Dovetailer?
· Ideal for drawer production and furniture parts that require high-quality dovetail joints.
· Workpieces are pneumatically clamped to speed up material changeovers.
· Equipped with one four-sided template providing four pitches between dovetails.
· The floating dovetailing unit has ball bearings that run on chrome steel guide rails for effortless operation.
· Standard pitch 1″, 1 ½", 2″ and 2 ½."
· Solid carbide single flute eccentric dovetail bit controls the fit of the joint.
· 18500 RPM spindle for superior cut quality.
Key Advantages
· workpiece size 59″ x 16 ½."
· Workpieces are clamped by air clamps.
· Equipped with an indication bar for indicating the cutting position.
· Tenon and mortise depth are conveniently adjusted according to the thickness of the workpiece.
· The spindle accommodates a 12 mm TCT eccentric cutter.
· Enclosed base.
· Magnetic switch with thermal overload protection
Cantek JDT65 Manual Dovetailer | Specifications
DESCRIPTION INCH METRIC
Minimum workpiece size 7.9″ x 2.4″ 200 x 60mm
Maximum workpiece size 59″ x 16.5″ 1500 x 420mm
Minimum dovetail height 3/16″ 5mm
Maximum dovetail height 0.71″ 18mm
Minimum front thickness 0.28″ 7mm
Maximum front thickness 2.36″ 60mm
Minimum side thickness 0.28″ 7mm
Maximum side thickness 2.36″ 60mm
Number of spindles 1
Spindle speed (RPM) 18500 RPM
Center spacing of dovetails 1″, 1.5″, 2″, 2.5″
Table height from floor 46.5″ 1180mm
Dust collection ports diameter front 2.5″, rear 4″ = 625 CFM front 63.5mm, rear 100mm
Air pressure requirement 6 Bar
Motor 1 HP
Electrics 230/1/60 = 8 amps
Shipping dimensions 42 ½” x 30″ x 65 ½” 1070 x 750 x 1660mm
N.W. / G.W. 440 lbs / 510 lbs. 200 kgs / 223 kgs
