• CANTEK | JDT75 AUTOMATIC DOVETAILER
  • Precision Spindle Assembly The spindle head is made of cast iron and is precision constructed to ensure tenon accuracy. 21500 RPM spindle speed produces a premium finish on both solid wood and plywood components. Spindle height is adjustable according to the material thickness and desired result. The spindle is driven by a powerful 2 HP motor and flat drive belt.
  • Two Flue Dovetail Bit The dual flute dovetail bit rotates at 21500 RPM for superior finishing results. The bit is carbide tipped. The spindle is eccentric, and you can control the tightness of the joint by rotating the bit in the collet.
  • Material Clamping System (4) pneumatic clamps with individual lever activation ensure the workpiece is held firmly during machining operations.
  • Cutterhead Feeding Template The cutterhead is advanced on 25mm increments using a moving and fixed template. The recirculating feeding arm is automatically lubricated to ensure maximum wear resistance.
  • Control Panel Easy to access control panel with manual and automatic cycle switch, power indicator light, warning light, and emergency stop switch. Outfitted with high-quality Schneider electrical controls.
  • Anti-Splintering Blocks Included as standard equipment to prevent blowout on drawer components. The blocks can be cut off and adjusted as they wear. Blocks are made from UHMW.
  • Automatic Lubricator An automatic lubricator provides lubrication to spindle stroke to ensure smooth cutting motion with excellent wear resistance. The lubricator has a low-level sensor with a warning light on the control panel. When the lubricator gets low on oil, the warning light will flash. When it is beyond the low limit, the machine will shut down until more lubricating oil is added to the reservoir
  • Tenon Adjustment Mortise & tenon depths are adjusted individually to produce a perfectly fitted joint. There are independent scales to show the position and allow for repeatability when making adjustments
  • Two FluteSolid Carbide Spiral Dovetail Bit (Optional) Part Number: CANJDT75-3W |
  • CANTEK | JDT75 AUTOMATIC DOVETAILER

    • CANTEK | JDT75 AUTOMATIC DOVETAILER

    CANTEK

    $12,500.00
    Request A Quote
    (No reviews yet) Write a Review
    SKU:
    CANTEK | JDT75 AUTOMATIC DOVETAILER

    Product Description

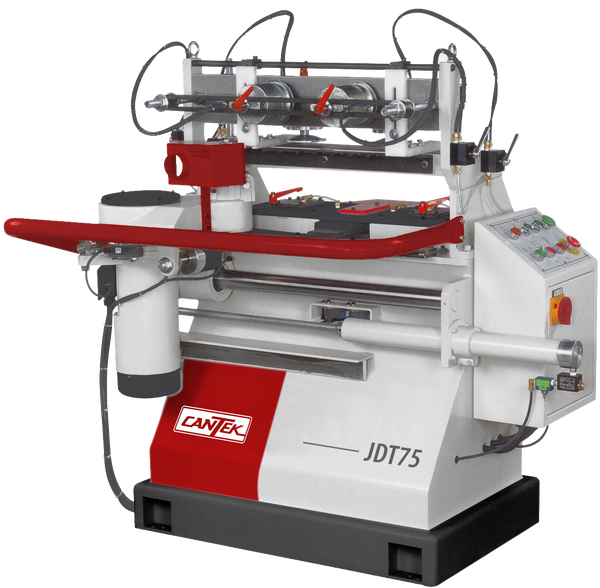

    CANTEK | JDT75 AUTOMATIC DOVETAILER

    It is time to upgrade your cabinetry with precision dovetail drawer boxes.

    Add prestige to your cabinets with aesthetically pleasing dovetail drawer boxes with Cantek JDT75 Automatic Dovetailer. Dovetails display your quality and are built to last, producing beautifully aesthetic dovetails for drawer box production from a wide range of wood types, including plywood and solid wood. This fully automatic machine produces both the pin and tail of the dovetail simultaneously. All four sides of the drawer can be loaded into the machine for optimum production capacity.

    Why Cantek JDT75 Automatic Dovetailer?

    · High-quality finish in both plywood and solid wood drawer box material.

    · Fast operation with the capacity to produce from 30 to 40 drawer boxes per hour.

    · Solid cast iron machine structure for vibration-free dovetailing leading to a long machine life.

    · Superior finish with two flute dovetail bits.

    Key Advantages

    · 21500 RPM spindle for an extremely fine finish on dovetail joints.

    · Independent adjustment of both the tenon & the mortise depth for precise fitting of dovetail joints.

    · Cast iron base to ensure vibration-free cutting.

    · Pneumatic clamping for a fast component changeover.

    · (3) cycle speeds for best finish results.

    · Automatic lubrication system to spindle stroke.

    · Dust hood for milling cutter.

    · Safety rail in front of the spindle motor.

    · Straight or spiral dovetail bits are available.

    Cantek JDT75 Automatic Dovetailer | Specifications



    DESCRIPTION                                                       SPECIFICATION

    Fixed pitch                                                                 25mm

    Spindle speed                                                           21,500 RPM

    Spindle diameter shank                                        0.472" (12mm)

    Spindle motor                                                                2 HP

    Feed motor                                                                    2 HP

    Electrics                                                            230/3/60 = 13.6 amps

                                                                             575/3/60 = 5.4 amps

    Feed speeds (3)                                                16, 22, 31 cycles/min

    Net weight approx                                                      990 lbs

    Dust port                                                                 3” = 405 CFM

    Shipping weight                                                          1210 lbs

    Shipping dimensions                                             56” x 35” x 56”

                                           WORKPIECE DIMENSIONS

    Working length                                   min. 7.87" (200mm) to max. 59" (1500mm)

    Working width                                   min. 2.36" (60mm) to max. 16.93" (430mm)

    Vertical material thickness                       0.275" (7mm) to 2.36" (60mm)

    Horizontal material thickness                   0.394" (10mm) to 1.18" (30mm)
