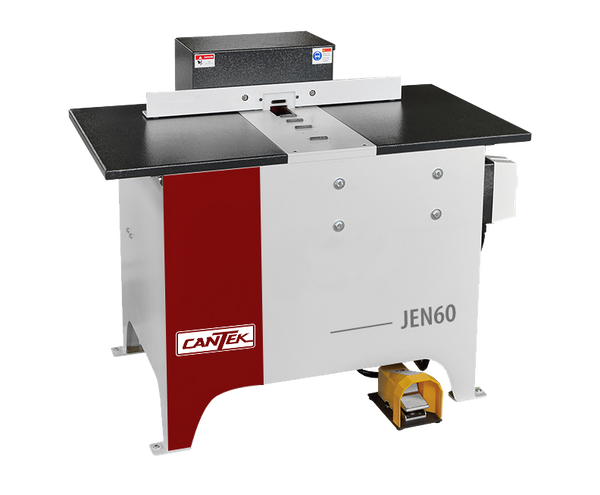

• CANTEK | JEN60 DRAWER NOTCHER
  • Insert Knife Cutterhead The insert knife cutterhead remains under the table and behind a guard until the drawer box is in position and up against the switch in the fence. The operator then operates the foot pedal, which begins the milling and drilling cycle.
  • 2 ¼" (57mm) Wide Insert Knife Cutterhead 2 ¼" (57mm) wide cutter allows for a wide range of undermount slides. The insert knives have four cutting edges and can be easily rotated when one cutting edge gets dull. The knives are an industry standard of 14mm x 14mm x 2mm. Knives are positioned both flat and vertical for clean cutting with clean edges.
  • Self-indexing drill unit The drill bit is designed to bore the location hole for the drawer slide. The drill head is powered by compressed air, and automatically indexes left and right depending on the side of the drawer being machined. The machine uses a ¼" drill bit.
  • Convenient drawer location The drawer is conveniently positioned using the table-mounted stops for both left and right drawer notches. The fence is equipped with left and right limit switches which determine the position of the drill bit.
  • Convenient foot pedal operation The machining cycle is commenced with a foot pedal, which leaves the operator's hands-free to adjust the drawer box to position optimum production throughput.
  • Drawer sample with left and right drawer notches A completed drawer box with both right and left drawer notches and drill holes. The fast cycle speed allows for a production capacity of up to 220 drawers per hour.
  • CANTEK | JEN60 DRAWER NOTCHER

    • CANTEK | JEN60 DRAWER NOTCHER

    CANTEK

    $11,100.00
    Request A Quote
    (No reviews yet) Write a Review
    SKU:
    CANTEK | JEN60 DRAWER NOTCHER

    Product Description

    CANTEK | JEN60 DRAWER NOTCHER



    Adding undermount hardware to your cabinet drawers just got easier.

    The Cantek JEN60 Drawer Notcher is designed to both notch and drill drawer boxes to install undermount soft-close drawer slides. The operation of the machine is simple with a self-indexing drilling unit that's determined by the position of the drawer for either left or right notching. With a cycle time of approximately 10 seconds per drawer, you can achieve high throughput and save time for other important tasks

    Why Cantek JEN60 Drawer Notcher?

    · High production capacity of up to 220 drawers machined per hour.

    · 57mm (2 ¼") wide cutter head allows you to machine notches for a wide range of undermount drawer slides without needing to change heads or machine the component twice.

    · Self-indexing drill unit for left or right drawer notching.

    · Convenient foot pedal operation lets the operator efficiently load and unload drawers for higher output.

    Key Advantages

    · Pneumatic cutter and drill stroke by foot pedal operation.

    · Cutter stroke and drill speed are adjustable for optimum finish results.

    · The drill will automatically position both left and right drawer notches by activating a switch in the fence.

    · The machine will not cycle unless a drawer is up against the switch for safe operation.

    · Insert knife cutterhead with solid carbide inserts for optimum finish results and long tool life.

    · 2 ¼" (57mm) wide cutter allows for a wide range of undermount slides.

    · Comes with insert cutterhead with inserts and ¼" (6.3mm) solid carbide drill bit

    · Capable of notching up to 220 drawer boxes (both left and right) per hour.

    Cantek JEN60 Drawer Notcher | Specifications



    DESCRIPTION                                                       SPECIFICATION

    Main cutter motor                            3 HP (230/3/60 or 460/3/60) | 2HP (230/1/60)

    Notch dimensions                                            2 ¼” (57mm) x 0.5” high

    Cutterhead diameter                                                     10"

    Drill diameter                                                                  ¼"

    Table size                                                                 49" x 22"

    Table height from floor                                                 32"

    Dust port                                                         2 x 4" (1,340 CFM requirement)

    Compressed air required                                           90 – 100 PSI

    Machine dimensions                                               48” x 37 ¾” x 39 ¾”

    Machine weight                                                               506 lbs.

    Shipping dimensions                                                 53" x 42" x 44"

    Shipping weight                                                               612 lbs.

    Electrical requirements                                          230/3/60 = 9 amps               230/1/60 = 10 amps

                                                                                460/3/60 = 4.8 amps              575/3/60 = 3.9 amps
