• CANTEK | OES509D HEAVY-DUTY OSCILLATING EDGE SANDER

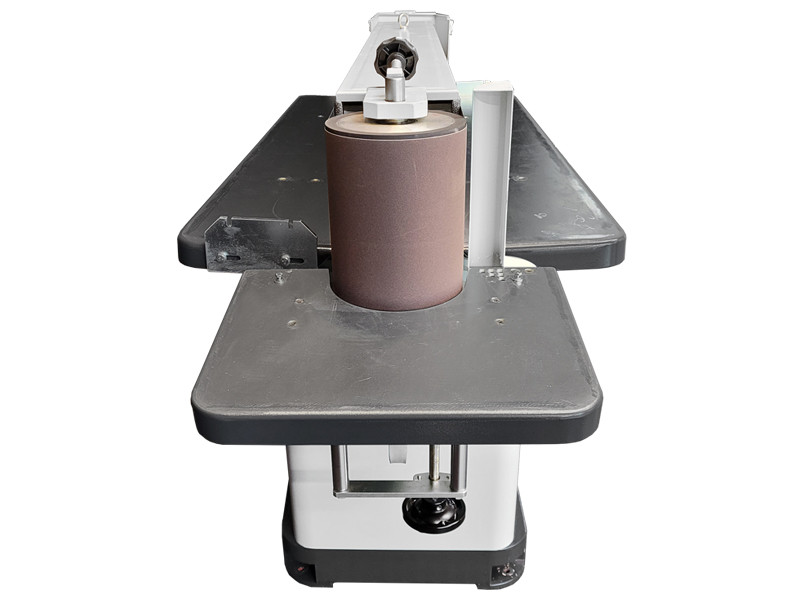

  • Worktables It is equipped with front, rear, and end tables to allow for maximum versatility and production. Front and rear worktables allow two operators to sand simultaneously, increasing production capacity on a single machine.
  • CANTEK | OES509D HEAVY-DUTY OSCILLATING EDGE SANDER
  • CANTEK | OES509D HEAVY-DUTY OSCILLATING EDGE SANDER
  • Dual dust ports and belt tracking knob Equipped with two dust ports for when two operators are sanding on the machine. The end dust cap can be removed for performing curved work on the rubber idle roller
  • End table with the hood removed for curve sanding The end dust cap can be removed for performing sanding on curve pieces. When the cap is removed, the dust port remains and can be removed if necessary for tighter curved pieces.

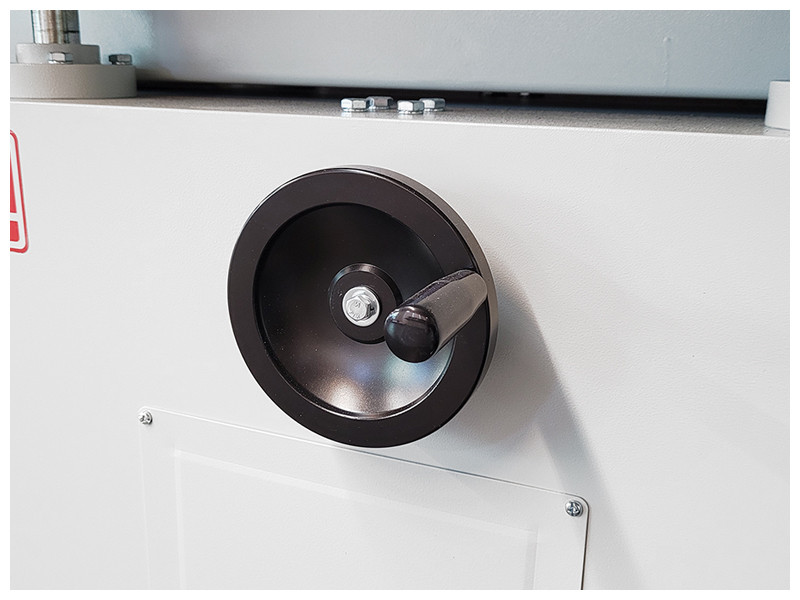

  • Table adjustment handwheel on front and rear tables Front and rear tables can be adjusted manually up and down to utilize the sanding belt fully.
  • Belt tensioning knob allows for quick belt changes The sanding belt can be removed quickly and easily for fast belt changes. The tensioning knob with spring-loaded tension ensures the belt is fastened securely. There is a belt tracking knob to ensure the belt tracks properly on the drums.

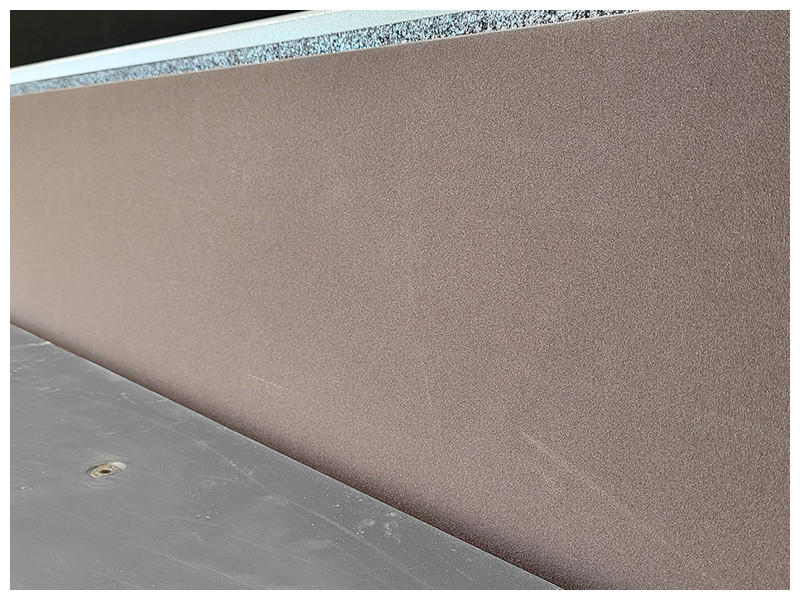

  • Steel sanding platen covered with anti-friction graphite pad The sanding plate is a machined steel plate that is covered in graphite to provide a stable and friction-free surface to work from.

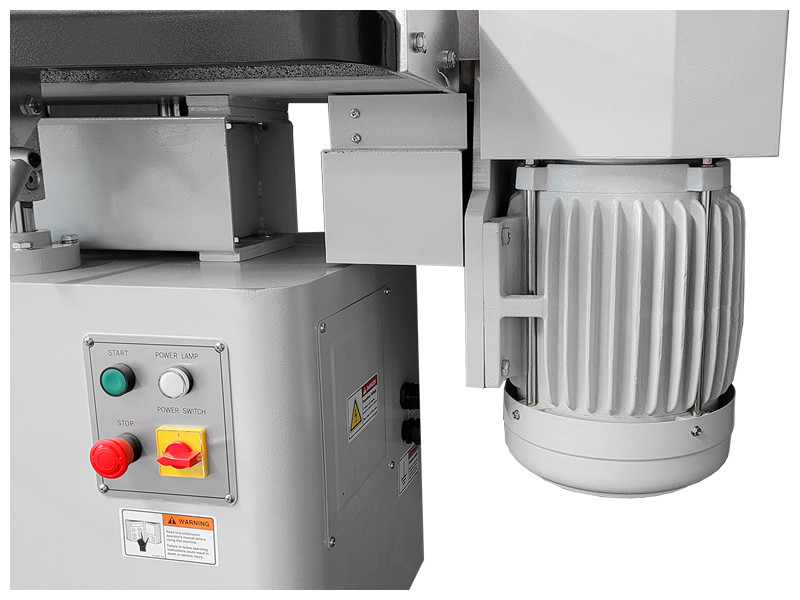

  • Powerful 7.5HP sanding motor with oscillating gearbox The belt is driven by a powerful 7.5HP motor tied into an oscillating gearbox to oscillate the belt back and forth by 0.472" (12mm).
  • End table height and tilt adjustment. Can tilt from 0 – 45 degrees The end table can be manually adjusted in height for full utilization of the sanding belt. In addition, it can be manually tilted from 0-45 degrees.
  • Front and rear tables can be tilted from 0 – 45 degrees Front and rear tables can be manually tilted for bevel work.

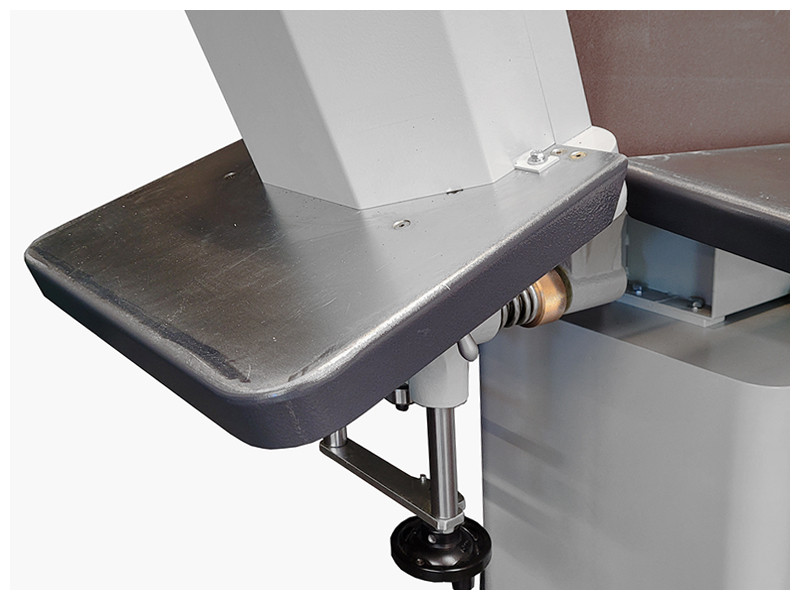

  • End table can tilt from 0 – 45 degrees The end table can be manually tilted for performing curved sanding on radius workpieces.

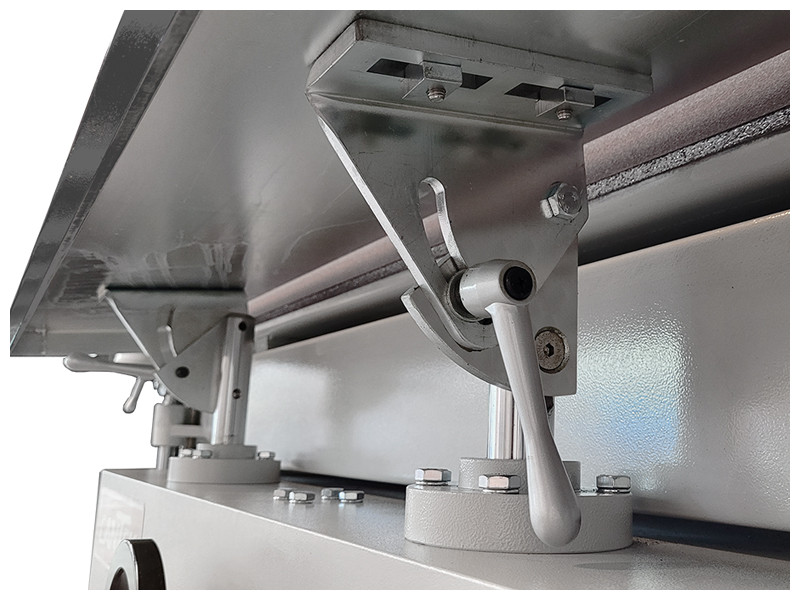

  • Front and rear tables can be tilted from 0 – 45 degrees The lifting columns are manufactured from hard steel hard chrome plated for maximum wear resistance. The table can be manually tilted from 0-45o and can be raised up to 6".
  • CANTEK | OES509D HEAVY-DUTY OSCILLATING EDGE SANDER

    • CANTEK | OES509D HEAVY-DUTY OSCILLATING EDGE SANDER

    CANTEK

    $10,500.00
    Request A Quote
    (No reviews yet) Write a Review
    SKU:
    CANTEK | OES509D HEAVY-DUTY OSCILLATING EDGE SANDER

    Product Description

    CANTEK | OES509D HEAVY-DUTY OSCILLATING EDGE SANDER

    Industrial oscillating edge sander for the most demanding of jobs.

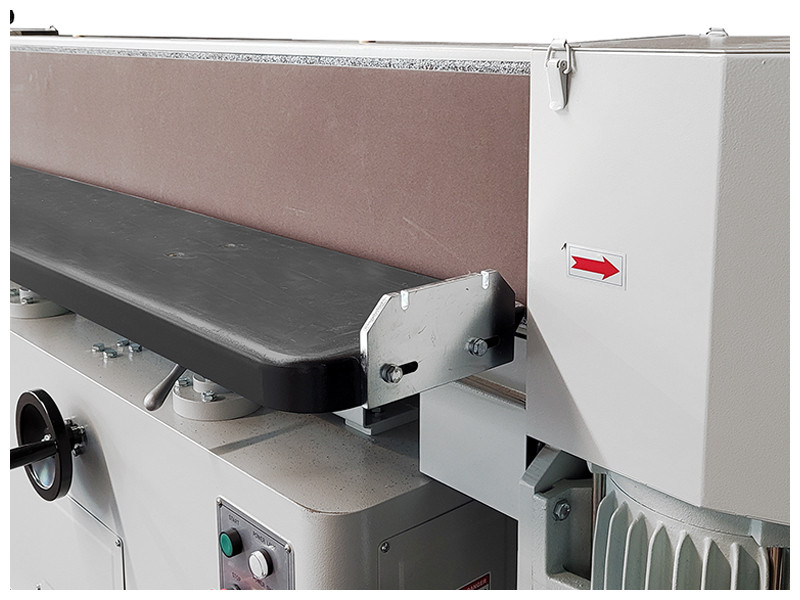

    The Cantek OES509D Heavy Duty Oscillating Edge Sander is the ideal edge sander for demanding applications for production use. Equipped with a 9" high oscillating sanding belt, it is perfect for sanding drawer boxes, doors, furniture components and more. The OES509D is also equipped with dual front and rear tables that are adjustable up & down and can be tilted to 45 degrees, allowing for a wide range of applications and full utilization of the sanding belt. The dual tables also allow two operators to be working on the machine simultaneously, made possible by the powerful 7.5 HP sanding motor. The adjustable and tiltable end table allows for sanding of curved components on the idle pulley. The belt oscillated up and down, which helps keep it cool while also producing an optimum sanded finish.



    Why Cantek OES509D Heavy Duty Oscillating Edge Sander?

    · Heavy-duty design with a powerful 7.5HP driving motor offers high efficiency in production environments.

    · Front, back, and side tables are adjustable in height by a handwheel and can be tilted for bevel sanding operations.

    · Oscillating sanding belt for optimum sanding results.

    · Quick belt change with adjustable belt tension.

    · A side table can be used for sanding the curve-style workpieces.

    Key Advantages

    · It is built of heavy welded plate steel for rugged base construction and vibration-free sanding.

    · Front and rear sanding platens are covered with anti-friction graphite cloth.

    · Belt oscillation by gear reducer.

    · 9" x 165" sanding belt.



    Cantek OES509D Heavy Duty Oscillating Edge Sander | Specifications



    DESCRIPTION                                     INCH                                      METRIC

    Sanding motor                                                          7.5 HP

    Oscillating stroke                              0.472″                                       12mm

    Sanding belt size                                                     9″ x 165″

    Sanding belt speed                                                  970 MPM

    Worktable dimension: front           10.43″ x 60″                               265x1515mm

    Worktable dimension: rear             10.43″ x 60″                              265x1515mm

    Worktable dimension: side            13.8″ x 17.7″                               350x450mm

    Front table tilt                                                         45 degrees

    Side table tilt                                                           45 degrees

    Dust port                                            (2) 4″                                        (2) 100mm

    Machine measurement            90.55″ x 30.7″ x 48″                      2300x780x1220mm

    Packing measurement             94.5″ x 34.6″ x 56″                       2400x880x1420mm

    Machine weight                                1100 lbs.                                       500 kgs

    Shipping weight                                1375 lbs.                                       625 kgs

    Electrical requirement                                     230/3/60 = 22 amps

                                                                            575/3/60 = 9 amps
