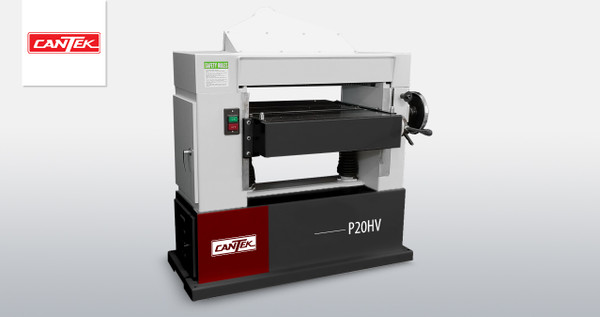

• CANTEK | P20HV 20″ PLANER
  • Machine Construction Industrial machine design with cast-iron head assembly, cast-iron feed table, and welded steel frame
  • Spiral Insert Knife Cutterhead Cutterhead The spiral insert knife cutterhead provides a smooth finish with a quiet cutting operation. 4-sided solid carbide insert knives (14x14x2mm) can be easily rotated for a new sharp cutting surface.
  • Sectional chip breakers It is equipped with sectional kickback fingers, sectional spring-loaded serrated pressure rollers, and sectional pressure shoes for the most positive and safe feeding operations. The outfeed roller is coated with urethane for a mark-free planed surface.
  • Convenient Machine Adjustments The idle bed rolls are conveniently adjusted from the front of the table. The eccentric cam allows you to raise and lower the bed rollers for optimum feeding results. A side handwheel adjusts the machine bed position for thickness setting. A ruler and indicator display the height.
  • Machine Table Equipped with adjustable idle bed rollers, which can be raised and lowered to facilitate feeding difficult material. The rollers are directly opposed from the top-driven feed rollers. The table surface is ground and polished to provide minimal friction.
  • Feed Mechanism & Motor Equipped with two feed speeds which are easily accessed through the side doors. A powerful chain feed system provides superior feeding results. A powerful 5HP motor drives the cutterhead and feed rollers.
  • 6″ Dust Port An efficient 6" dust port removes wood chips to provide a clean working surface with superior finish results. The machine's lid is lifted for changing knives, and the dust port is hinged, so it does not have to be removed during this process
  • CANTEK | P20HV 20″ PLANER
  • CANTEK | P20HV 20″ PLANER

    • CANTEK | P20HV 20″ PLANER

    CANTEK

    $9,600.00
    Request A Quote
    (No reviews yet) Write a Review
    SKU:
    CANTEK | P20HV 20″ PLANER

    Product Description

    CANTEK | P20HV 20″ PLANER



    Compact and economically priced 20" planer with spiral cutterhead.

    The Cantek P20HV 20" Planer has a cast iron table and head assembly with a robust welded steel frame, resulting in a superior planing finish due to significantly reduced vibration. The spiral insert knife cutterhead runs extremely quietly, and the solid carbide inserts provide a smooth finish and have a long life. When one edge gets dull, rotate the knife 90 degrees for a new cutting edge. Knives can be rotated four times before needing to be replaced.

    Why Cantek P20HV 20″ Planer?

     Spiral Insert Knife Cutterhead with replaceable carbide insert knives for long life and smooth cutting action (132 inserts, 14mmx14mmx2mm).

    · Sectional chip breakers.

    · Serrated sectional infeed roll conforms to material that is not yet flat.

    · Anti-kickback fingers for safe operation.

    · Available in single-phase and 3-phase electrics.

    Key Advantages

    · 2-feed speeds: 30 & 30 FPM

    · Double bed rolls are conveniently adjusted from the front of the machine to assist with planing difficult-to-feed material.

    · Side handwheel with linear scale for table adjustment.

    · Polyurethane outfeed roll, which will not mark your material after it has been planed.

    · Flip open top lid with limit switch for safe & convenient changing of the insert knives.

    Cantek P20HV 20″ Planer | Specifications



    DESCRIPTION                                                            SPECIFICATION

    Maximum planing width                                                    20″

    Maximum planing thickness                                            8-5/8″

    Feed speeds (2)                                                          20 & 30 FPM

    Main motor                                                                       5 HP

    Cutterhead diameter                                                       3-1/8″

    Min. length                                                                         8″

    Table rise & fall                                                              Manual

    Dust port (1)                                                             6" = 900 CFM

    Net weight                                                                     924 lbs.

    Shipping weight                                                            1144 lbs.

    Machine dimensions (LxWxH)                                  44” x 30” x 45”

    Shipping dimensions                                                 50" x 31" x 47"

    Machine electrics                                                  230/1/60 = 28 amps

                                                                                230/3/60 = 15.2 amps

                                                                                 575/3/60 = 6.1 amps
