Product Overview

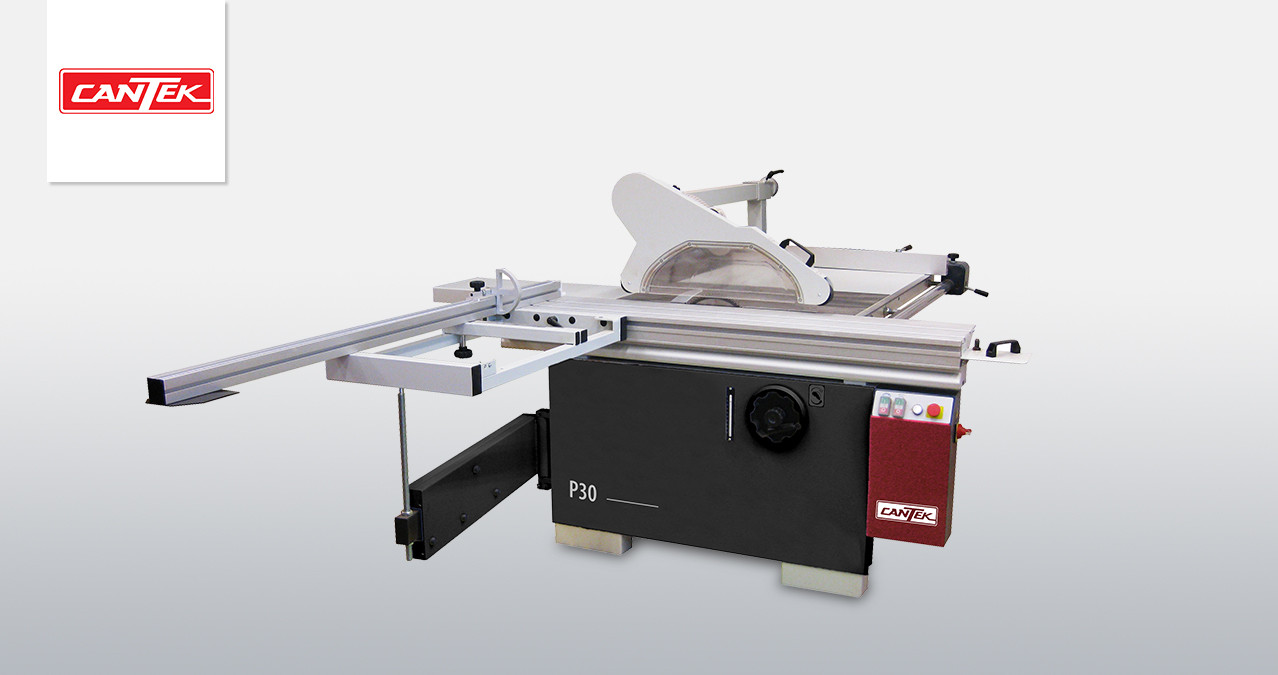

CANTEK | P30 5′ SLIDING TABLE SAW
Powerful features in a small footprint sliding panel saw.
The Cantek P30 5′ Sliding Table Saw is the ideal solution for customers looking for the precision and convenience of a sliding table saw but has limited floor space and smaller cutting requirements. The P30 has a precision sliding table that runs on ball bearings and hardened steel guide strips. It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (¾ HP). The blade height and tilt are manually adjusted by means of individual handwheels. A linear scale displays the angle of the blade for added operator convenience. The rip fence runs on a round hardened rail and is manually adjusted up to 51". It is equipped with a crosscut miter fence and (2) flip stops.
Why Cantek P30 5′ Sliding Table Saw?
· Precision anodized aluminum sliding table with ball bearing guide system for smooth table movement.
· Powerful 5 HP main motor with ¾ HP scoring motor.
· Heavy-duty cast-iron rip fence with 51" cutting capacity.
· Aluminum crosscut miter fence with (2) flip stops.
· Manual rise/fall of the main saw blade.

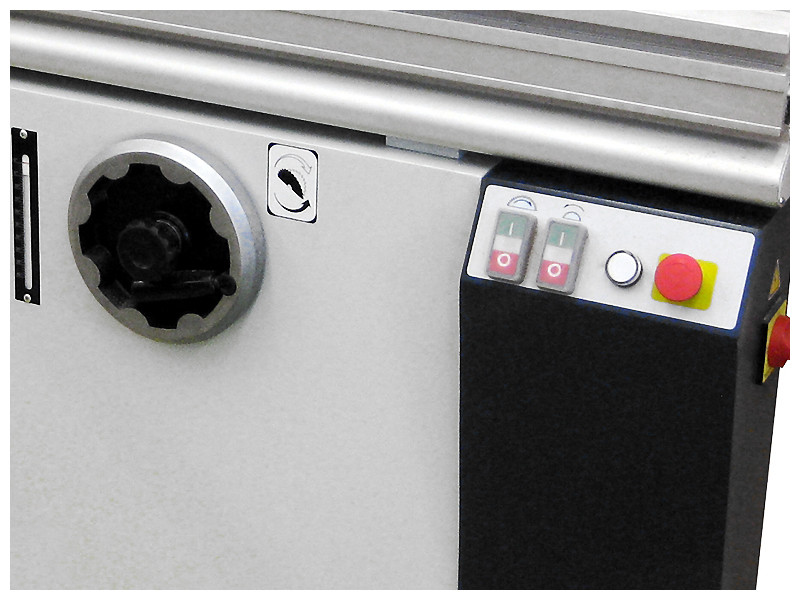

· Manual tilting of the saw blades with angle indicator conveniently located by adjustment handwheel.
· Overarm blade guard with built-in dust port.
Key Advantages
· Solid cast iron main table, which is ground and polished.
· Heavy-duty outrigger for strong support of workpiece during cutting operations.

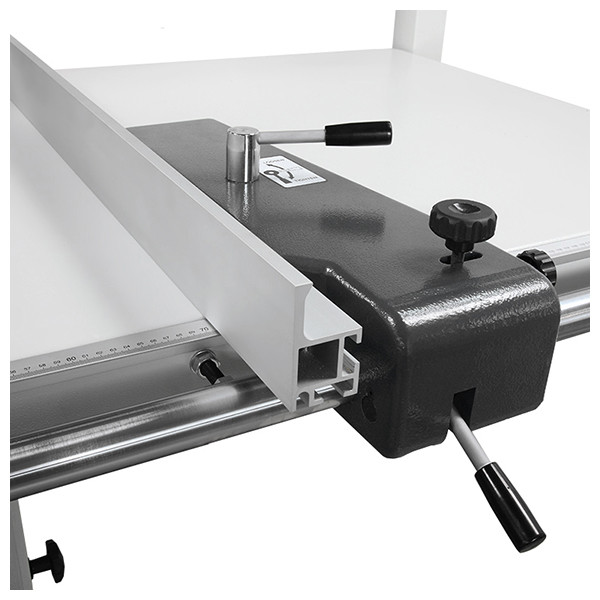

· Solid rip fence with manual fine adjustment and locking lever.
· Easy to access external scoring adjustment.
· Extension table at side and back of the main table.
· Optional Equipment Included:
· Eccentric hold-down clamp.
· CE Overarm Guard with Dust Port.
· Wedge for Solid Wood Ripping.
· Comes with a set of sawblades: (1) 12” (300mm) diameter main blade; (1) scoring blade
Cantek P30 5′ Sliding Table Saw | Specifications
DESCRIPTION INCH METRIC
Sliding table dimension 63″ x 12.4″ 1600 x 315mm
Cast Iron table 21 ½” x 35 ¼” 548x896mm
Extension table (rear) 18″ x 17 ½” 470x896mm
Extension table (front) 12 ½” x 32 ½” 320x830mm
Table size 39 ½” x 68″ 1018x1726mm
Main saw blade (Max.) 12″ 305mm
Main saw bore 30mm
Max. cutting height at 90° (355mm) 3.54" 90mm
Max. cutting height at 45° (355mm) 2.48" 63mm
Main motor power 5 HP
Main blade speed 4000 RPM
Scoring saw blade 120mm
Scoring saw blade bore 20mm
Scoring blade motor power 3/4 HP
Scoring blade speed 8000 RPM
Cutting width – ripping 51" 1300mm
Cutting width adjustment Manual
Main saw blade tilting adjustment Manual (0°~ 45°)
Main saw height adjustment Manual
Scoring saw height adjustment Manual
Saw guard CE Guard Included
Dust collection ports 100 / 60mm = 825 CFM 4″ / 2.4” = 825 CFM
Machine weight 984 lbs 447 kgs
Shipping weight 1151 lbs 523 kgs
Shipping dimensions 83” x 46” x 44” 2110 x 1150 x 1160mm
Electrics 230/1/60 = 34.9 Full Load Amps
230/3/60 = 18.4 Full Load Amps
575/3/60 = 7.4 Full Load Amps
