Product Description

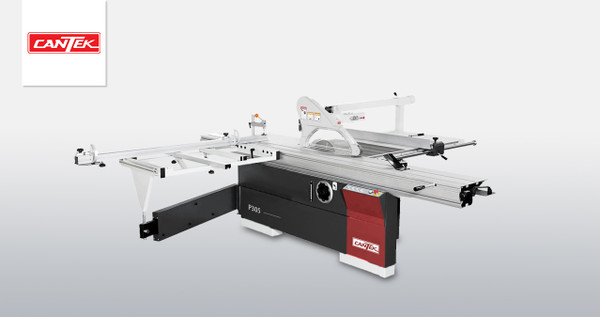

CANTEK | P305 10' SLIDING TABLE SAW
Powerful features in a small footprint sliding panel saw.
The Cantek P305 10' Sliding Table Saw is built for the budget-conscious user that still wants precision and accuracy. The P305 has a precision sliding table that runs on ball bearings and hardened steel guide strips. It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (1 HP). The blade height and tilt are manually adjusted by means of individual handwheels. A linear scale displays the angle of the blade for added operator convenience. The rip fence runs on a round hardened rail and is manually adjusted up to 51". It is equipped with an extendable crosscut miter fence and flip stops.
Why Cantek P305 10′ Sliding Table Saw?

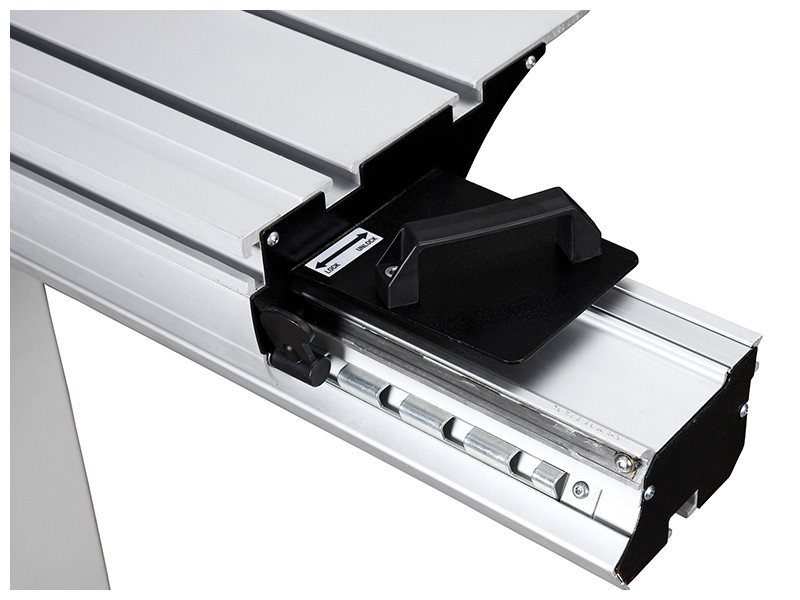

· Precision anodized aluminum sliding table with ball bearing guide system for smooth table movement.
· 12" blade driven by powerful 5 HP main motor with separate 1 HP scoring motor.
· Heavy-duty cast-iron rip fence with 51" cutting capacity.
· Aluminum crosscut miter fence with (2) flip stops and dual inch/metric scales.
· Manual rise/fall of the main saw blade.
· Manual tilting of the saw blades with angle indicator conveniently located by adjustment handwheel.
· Overarm blade guard with built-in dust port.
Key Advantages
· Solid cast iron main table, which is ground and polished.
· Heavy-duty outrigger for strong support of workpiece during cutting operations.
· Solid rip fence with manual fine adjustment and locking lever.
· Easy to access external scoring adjustment.
· Convenient eccentric manual scoring adjustment.
· Extension table at side and back of the main table.
· Equipped with a set of main and scoring blades.
· Included: Eccentric hold down clamp & wedge for solid wood ripping included.
· Comes with a set of sawblades: (1) 12” (300mm) diameter main blade; (1) scoring blade
Cantek P305 10′ Sliding Table Saw | Specifications
DESCRIPTION SPECIFICATION
Cast iron fixed table dimension 59″ x 68″ 1500 x 1726mm
Sliding table dimension 126” x 14″ 3200 x 360mm
Max. main saw blade diameter 12" 305 mm
Main saw bore 30mm
Max. cutting height with blade at 90 degrees 3.54" 90 mm
Max. cutting height with blade at 45 degrees 2.48" 63 mm
Main motor power 5 HP
Main blade speed 4000 RPM
Scoring saw blade 120 mm
Scoring saw blade bore 20 mm.
Scoring blade motor power 1 HP
Scoring blade speed 8000 RPM
Blade tilt 0 – 45 Degrees
Max. ripping width 51" 1300mm
Max. crosscut width 134.6” 3420mm
Dust collection ports 100 / 60mm = 825 CFM 4″ / 2.4” = 825 CFM
Machine weight 1206 lbs. 548 kgs
Machine shipping weight 1435 lbs. 652 kgs
Machine shipping dimensions 83″ x 45 ½” x 44″ 2110 x 1150 x 1120mm
Sliding table weight 176 lbs. 80 kgs
Sliding table shipping weight 227 lbs. 103 kgs
Sliding table shipping dimensions 130″ x 17″ x 9″ 3300 x 430 x 220mm
Electrics 230/1/60 = 36 Full Load Amps
230/3/60 = 19.4 Full Load Amps
575/3/60 = 8 Full Load Amps
