Product Description
CANTEK | PCS18M 18″ NON-FERROUS PNEUMATIC CHOP SAW
Speed up your crosscutting operations.
The Cantek PCS18M 18″ Non-Ferrous Pneumatic Chop Saw is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful 10HP motor and adjustable cutting stroke ensure it can effortlessly cut though a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, security bolt on the saw access door, blade misting system, and solid chrome table. Available in either left hand or right-hand operation depending on your ideal production flow.
Why Cantek PCS18M 18″ Non-Ferrous Pneumatic Chop Saw?
· Large cutting capacity of 2”x12” up to 4”x10”
· Adjustable cutting stroke to ensure optimum cutting speed and cut quality
· Reliable performance day in and day out
· Added safety features
Key Advantages
· Available in Right Hand & Left-Hand configuration
· Cut off capacity (thickness x width): 2″ x 12″, 3″ x 11″, 4″ x 10″
· Powerful 10HP main motor
· Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push bottom control)
· Fast cutting cycle with up to 45 strokes per minute
· Non-ferrous cutting blade
· Air over oil for precise speed control

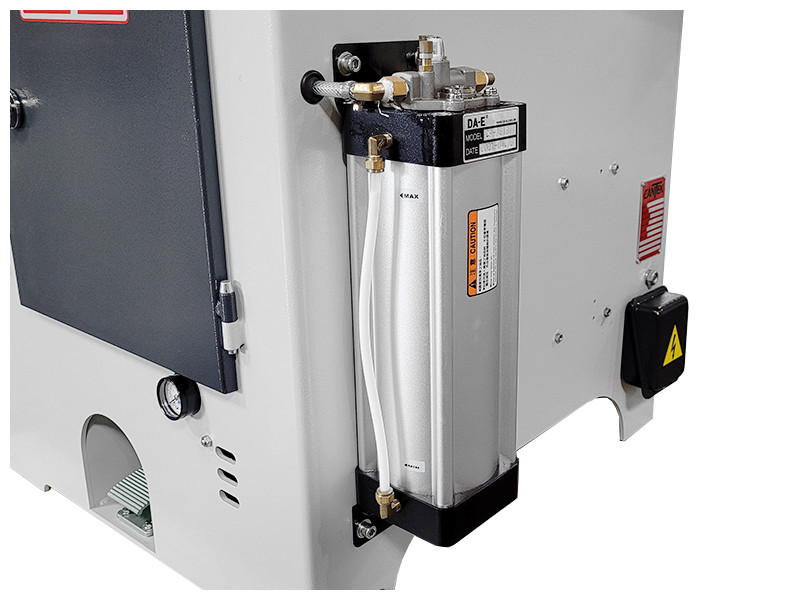

· Blade misting system that applies a thin film of lubricant for preventing friction build up, and maximizes saw productivity and blade life
· Corrosion resistant solid chrome table
· Zero cut line with T-clamp that increases precision cuts and reduces possibility of tear out
· Material clamp is easily adjusted for workpiece thickness variation.
· CSA/UL magnetic switch
Safety Features
· Safety guard covers infeed and outfeed to maximize operators safety during cutting operations
· Infeed guard has adjustable fingers to minimize opening
· Door safety limit switches with extended security bolt
· Emergency stop button
· Optional dual push button control which requires both buttons to be pushed simultaneously to cycle the saw
Cantek PCS18M 18″ Non-Ferrous Pneumatic Chop Saw | Specifications
DESCRIPTION SPECIFICATION
Cutting capacity (thickness x width) 2″ x 12″, 3″ x 11″, 4″ x 10″
Cycle speed 45 strokes/min
Cycle operation Air
Saw blade size 18″
Saw arbor diameter 1″
Saw blade speed 3600 RPM
Dust exhaust diameter Ø4″ = 400 CFM
Air consumption 9.8 CFM | 80 PSI
Motor 10 HP
Table size 26” x 27 ½”
Net weight 770 lbs.
Gross weight 902 lbs.
Machine dimensions (LxWxH) 42” x 27” x 48”
Packing dimensions (LxWxH) 37” x 33 ½” x 53.2”
Power requirements 230/3/60 = 28 amps | 460/3/60 = 14 amps | 575/3/60 = 11 amps
