Product Description
CANTEK | PCS24 24″ PNEUMATIC CHOP SAW
Large capacity crosscutting operations.
The Cantek PCS24 24” pneumatic chop saw is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful 15HP motor and adjustable cutting stroke ensure it can effortlessly cut though a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, and security bolt on the saw access door. Available in either left hand or right-hand operation depending on your ideal production flow.
Why Cantek PCS24 24″ Pneumatic Chop Saw?
· Large cutting capacity from 2”x21” up to 7”x 8”
· Adjustable cutting stroke to ensure optimum cutting speed and cut quality
· Reliable performance day in and day out
· Added safety features
Key Advantages
· Available in Right Hand & Left-Hand configuration
· Cut off capacity (thickness x width): 2” x 21”, 4” x 19”, 6” x 15”, 7” x 8”
· Powerful 15HP main motor
· Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push button control)
· Fast cutting cycle with up to 40 strokes per minute
· Cast iron table surface is precision ground assuring high cutting accuracy.
· Material clamp is easily adjusted for workpiece thickness variation.
· CSA/UL magnetic switch
Safety Features
· Safety guard covers infeed and outfeed to maximize operators safety during cutting operations
· Infeed guard has adjustable fingers to minimize opening
· Door safety limit switches with extended security bolt
· Emergency stop button

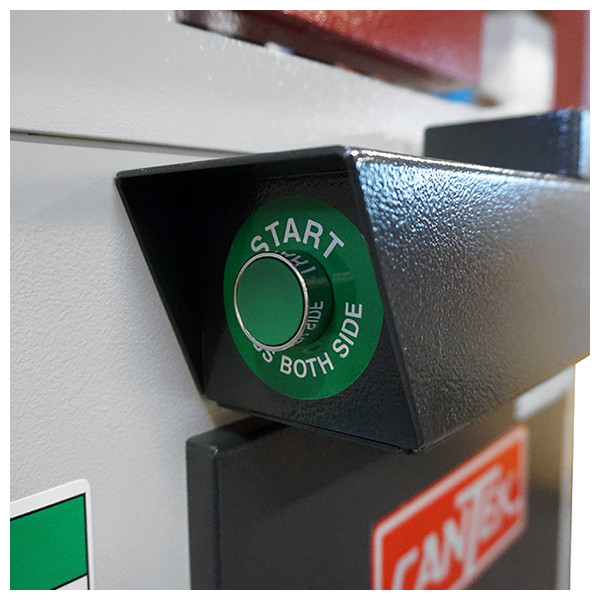

· Optional dual push button control which requires both buttons to be pushed simultaneously to cycle the saw
Cantek PCS24 24″ Pneumatic Chop Saw | Specifications
DESCRIPTION SPECIFICATION
Cutting capacity (thickness x width) 2″x21″, 4″x19″, 6″x15″, 7″x8″
Cycle speed 40 strokes/min
Cycle operation Air / mechanical
Saw blade size 24″ max. (20″ min.)
Saw arbor diameter 1″
Saw blade speed 2400 RPM
Dust exhaust diameter Ø4″ x 2 = 800 CFM
Air consumption 27.5 CFM / 70-85 PSI
Motor 15 HP
Table size 45.3″ x 26″
Net weight 1058 lbs
Gross weight 1433 lbs
Machine dimensions (LxWxH) 40.2″ x 45″ x 55″
Packing dimensions (LxWxH) 53.5″ x 35.5″ x 57″
Electrical requirements 460/3/60 = 21 Amps 230/3/60 = 42 Amps 575/3/60 = 17 Amps
