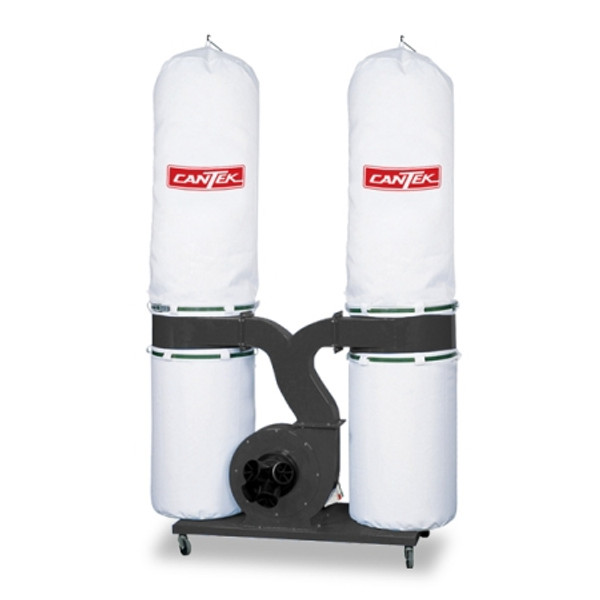

CANTEK | PDC203 3HP DUST COLLECTOR
Quality affordable dust collection solution.
The Cantek PDC203 3HP Dust Collector is ideal for the small shop looking to collect wood dust or for the larger shop to provide additional dust collection beyond the capacity of their central system. The upper and lower bags are made of cotton and help filter the collected air before it is recycled into the shop and also collects the dust for disposal. The base is mounted on casters to be taken to where it is needed in the shop
Why Cantek PDC203 3HP Dust Collector?
· 3HP generating 2800 CFM.
· The base is mounted on casters to be moved around the shop to where it is needed.
· Durable cotton filter bags. (Bottom plastic disposal bags are optional)
· Magnetic starter included.
Key Advantages
· 3HP Motor
· 2800 CFM
· 8" main inlet with removable outlet with (3) 4" ports.
· 5 micron upper filter bags and 30 micron collection bags
Cantek PDC203 3HP Dust Collector | Specifications
DESCRIPTION SPECIFICATION
CFM 2800 CFM
Motor 3 HP
Main inlet diameter 8”
Connector inlet diameter (3) 4”
Fan diameter 14”
Static pressure 14.4” of water
Top filer bags (2) 5 micron (20” dia. x 48” long)
Bottom collection bags (2) 30 micron (20” dia. x 33.5” long)
Electrics 230/1/60 = 17 Full Load Amps
Net weight 154 lbs
Shipping weight 163 lbs
Shipping dimensions 46” x 23” x 23”
Noise Level 85dB
