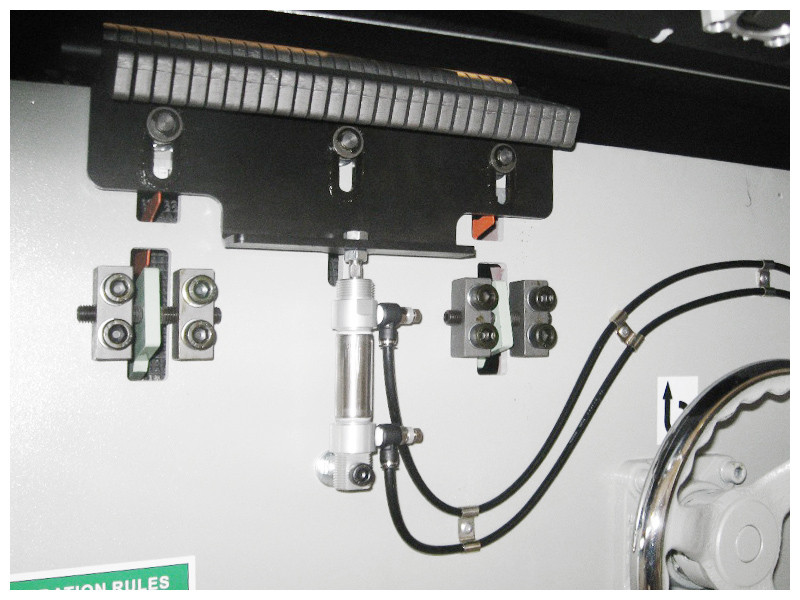

  • Auto Lowering Bottom Kickback Fingers A sensor will detect when a workpiece is on the table which will automatically lower the bottom kickback fingers to allow for additional table surface to align the workpiece before feeding into the machine.

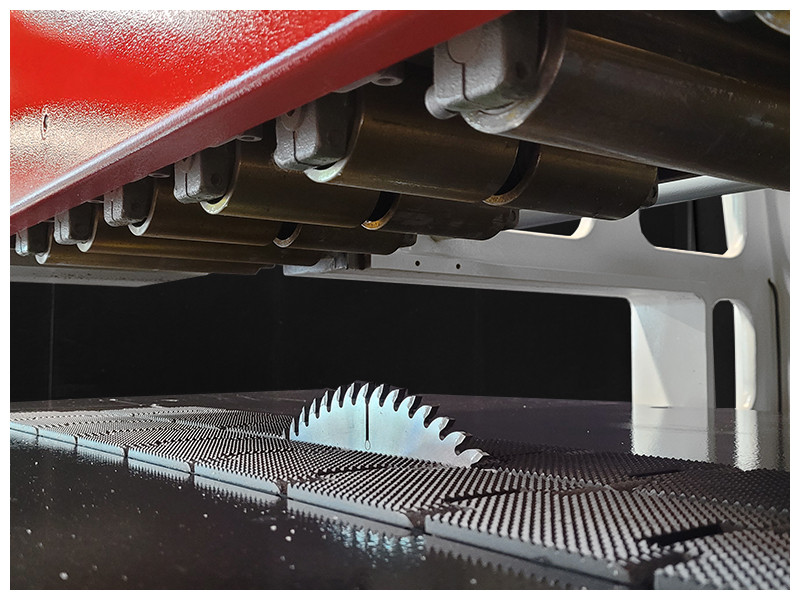

  • Hold down rolls and bottom mounted saw blade Equipped with 8 top steel hold down rollers which hold material firmly and precisely on the fast iron feed chain. This results in a precision glue joint cut. The bottom mounted saw bade can be raised and lowered according to the material thickness. The rotation of the sawblade in fact forces the material down on the chain surface which results in an even safer operation with greatly reduced tendency for material kickbacks.

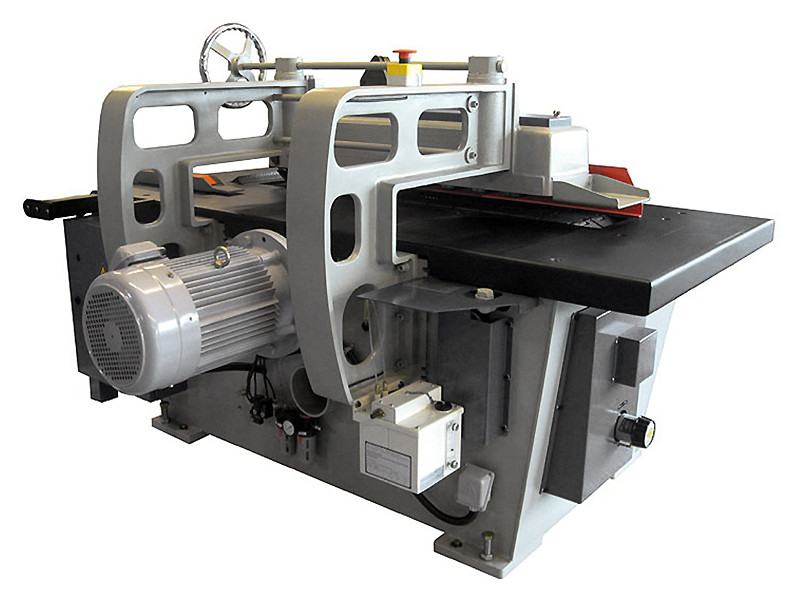

  • Back side view of machine Showing 15 HP direct drive motor and heavy-duty structure

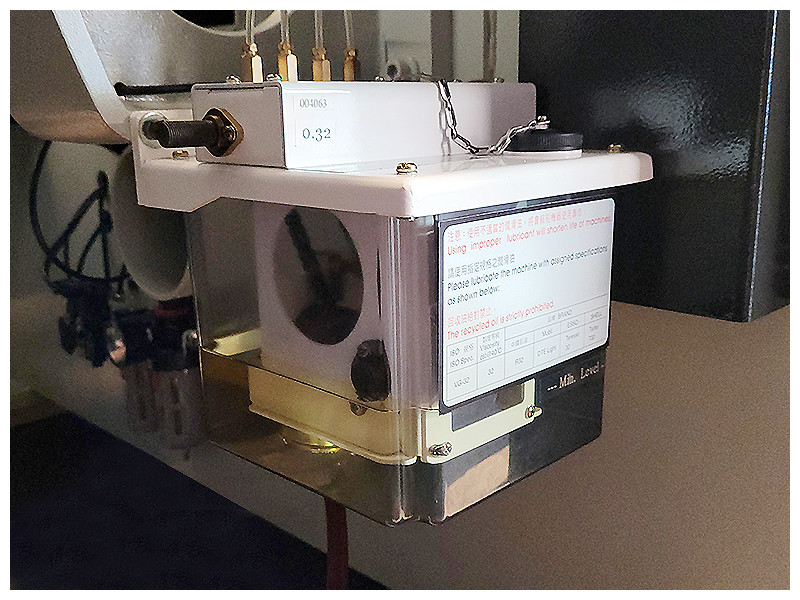

  • Automatic chain guide rail lubrication system The chain track is automatically lubricated ensuring maximum wear resistance.
  • High-quality Schneider electrical controls High-quality Schneider electrical components are readily available in the marketplace.

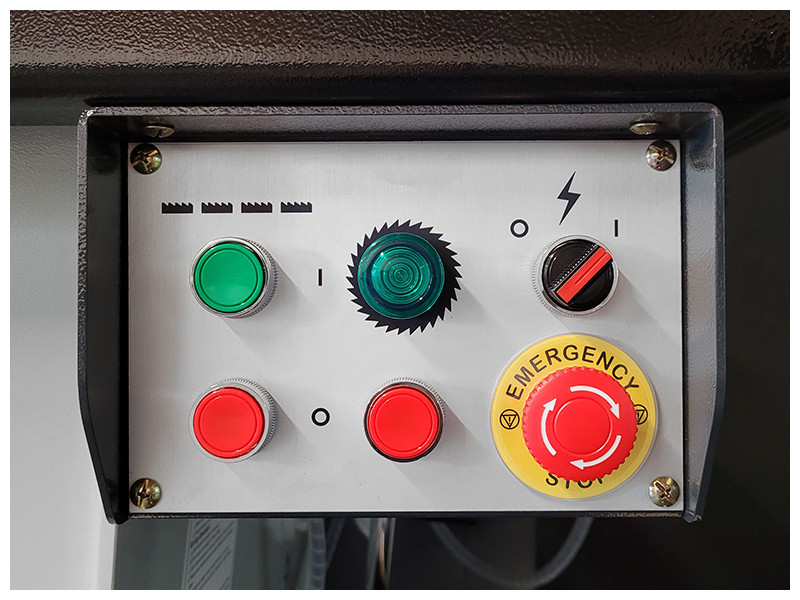

  • Control panel The machine controls are conveniently located underneath the table on the left side of the machine for operator convenience. This includes the start and stop for the main and feed motors and an emergency shut off switch.

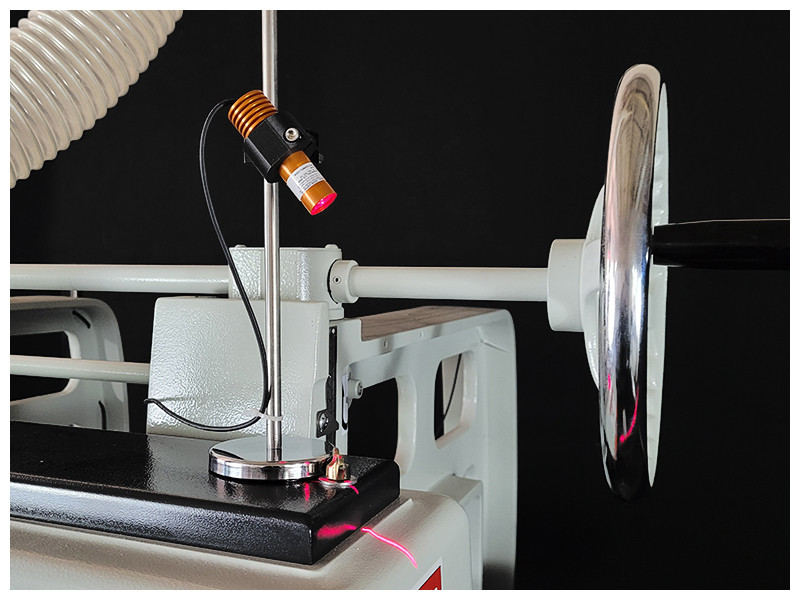

  • Optional laser unit 20 MW laser to project the cutting line to achieve maximum potential yield from your material. A stand is included with the machine. Laser and holder are optional
  • Rip Fence Rip fence adjustment is by convenient handwheel with rack and pinion system. Dual inch/metric scales on either side of the blade for accurate adjustment.
  • Top and bottom anti-kickback safety fingers Equipped with upper and lower kickback fingers and side guard to help prevent against material kickbacks.

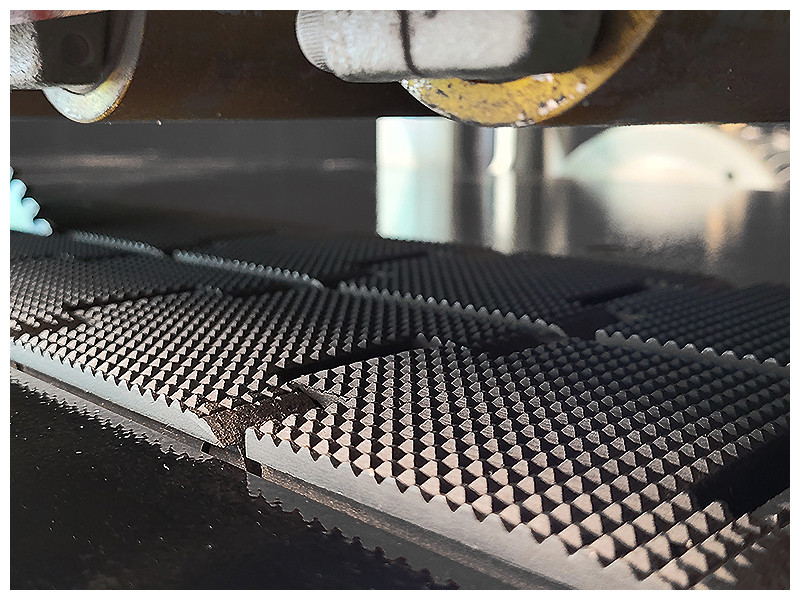

  • Split feed chain The cast iron chain pads are machined with a v-groove design on the underside which runs in v-grooved chain rails resulting in a precision straight-line cut

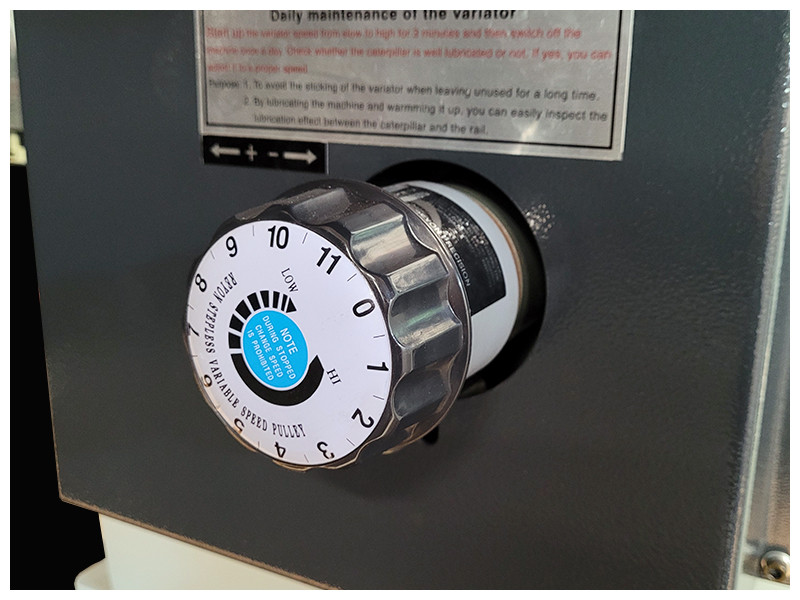

  • Variable feed speed adjustment Operator can conveniently adjust the feed speed of the machine for optimum output and finishing results. The feed speed ranges from 36 to 105 FPM

    • CANTEK | R16 BOTTOM CUTTING STRAIGHT LINE RIPSAW

    CANTEK

    $26,200.00
    Request A Quote
    (No reviews yet) Write a Review
    SKU:
    CANTEK | R16 BOTTOM CUTTING STRAIGHT LINE RIPSAW

    Product Description

    CANTEK | R16 BOTTOM CUTTING STRAIGHT LINE RIPSAW

    A precision straight line ripsaw for high production with improved safety features.

    The Cantek R16 bottom cutting straight line ripsaw is designed with performance and added safety in mind. Cutting from below forces the workpiece down on to the feed chain for superior hold down. In addition, the blade can project up above the workpiece to allow the gullet to clear the chips which leads to less heat buildup resulting in longer blade life and improved cut quality. The R16 is capable of producing a glue joint cut up to 8 feet. The powerful 15HP direct drive ensures optimum feed rates no matter what material or thickness you are cutting.

    Why Cantek R16 Bottom Cutting Straight Line Ripsaw?

    · Cutting from below has a distinct advantage in that the gullet of the sawblade projects above the stock to clear the shavings halfway through the cut providing for superior finish results and extended blade life

    · Bottom cutting also forces the material down on to the chain surface providing for safer operation

    · Powerful 15HP motor allows for optimum feed speeds no matter what the material or thickness

    · Extended hold down assembly with guaranteed glue joint ripping from 1’ to 8’

    · Precision cast-iron split feed chain with automatic lubrication for maximum wear protection

    · Auto-lowering bottom anti-kickback finders to facilitate with lining up the workpiece on the table

    Key Advantages

    · Extra heavy-duty machine frame made of thick welded steel and cast iron

    · Split chain, double feed track with HRC60 Rockwell Hardened Guideways

    · Massive steel table with 18” maximum distance to the right of the blade

    · (8) hold down rolls and 35” long chain above the table ensures precision straight-line ripping

    · Automatic chain and track lubrication system ensures long life of the chain & track assembly

    · Saw arbor height is adjusted manually

    · Manual rip fence adjustment by handwheel and rack & pinion with dual inch/metric scale

    · Manual thickness adjustment with linear scale

    · Saw arbor brake included

    · Anti-kickback fingers top and bottom for safe operation

    · Safety interlock on access door

    · Comes with 14” rip saw blade: 14mm pin holes on 65mm centers

    · Optional laser light to project the cutting line to help with cutting yield



    Cantek R16 Bottom Cutting Straight Line Ripsaw | Specifications



    DESCRIPTION                                            INCH                                          METRIC

    Glue joint cut length                               8” to 96”                                   200~2440mm

    Maximum sawblade diameter                    14”                                               355”

    Maximum cutting thickness                         3”                                              75mm

    Sawblade bore                                             2”                                             50.8mm

    Main saw motor                                                                 15 HP

    Feed motor                                                                      1.5 HP

    Feed speed (variable)                            36~105 FPM                                  11-32 m/min

    Saw arbor brake system                                                 Standard

    Number of pressure rolls                                                  8 rolls

    Distance from saw blade to column           18.1”                                            460mm

    Table dimensions                                    69” x 35.4”                                    1750x900mm

    Table height from floor                               33.46”                                           850mm

    Table width to left of blade                         17.9”                                           455mm

    Table width to right of blade                       17.5”                                           445mm

    Dust ports                                Top: 4”; Bottom: 6” = 1000 CFM         100mm: 150mm = 1000 CFM

    CFM Required                                                                     1400 CFM

    Machine dimensions (LxWxH)                75”x55”x51”                              1900x1381x1285mm

    Machine weight                                          2200 lbs                                       1000 kgs

    Shipping dimensions (LxWxH)                81”x65”x63”                                2060x1640x1580mm

    Shipping weight                                           2425 lbs                                        1100 kgs

    Electrics                                             460/3/60 @ 24 Amps                            230V @ 48 Amps
