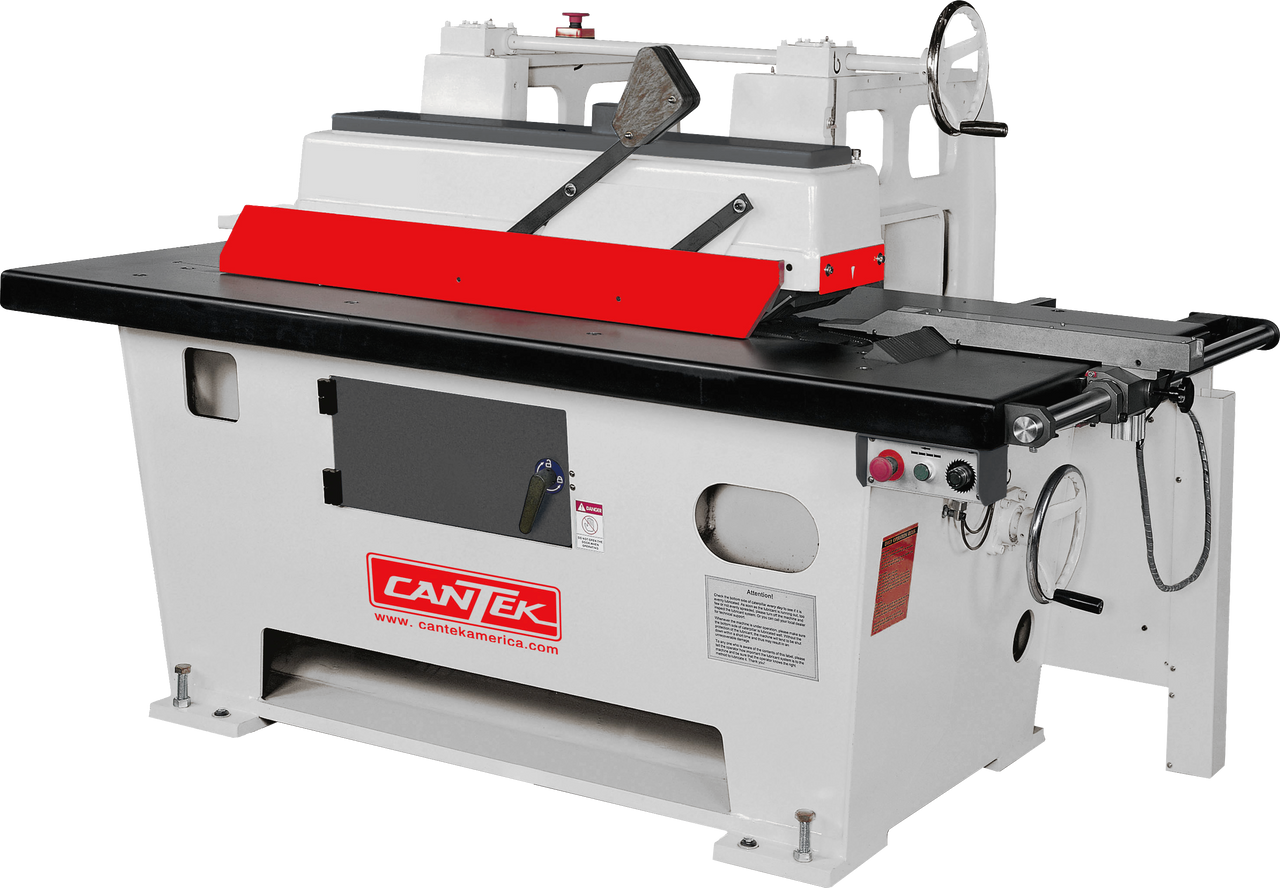

• CANTEK | R18 BOTTOM CUTTING STRAIGHT LINE RIPSAW
  • Hold down rolls and bottom mounted saw blade Equipped with 11 top steel hold down rollers which hold material firmly and precisely on the fast iron feed chain. This results in a precision glue joint cut. The bottom mounted saw bade can be raised and lowered according to the material thickness. The rotation of the sawblade in fact forces the material down on the chain surface which results in an even safer operation with greatly reduced tendency for material kickbacks.
  • Automatic chain guide rail lubrication system The chain track is automatically lubricated ensuring maximum wear resistance
  • Auto Lowering Bottom Kickback Fingers A sensor will detect when a workpiece is on the table which will automatically lower the bottom kickback fingers to allow for additional table surface to align the workpiece before feeding into the machine.
  • Back side view of machine Showing 20 HP direct drive motor and heavy-duty structure
  • High-quality Schneider electrical controls High-quality Schneider electrical components are readily available in the marketplace
  • Control panel The machine controls are conveniently located underneath the table on the left side of the machine for operator convenience. This includes the start and stop for the main and feed motors and an emergency shut off switch.
  • CANTEK | R18 BOTTOM CUTTING STRAIGHT LINE RIPSAW
  • Rip Fence Rip fence adjustment is by convenient handwheel with rack and pinion system. Dual inch/metric scales on either side of the blade for accurate adjustment.
  • Top and bottom anti-kickback safety fingers Equipped with upper and lower kickback fingers and side guard to help prevent against material kickbacks.
  • Split feed chain The cast iron chain pads are machined with a v-groove design on the underside which runs in v-grooved chain rails resulting in a precision straight-line cut.
  • Variable feed speed adjustment Operator can conveniently adjust the feed speed of the machine for optimum output and finishing results. The feed speed ranges from 42 to 164 FPM.
  • CANTEK | R18 BOTTOM CUTTING STRAIGHT LINE RIPSAW

    • CANTEK | R18 BOTTOM CUTTING STRAIGHT LINE RIPSAW

    CANTEK

    $31,200.00
    Request A Quote
    (No reviews yet) Write a Review
    SKU:
    CANTEK | R18 BOTTOM CUTTING STRAIGHT LINE RIPSAW

    Product Description

    CANTEK | R18 BOTTOM CUTTING STRAIGHT LINE RIPSAW

    A precision straight line ripsaw for high production with improved safety features.

    The Cantek R18 bottom cutting straight line ripsaw is designed with performance and added safety in mind. Cutting from below forces the workpiece down on to the feed chain for superior hold down. In addition, the blade can project up above the workpiece to allow the gullet to clear the chips which leads to less heat buildup resulting in longer blade life and improved cut quality. The R18 is capable of producing a glue joint cut up to 12 feet. The powerful 20HP direct drive ensures optimum feed rates no matter what material or thickness you are cutting.

    Why Cantek R18 Bottom Cutting Straight Line Ripsaw?

    · Cutting from below has a distinct advantage in that the gullet of the sawblade projects above the stock to clear the shavings halfway through the cut providing for superior finish results and extended blade life

    · Bottom cutting also forces the material down on to the chain surface providing for safer operation

    · Powerful 20HP motor allows for optimum feed speeds no matter what the material or thickness

    · Extended hold down assembly with guaranteed glue joint ripping from 1’ to 12’

    · Precision cast-iron split feed chain with automatic lubrication for maximum wear protection

    · Auto-lowering bottom anti-kickback finders to facilitate with lining up the workpiece on the table

    Key Advantages

    · Extra heavy-duty machine frame made of thick welded steel and cast iron

    · Split chain, double feed track with HRC60 Rockwell Hardened Guideways

    · Massive steel table with 26” maximum rip capacity

    · (11) hold down rolls and 41” long chain above the table ensures precision straight-line ripping

    · Automatic chain and track lubrication system ensures long life of the chain & track assembly

    · Saw arbor height is adjusted manually

    · Manual rip fence adjustment by handwheel and rack & pinion with dual inch/metric scale

    · Manual thickness adjustment with linear scale

    · Saw arbor brake included

    · Anti-kickback fingers top and bottom for safe operation

    · Safety interlock on access door

    · Comes with 14” rip saw blade: 14mm pin holes on 65mm centers

    · Included laser light to project the cutting line to help with cutting yield



    Cantek R18 Bottom Cutting Straight Line Ripsaw | Specifications



    DESCRIPTION                                            INCH                                          METRIC

    Minimum length                                           6″                                             150mm

    Maximum sawblade diameter                    18″                                             455mm

    Sawblade included with machine              14″                                             355mm

    Maximum cutting thickness:

    14” Blade                                                   3”                                                75mm

    16” Blade                                                   4”                                               100mm

    18” Blade                                                   5”                                               125mm

    Sawblade bore                                           2″                                              50.8mm

    Main motor                                                                      20 HP

    Feed motor                                                                         3 HP

    Feed speed (variable)                         42~164 FPM                                    13-50 m/min

    Saw arbor brake system                                                Standard

    Number of pressure rolls                                                 8 rolls

    Distance from saw blade to column          26″                                                660mm

    Table dimensions                                 78 ¾” x 40″                                    2000 x 1015mm

    Table height from floor                          33.46″                                               850mm

    Table width to left of blade                    16.73″                                               425mm

    Table width to right of blade                  23.23″                                              590mm

    Dust ports                              Top: 4″; Bottom: 6″ = 1000 CFM              100mm: 150mm = 1000 CFM

    CFM Required                                                                   1400 CFM

    Machine dimensions (LxWxH)        91″ x 66″ x 53″                                 2299x1678x1343mm

    Machine weight                                      3750 lbs                                             1700 kgs

    Shipping dimensions (LxWxH)      89″ x 66″ x 65″                                 2240x1670x1650mm

    Shipping weight                                  3970 lbs                                               1800 kgs

    Electrics                                       460/3/60 @ 32 Amps                             230V & 575V optional
