Product Description

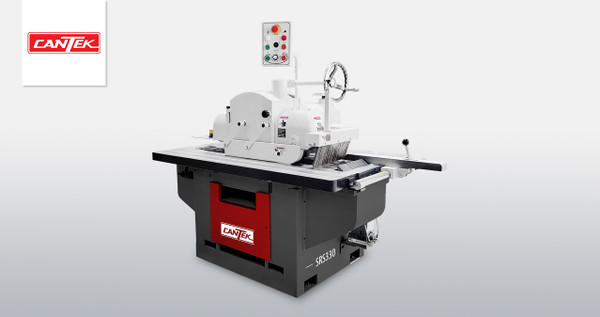

CANTEK | SRS330 STRAIGHT LINE GLUE JOINT RIPSAW
Precision glue joint ripsaw built for power and speed.
The Cantek SRS330 Straight Line Glue Joint Ripsaw is a single-blade ripsaw is geared towards the shop looking to increase efficiency in their ripping operations but cannot justify a multi-blade ripsaw. With its precision cast iron chain and track assembly, and extended pressure section, the SRS330 can produce a glue joint finish ready for panel glue-up right out of the saw.
Why Cantek SRS330 Straight Line Glue Joint Ripsaw?
· Produces a guaranteed glue joint finish to 13′, which eliminates the need to joint the material after ripping
· Precision straight line feeding for parallel and accurate rip cuts
· Eight hold down rollers over six rows ensure material is firmly held during cutting operations for a longer period resulting in a straighter, more precise cut
· Powerful 20HP saw motor for even the most demanding rip applications
· Maintenance-free chain track with the use of a reliable mechanical lubrication system

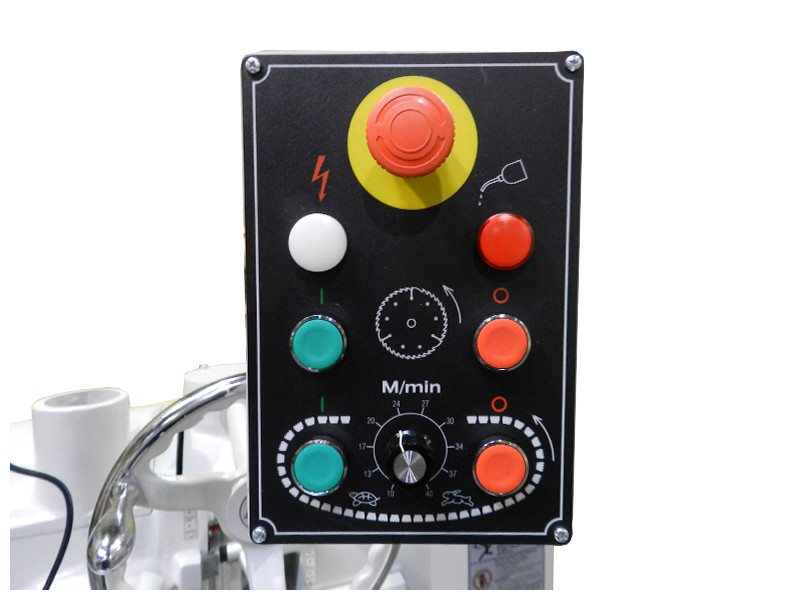

· Variable feed speed by frequency inverter for optimum cutting results.
Key Advantages
· Cast iron saw assembly, column, and table with superior vibration damping properties for optimum cutting results while ensuring long bearing and machine life.
· Very rigid machine body with a welded steel frame
· Absolute straight line feeding with glue joint to 13 ft.
· FC35 cast iron chain track with double-V design ensures precision straight-line ripping with a long wear life

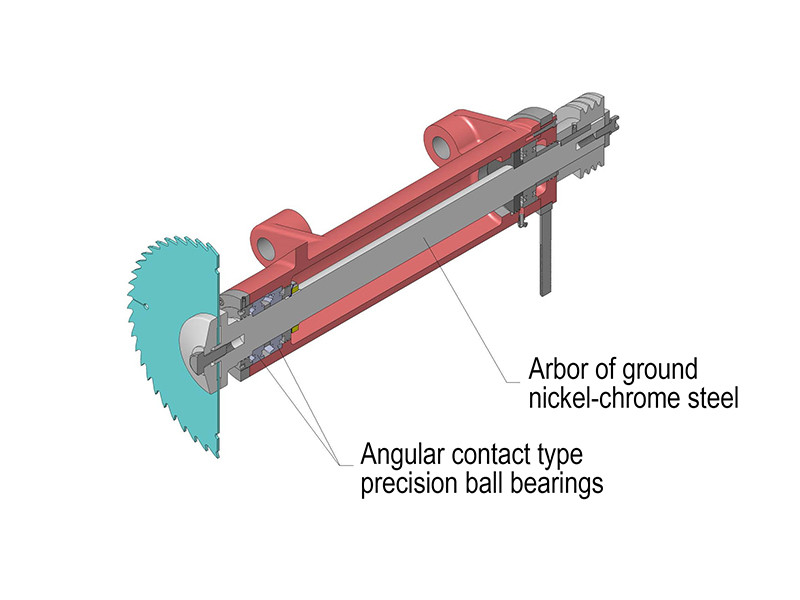

· Precision Built Saw Arbor constructed of nickel-chrome steel, large diameter, accurately ground and dynamically balanced.
· Arbor runs in precision angular contact type ball bearings (eliminates any radial run-out & axial thrust) – V Belt driven from below.
· Mechanical operation chain oiler provides consistent lubrication to the chain track and automatically adjusts to your feed speed.
· When oil runs low, a warning light will come on, and when it gets too low, the machine track stops running to avoid damage to the track.
· Cast iron rip fence is mounted to a large diameter round guide rail with a quick-locking lever for effortless and accurate adjustment.
· 3 sets of anti-kickback fingers: 2 top and 1 set in the table for added operator safety.
· Soft start – Star Delta starter reduces the amp draw on start-up.
· Optional laser light to project the cutting line to achieve maximum material yield.
Cantek SRS330 Straight Line Glue Joint Ripsaw | Specifications
DESCRIPTION SPECIFICATION
Max. workpiece thickness: 10″ blade 2.36″
Max. workpiece thickness: 12″ blade 3.35″
Max. workpiece thickness: 13″ blade 3.94″
Max. workpiece thickness: 14″ blade 4.33″
Minimum work piece length 8″
Distance between saw and column 18.1″
Saw arbor diameter 1″
Saw blade diameter 10″ – 14″
Saw arbor speed 4300 RPM
Useable chain length 47″
Glue line guarantee 13′ (+/- 0.0098″)
Feed speeds variable 33~130 FPM
Arbor motor 20 HP
Feed motor 2 HP
Dust collection outlet 4″ = 400 CFM
Table size 36.6″ x 64.6″
Table height 31-7/8″
Machine weight 3190 lbs
Machine dimensions 78 ¾” x 44″ x 64″
Shipping weight 3630 lbs
Shipping dimensions 76 ¾” x 53″ x 67 ¾”
Electrical requirements 230/3/60 = 60.8 Full Load Amps
460/3/60 = 30.4 Full Load Amps
