• CANTEK | SS512CSB SLIDING TABLE SHAPER
  • Front cast iron sliding table The sliding table is cast iron and is precision machined and polished. The sliding table runs on (6) tapered precision bearings for smooth table movement without vibration. A cast-iron mitre gauge is mounted on the sliding table with an eccentric clamp. The mitre gauge can rotate +/- 45o. Sliding table dimensions are 39.4" x 10 ¼" and have a 37" stroke.
  • Conveniently located operator controls All controls are conveniently located at the front of the machine, just under the work table. Controls include emergency stop, spindle rotation reversing switch, spindle height adjustment handwheel and dial height gauge, and spindle lock.
  • Equipped with plug for power feeder and table is pre-drilled for feeder stand The SS512CSB shaper comes equipped with a quick-connect plug that can accept our Cantek DC power feeders. The advantage of having the feeder wired through the machine is that the feeder will stop when the emergency button on the shaper is pressed.

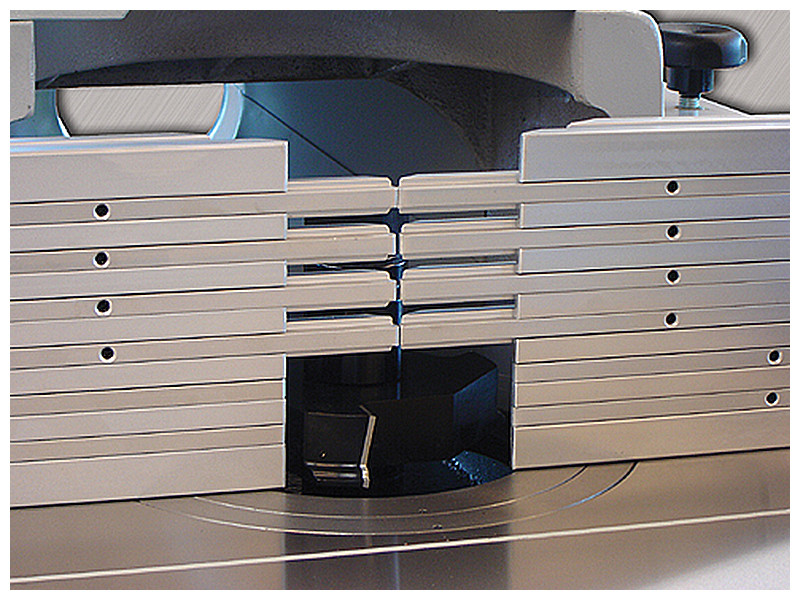

  • Finger type adjustable fence The infeed and outfeed fences are equipped with a finger-type fence which can be conveniently and quickly adjusted around the cutterhead. This minimizes the gap to provide added safety and increased stability when the part is being fed. The fingers are unlocked by an alum screw and can be quickly set in place where desired.
  • Interchangeable spindle with optional collet attachment The machine comes with (1) 1 ¼" interchangeable spindle and spacer set. The spindle is held in place by a nut and safety draw bar. Other spindle diameters and collet attachments are also available upon request
  • Powerful 7.5 HP motor with 5 spindle speeds The spindle is driven by a powerful 7.5HP motor with a 5-step pulley system allowing for spindle speeds of 3000/4000/6000/8000/10000 RPM. The speeds are quickly adjusted with a cam lever system. The spindle housing and motor plate are made from industrial cast iron for superior vibration damping for a superior finish and machine & bearing longevity.

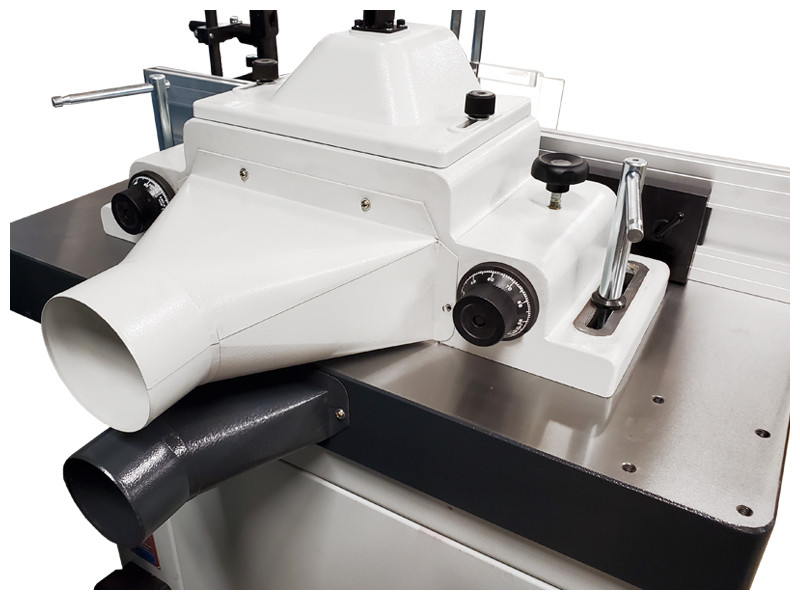

  • Precision fence with micro-adjustment of infeed and outfeed fences The fence assembly is also made from cast iron, adding to the robustness of this shaper series. The infeed and outfeed fences can be micro metrically adjusted in and out by dial. The fence assembly can also be positioned in and out by releasing the locking handles. Two dust ports are included with the machine for the fence and table, providing superior dust removal. The table is pre-drilled to accept a power feeder
  • Precision Spindle Assembly with Table Rings The precision spindle assembly runs in (3) high-performance spindle bearings. The spindle is interchangeable, removable to allow for easy adaptation of additional spindles and collet attachment (available upon request). Equipped with an electronic braking system for safer operation and reduced changeover times. The table rings are removable to minimize the gap in the table according to the diameter of the cutterhead being used.

    • CANTEK | SS512CSB SLIDING TABLE SHAPER

    CANTEK

    $11,400.00
    Request A Quote
    (No reviews yet) Write a Review
    SKU:
    CANTEK | SS512CSB SLIDING TABLE SHAPER

    Product Description

    CANTEK | SS512CSB SLIDING TABLE SHAPER



    Production 7.5 HP shaper.

    The Cantek SS512CSB shaper is a ruggedly built shaper with refined features well suited for demanding production environments.

    Its' versatile design makes it the ideal shaping solution for edge-profiling, door & furniture components, mouldings, tenoning, and more. The powerful dual-direction 7.5HP driven spindle allows for optimum shaping even with large profiles. The heavy-duty cast-iron table and shaping column ensure maximum stability with superior vibration damping for optimum finish quality.



    Why Cantek SS512CSB Sliding Table Shaper?



    · Cast iron sliding table runs on bearings for vibration-free and smooth movement.

    · 1 ¼" interchangeable spindle is standard (other sizes available).

    · Large cast-iron table is ground and polished for maximum stability and durability.

    · Powerful 7.5 HP motor for even the most demanding profiling work.

    · Five spindle speeds can be easily adjusted to suit your tool diameter.

    · Electronic spindle brake for added safety and facilitates fast changeover.

    · Precision fence assembly with micro infeed and outfeed fence adjustment.

    · Fingerstyle fence allows the fence to be adjusted around the cutter for added safety and workpiece stability.

    Key Advantages

    · Cast iron ground & polished table with insert rings & t-slot for mitre / tenoning jig.

    · Precision ground and electronically balanced spindle.

    · V-belt drive with (5) spindle speeds is easily accessed from the front of the machine (3/4/6/8/1000 R.P.M.).

    · Electric spindle brake for added safety.

    · Spindle lock – with limit switch safety, the machine will not start with the lock engaged.

    · Micro spindle height adjustment with a dial indicator for precise height adjustment.

    · 1 ¼" Interchangeable cutter spindle is standard.

    · Forward/reverse spindle rotation.

    · Adjustable "finger" type fence.

    · Independent micro-fence adjustment on both sides.

    · Plug to accept Cantek Power Feeder and table is pre-drilled for mounding feeder base.

    · Includes the following standard equipment:

    · 1 ¼" spindle.

    · (1) 5" dust chute on guard & (1) 4" dust chute in the table.

    · Safety guard.

    · Mitre tenoning jig.



    Cantek SS512CSB Sliding Table Shaper | Specifications



    DESCRIPTION                                                SPECIFICATION

    Table size                                                        31 ½” x 39.4″

    Spindle speeds (5)                            3000/4000/6000/8000/10000 RPM

    Spindle taper                                                        5 M.T.

    Spindle diameter                                                    1 ¼”

    Motor                                                                   7.5 HP

    Sliding table dimensions                                  39.4” x 10 ¼”

    Sliding table stroke                                               37"

    Largest diameter of cutter:                            Above table 13 ¼”

                                                                           Below table 8 ¼"

    Fence size                                                             6″ x 43″

    Vertical spindle stroke                                           7"

    Useable length of spindle                                    5 ½" long

    Dust port                                       (1) 5″ on guard, (1) 4" in table = 1120 CFM

    Total HP                                                               7.5 HP

    Net weight                                                           1034 lbs.

    Machine dimensions                                  48.4″ x 39.4″ x 52 ¾”

    Shipping weight                                                   1166 lbs.

    Shipping dimensions                                      45 ¼" x 37″ x 41″

    Machine electrics                                        230/3/60 = 22 amps

                                                                         575/3/60 = 9 amps
