CANTEK | SS512TB TILTING SPINDLE SHAPER
Production 7.5 HP tilting spindle shaper.
The Cantek SS512TB tilting spindle shaper is a ruggedly built shaper with refined features well suited for demanding production environments. Its' versatile design makes it the ideal shaping solution for edge-profiling, door & furniture components, mouldings, tenoning, and more. The powerful dual-direction 7.5HP driven spindle allows for optimum shaping even with large profiles. The heavy-duty cast-iron table and shaping column ensure maximum stability with superior vibration damping for optimum finish quality.
Why Cantek SS512TB Shaper?
· Tilting spindle from -5° to +45°.
· 1 ¼" interchangeable spindle is standard (other sizes available).
· Large cast-iron table is ground and polished for maximum stability and durability.
· Powerful 7.5 HP motor for even the most demanding profiling work.
· Five spindle speeds can be easily adjusted to suit your tool diameter.
· Electronic spindle brake for added safety and facilitates fast changeover.
· Precision fence assembly with micro infeed and outfeed fence adjustment.

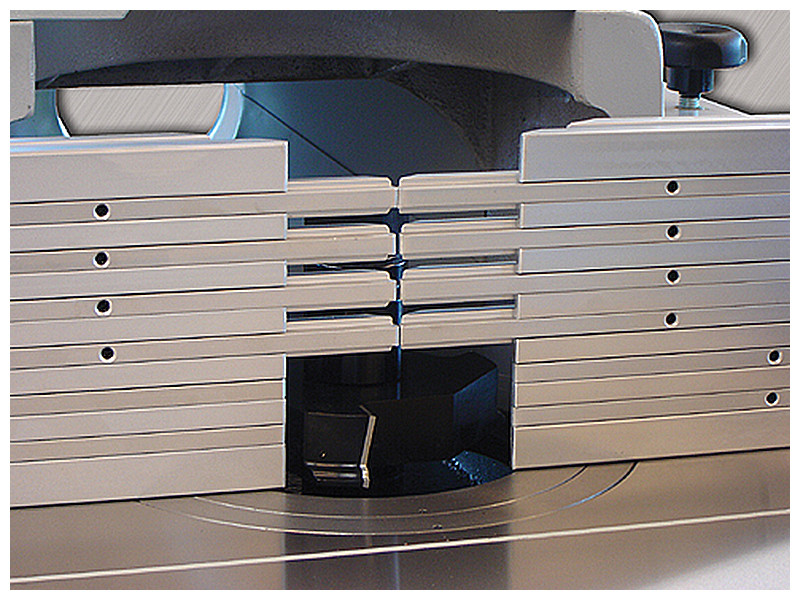

· The finger-style fence allows the fence to be adjusted around the cutter for added safety and workpiece stability
Key Advantages
· Cast iron ground & polished table with insert rings & t-slot for mitre / tenoning jig.
· Precision ground and electronically balanced spindle.
· V-belt drive with (5) spindle speeds is easily accessed from the front of the machine (3/4/6/8/1000 R.P.M.).
· Electric spindle brake for added safety.
· Spindle lock – with limit switch safety, the machine will not start with the lock engaged.
· Micro spindle height adjustment with a dial indicator for precise height adjustment.
· 1 ¼" Interchangeable cutter spindle is standard.
· Forward/reverse spindle rotation.
· Adjustable "finger" type fence.
· Independent micro-fence adjustment on both sides.
· Plug to accept Cantek Power Feeder and table is pre-drilled for mounding feeder base.
· Includes the following standard equipment:
· 1 ¼" spindle.
· (1) 5" dust chute on guard & (1) 4" dust chute in the table.
· Safety guard.
· Mitre tenoning jig.
Cantek SS512TB Shaper | Specifications
DESCRIPTION SPECIFICATION
Table size 31 ½” x 39.4″
Tilting spindle -5° to +45°
Spindle speeds (5) 3000/4000/6000/8000/10000 RPM
Spindle taper 5 MT
Spindle diameter 1 ¼”
Motor 7.5 HP
Largest diameter of cutter: Above table 13 ¼”
Below table 8 ¼"
Fence size 6″ x 43″
Vertical spindle stroke 7″
Useable length of spindle 5 ½" long
Dust port (1) 5″ on guard, (1) 4" in table = 1120 CFM
Total HP 7.5 HP
Net weight 1034 lbs.
Machine dimensions 48.4″ x 39.4″ x 52 ¾”
Shipping weight 1166 lbs.
Shipping dimensions 45 ¼" x 37″ x 41″
Machine electrics 230/3/60 = 22 amps
575/3/60 = 9 amps
