Product Description

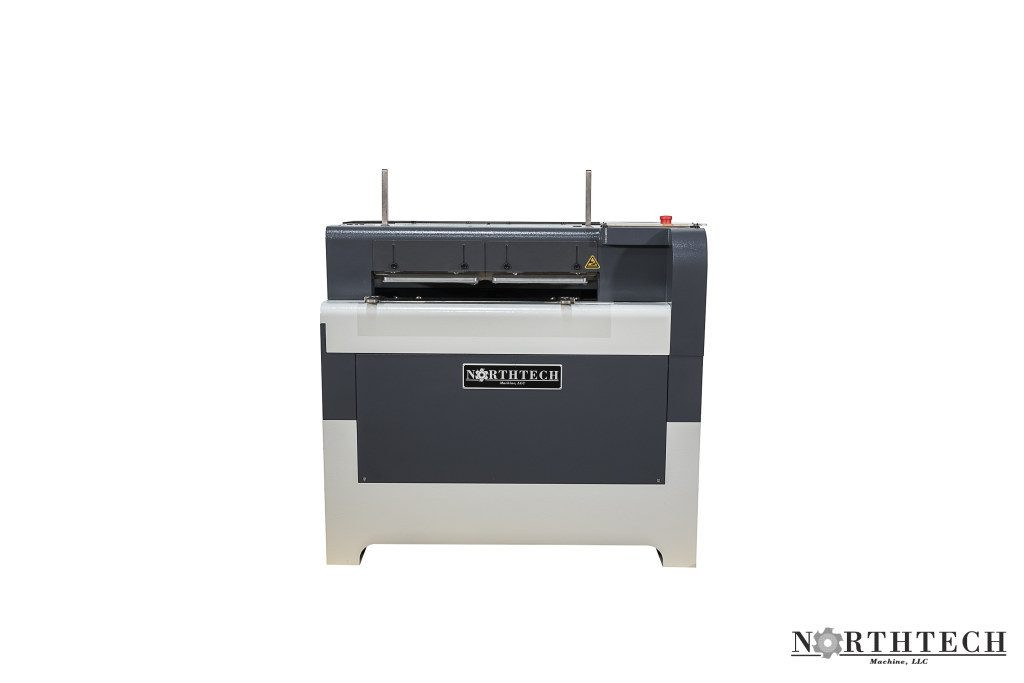

NT iDovetail24
• 4.2kw (6HP) driven spindle
• Programmable spindle controls with a maximum 24,000RPM
• Maximum processing width: 610mm (24")
• Tenon dimensions: See following profi le mode specifi c details
• Workable part dimensions: See following profi le mode specifi c details
• Spindle vertical adjustment: 100mm (4") servo positioned
• Usable bits: See following detail
• Recommend working pneumatics: 90PSI on a 3/8" air line
• 200 Programmable profi le memory
• Dust port (2) 4" requiring 436CFM @ point of extraction
• 195in/min dovetail bit acceleration
• Bit sharpening compensation adjustments via touchscreen interface
• Automatic bit recognition
• Horizontal & Vertical pneumatic clamping allows individual part release and mitered profi les
• Easy to understand error detection and display
• Net weight: 1,654lbs
• Gross weight: 1,764lbs
• Machine dimensions: (L) 48" x (W) 48" x (H) 43"
• Packing dimensions: (L) 56" x (W) 56" x (H) 51"
• (1) Tool box
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up.
Machine features
• 10.1" High sensitivity touch screen interface with smart phone
functionality.
• 3D Interface uses the same touch sensitive actions as your
smart phone, such as Tap / Double Tap / Swipe / Pinch / Zoom.
• Simply pick 1 of 8 profi les, touch the dimension you want to
change, enter new dimension and review the drawing to verify
profi le design.
• Real time 3-Dimensional design interface, produces 3D rendering
immediately upon single dimensional change.
• Real time 3D rendering allows for quick custom design layout on the fl y.
• System will check bit dimensions prior to operation to confi rm proper
bit is installed for the selected profi le.
• Reduces costly operator training and errors frequently had with
manual calculations.
• Clamp system tilts to 45° for angled clamping for mode 7 and 8
mitered profi les.
• The iDovetail is the only dovetailer in the world that can make a
mitered dovetail joint
• System will automatically calculate cutting path to prevent blowout,
even on custom profi les.
• Blow out free cycle can be turned on/off .
• Unlike other dovetailer's blow out prevention mode, the idovetail
calculates the blow out sensitive areas and changes entry and
exit points as well as slows speed down in these areas
• X-Y-Z Servo positioning is all controlled through idovetail interface.
• The separated dust hood design allows you to change the tool
without removing the dust hood.
• Oversized and fully enclosed dust hood captures dust from varying
trajectories on any profi les.
• This hinged access allows for ample room for a bit change while
providing exceptional dust control
• (2) Auto retracting positioning shelves mounted on dual linear
shafts ensure a precise part position.
• Central pump lubrication system keeps slide wear points
easily lubricated.
• Regulator, fi lter and primary shut off value for easy pneumatic
connection.
• Both horizontal part clamps are bi-directionally powered for quicker part
change.
• Clamps are tiltable for mitered profi les.
• Both vertical part clamps are bi-directionally powered for quicker
part change
• Pneumatic lines and electrical wiring are encased in industrial
cable track.
• ER25 chuck dovetail bit included.
• All electrics are installed in dust proof cabinets for dust free
operations and protected inside the body of the dovetailer.
• Electrical cabinet pulls out side of machine frame for full access
to electrical trouble shooting.
• Outside the touchscreen only (4) physical buttons for a streamline
operation; Emergency stop and clamp operation buttons
• Windows based fi le storage allow operator to easily fi nd saved
profi les through sorting and search capabilities that most operators
are already familiar with.
• Two stage pneumatic holddowns securely hold parts with a low
pressure for added operator safety while placing parts in machine.
• Directly before cycle start, pressure is automatically increased to
securely hold parts during processing.
Easy Tool Change
• Upon opening rear access hood, the spindle will automatically move
to the position closest to you for an easy and quicker bit change.
• 90/45 degree rotating clamp support for mitered profiles.
• When you change or create a new bit, you can see it in the visual fi le.
• This 3D bit rendering makes it easy to enter new bit dimensions.
• Once a profi le is selected, system will measure installed bit to confi rm
proper bit is installed.
• Programs allow for profi le specifi c RPM and feed systems.
• Windows based operating system gives operator navigation comfort.
• Operational log allows factory technicians trouble shooting capability
preventing onsite tech visits.
• Fence is calculated by iDovetail's program and automatically moves
fences into the correct position.
• Vertical fences are fixed.
• True 90° is very important for drawers and frames.
• If you cannot ensure that your workpiece is a true 90° cut, you can easily
solve it by using the bottom cut mode.
• When selected, the bottom will be resquared by cutting 1mm (.04") before
cutting tenons.
• The iDovetail off ers the most versatile loading options eliminating
the need to move fences in 6 diff erent profi le modes.
• Simultaneous cutting of female and male tenons.
• Independent part cutting.
• Back-to-back cutting of male tenons
