Product Description

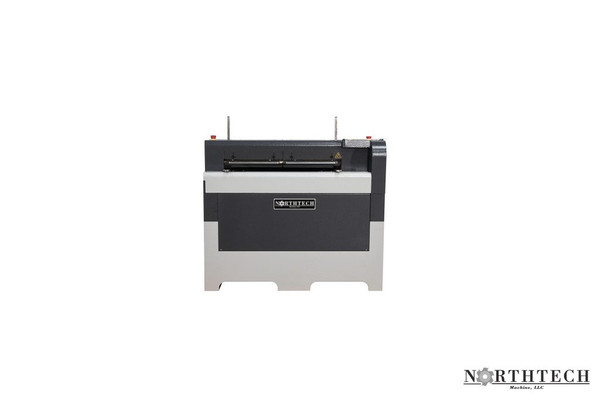

NT iDovetail30
• 4.2kw (6HP) powered spindle
• Programmable spindle controls with a maximum 18,000RPM
• Maximum processing width: 750mm (30")
• Tenon dimensions: See following profi le mode specifi c details
• Workable part dimensions: See following profi le mode specifi c details
• Spindle vertical adjustment: 100mm (4") servo positioned
• Usable bits: See following detail
• Recommend working pneumatics: 90PSI on a 3/8" air line
• Dust port: (1) 4" requiring 436CFM @ point of extraction
• 195in/min dovetail bit acceleration
• Bit sharpening compensation adjustments via touchscreen interface
• Automatic bit recognition
• Horizontal & Vertical pneumatic clamping allows individual part release and mitered profi les
• Easy to understand error detection and display
• Net weight: 1,716lbs
• Gross weight: 1,826lbs
• Machine dimensions (LxWxH): 54" x 48" x 43"
• Packing dimensions (LxWxH): 62" x 56" x 51"
• (1) Tool box
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up
