Product Description

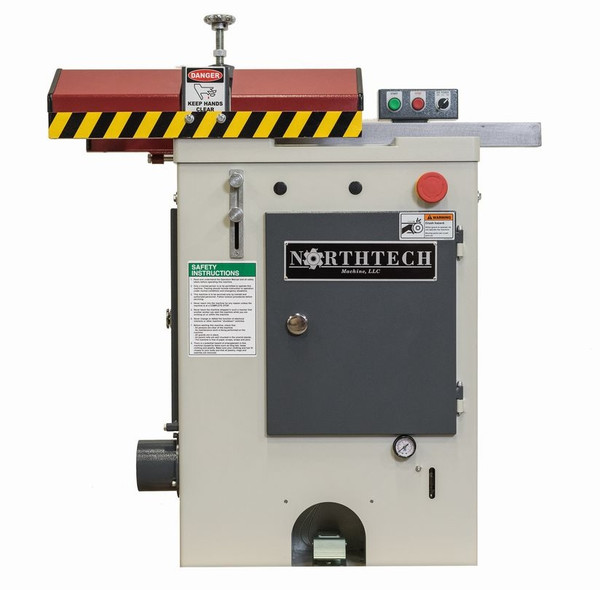

NT-UCS14 UP CUT SAW
PRODUCT DIMENSIONS

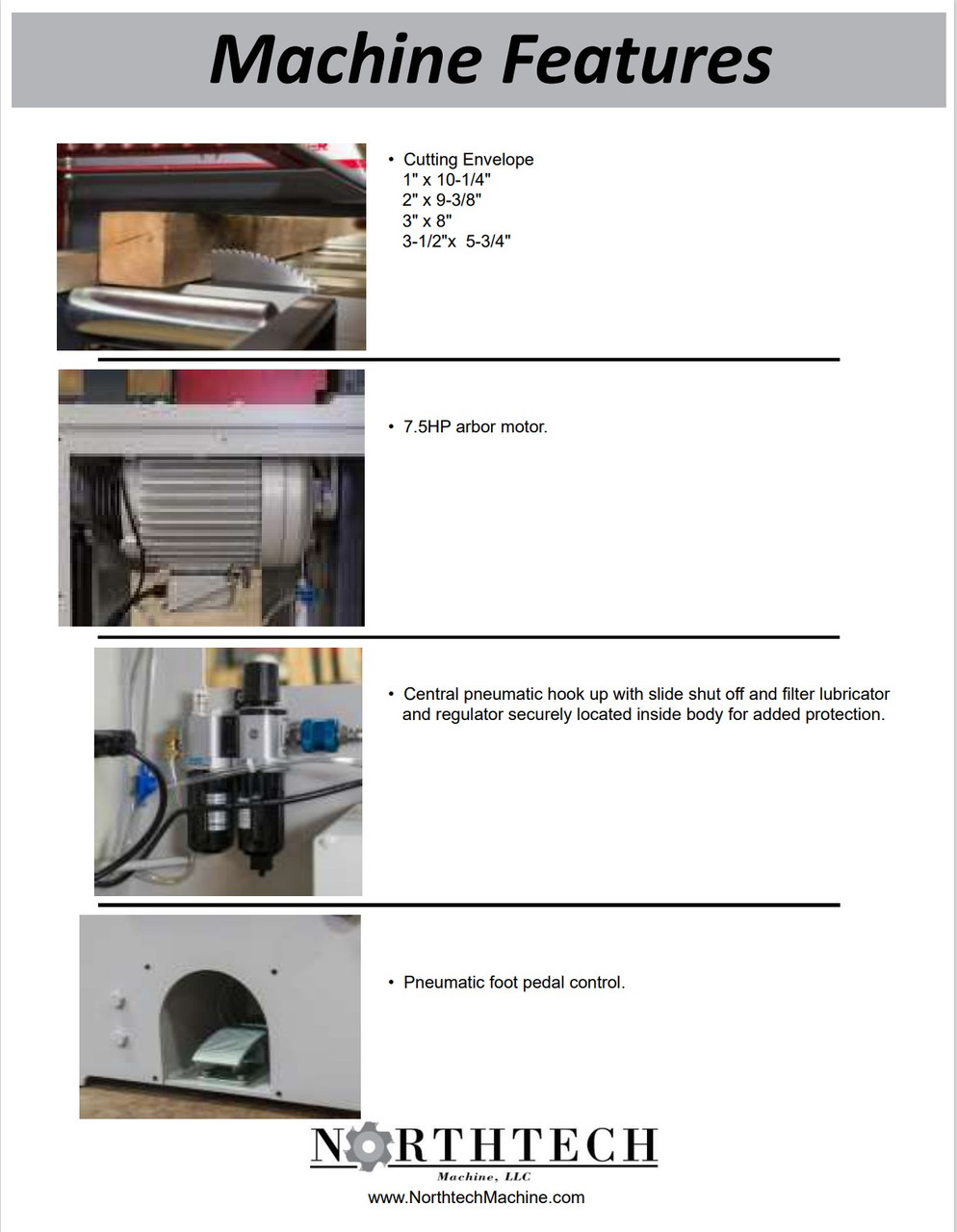

• Max cutting capacity: 1" x 10-1/4", 2" x 9-3/8", 3" x 8", 3-1/2" x 5-3/4"
FEATURES
• 7.5HP motor, 3PH 230V with 24V magnetic controls

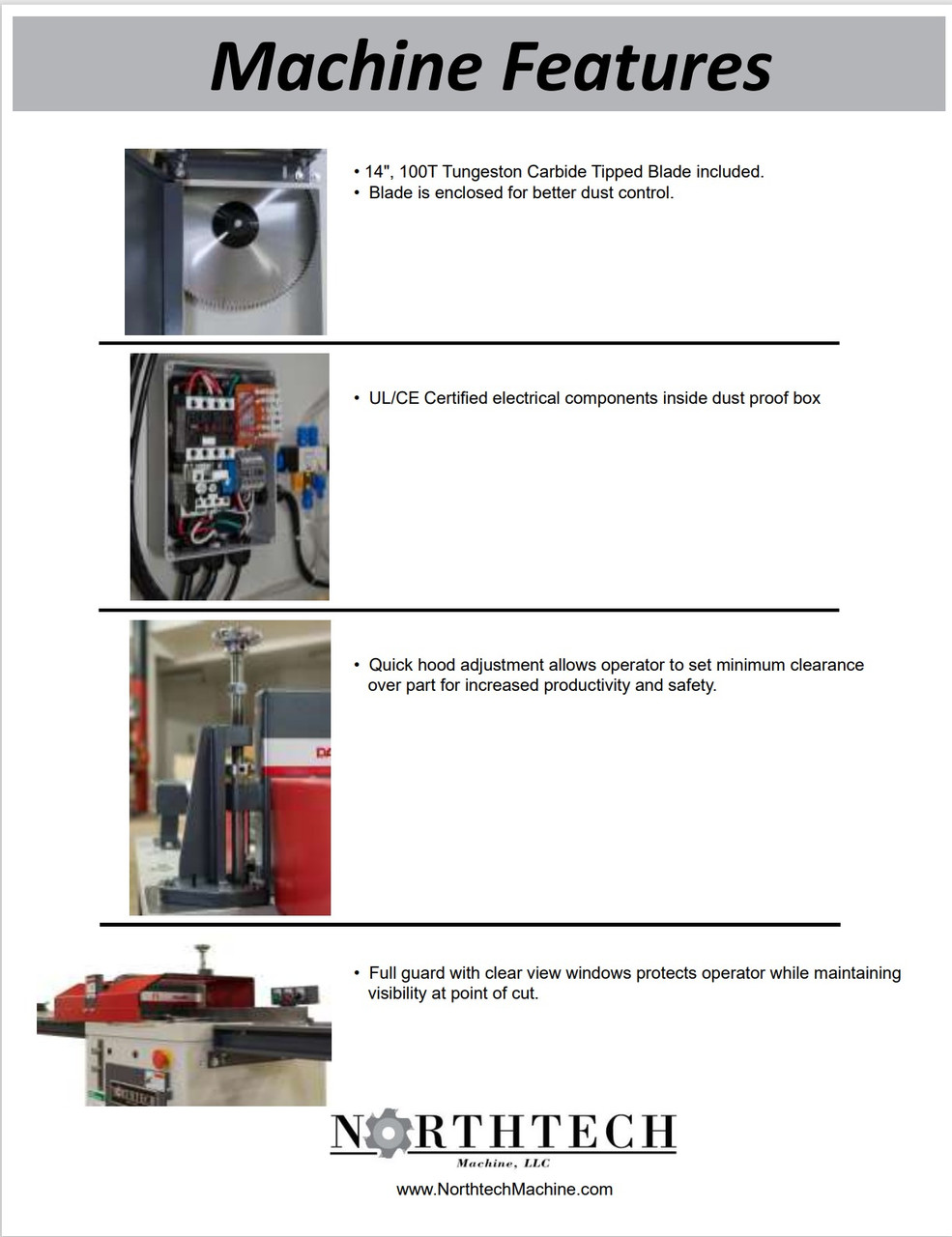

• 14” 100T Carbide tipped blade included
• 1” Saw arbor diameter
• Cycle operation: Pneumatically adjustable up to 78 cycles/minute
• Arbor RPM: 4260RPM
• Table size: 25” x 23-1/4”
• Fence dimensions: 2" x 25"
• Passline: 33-3/4"

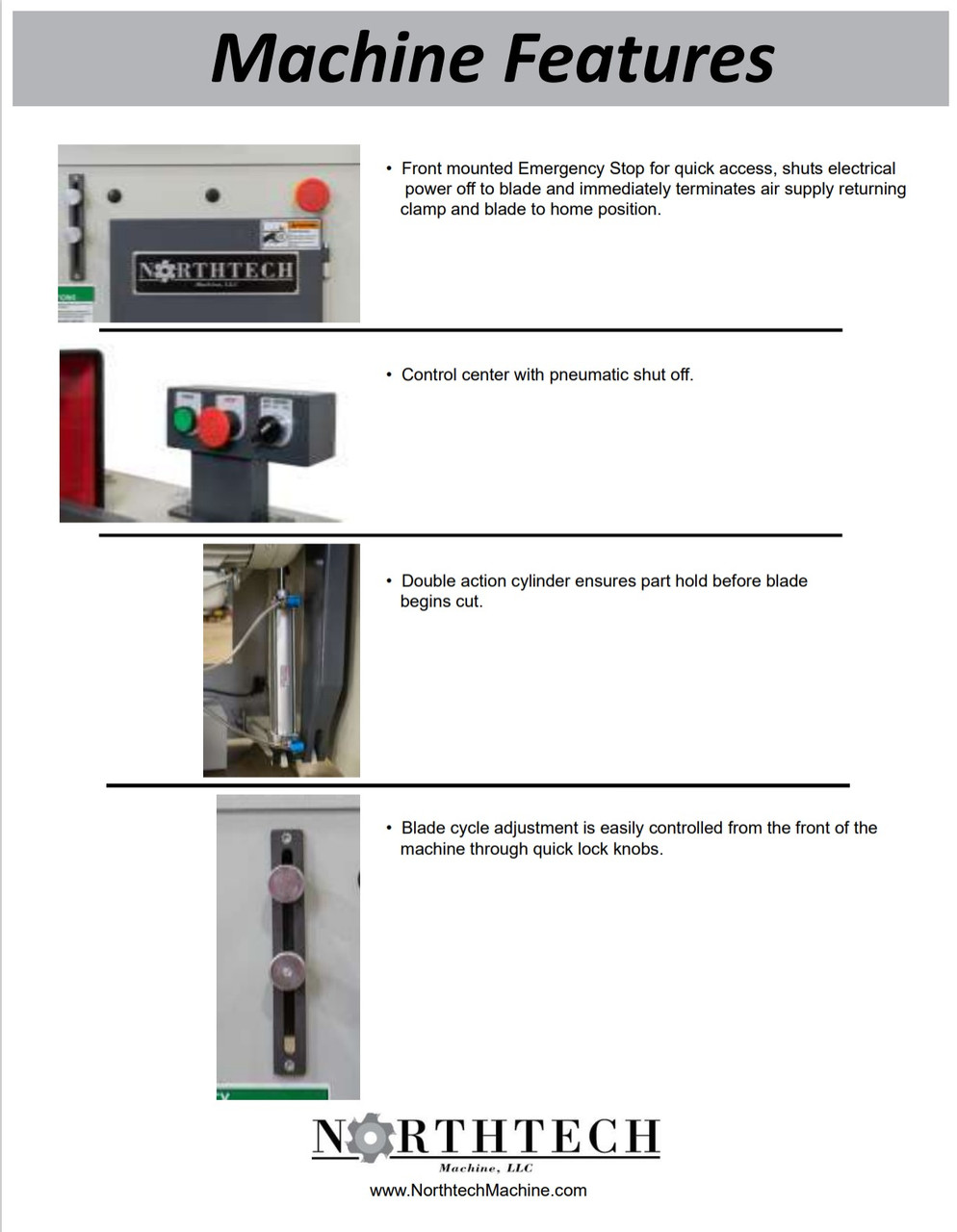

• Quick access on front of the machine to adjust blade stroke.

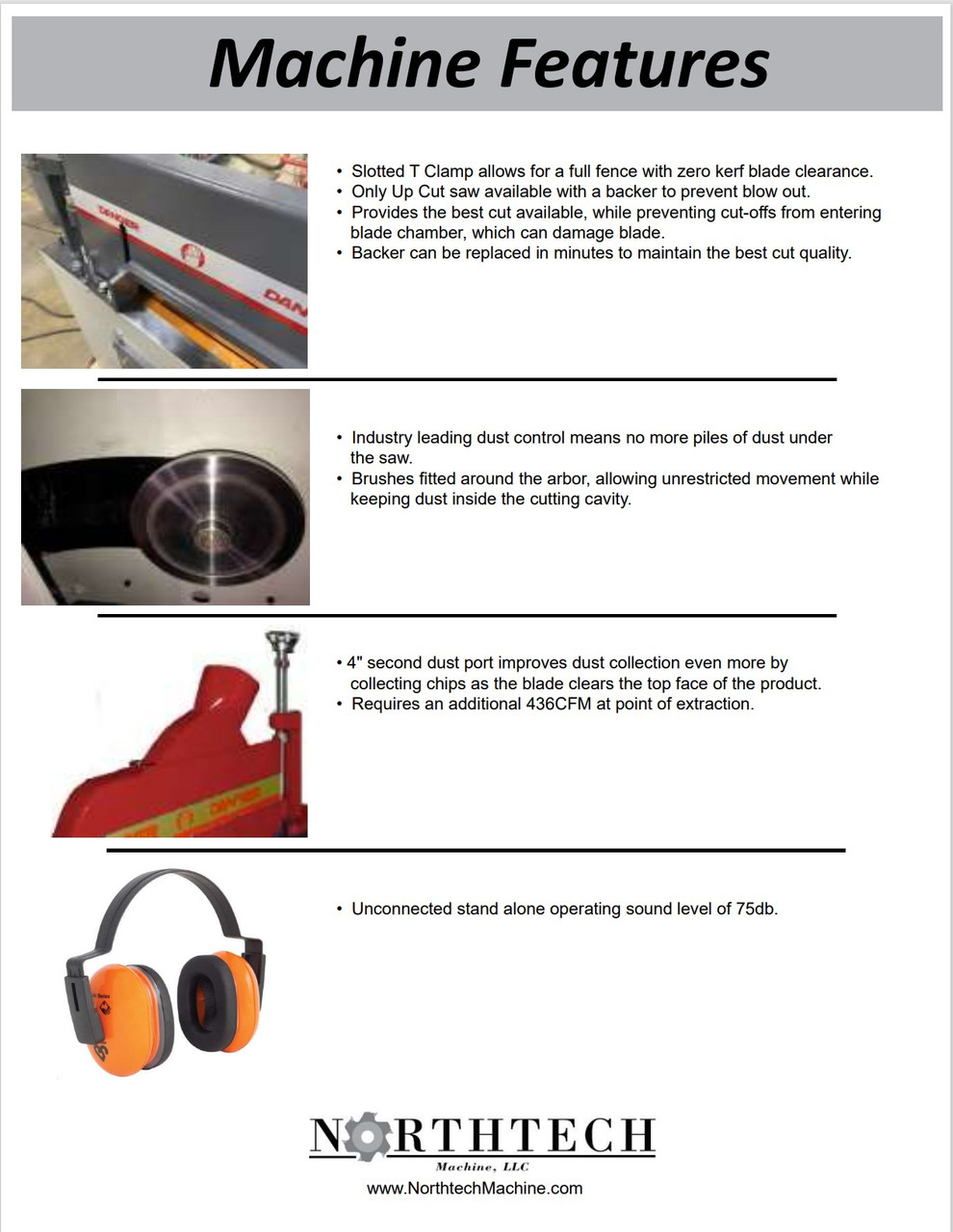

• Dust requirements: (2) 4" dust port requiring 436 CFM at point of extraction
• Amperage requirements: 230V 18.4 AMP / 460V 9.2 AMP
• Net / Gross weight: 548lbs / 685lbs
• Machine / Packing dimensions (LxWxH): 24" x 25" x 47 / 40" x 48" x 50"
• (1) Operation and Parts Manual included
• Warranty is one year parts
• Northtech off ers a full line of dust collectors for any application.
• All machines are tested at our corporate headquarters in Indiana prior to shipment providing trouble
free start up.
