Product Overview

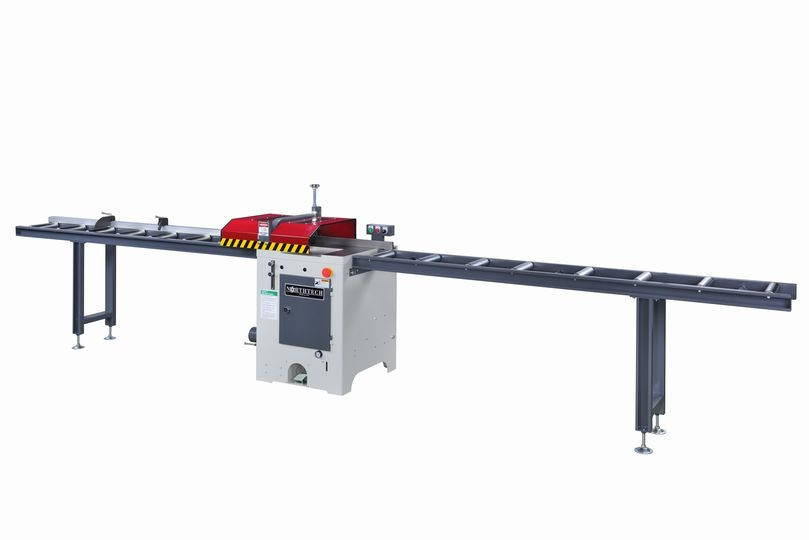

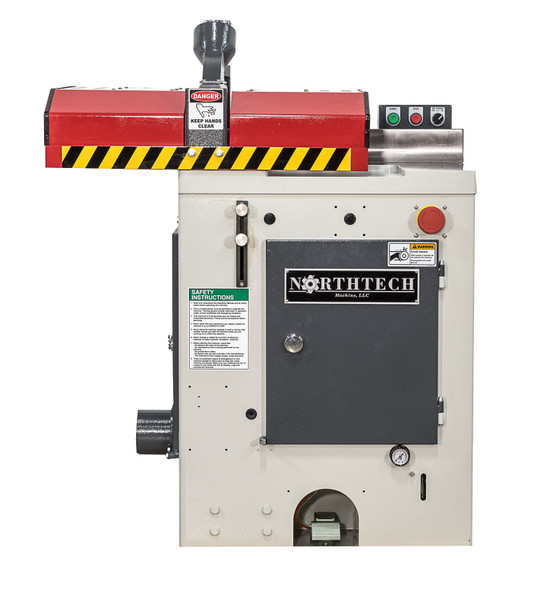

NT-UCS18 Up Cut Saw
PRODUCT DIMENSIONS

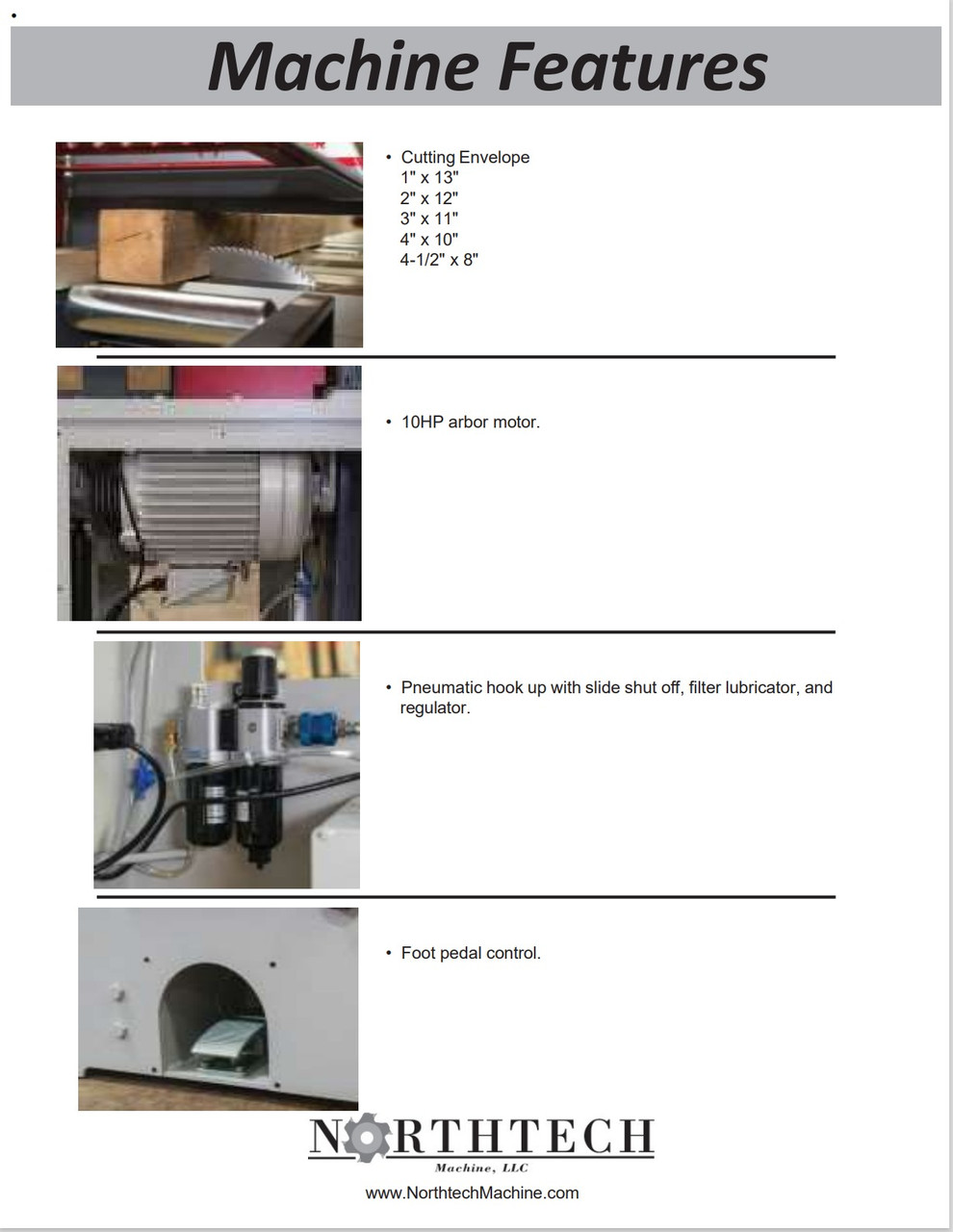

• Max cutting capacity: 1" x 13", 2" x 12", 3" x 11", 4" x 10"
FEATURES
• 10HP motor, 3PH 230V with 24V magnetic controls, 3600 RPM
• 18” 120T Carbide tipped blade with included
• 1” Saw arbor diameter
• Cycle operation: Pneumatically adjustable up to 45 cycles/minute
• Table size: 26” x 27-1/4”
• Quick access on front of the machine to adjust blade stroke
• Adjustable fence 2" x 25"
• Amperage requirements: 230V/460V 60HZ, 3PH: 24A/12A
• Dust requirements: (2) 4" dust port requiring 436 CFM at point of extraction
• Net / Gross weight: 730lbs / 860lbs
• Machine / Packing dimensions (LxWxH): 26" x 28" x 50" / 40" x 48" x 55"
• (1) Operation and Parts Manual included
• Warranty is one year parts
• Northtech offers a full line of dust collectors for any application.
• All machines are tested stateside prior to shipment providing trouble free start up.
