Product Overview

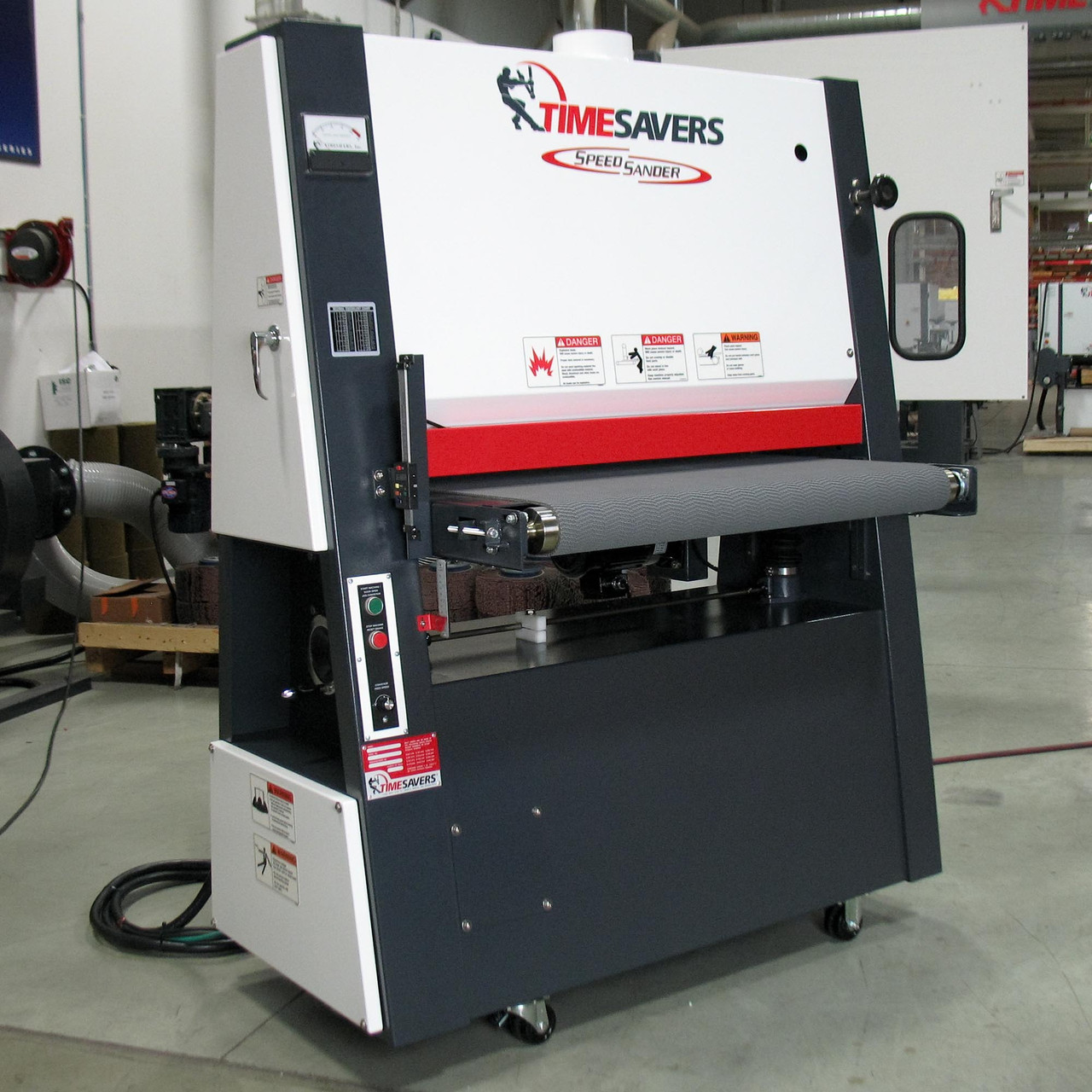

S311-13-1S Single Head, 37” SpeedSander with Single-Phase 7.5 HP Motor
The Timesavers Model S311-13-1S Single Head, 37” SpeedSander with Single-Phase 7.5 HP Motor is a versatile wide belt sander that uses a combination drum and platen head to optimize the finish on wood and significantly reduce hand labor. Rapidly dimensions and/or finishes any type of wood product. It includes industry leading standard features designed to meet your application needs. Superior design and construction of the Timesavers Model S311-13-Is Single Head, 37” SpeedSander with Single-Phase 7.5 HP Motor gives you the competitive edge.
The Speedsander is our entry-level sander designed for 1-3 man woodworking shops
The abrasive media can be used for multiple applications, for example, the drum can be used for stock removal and the polishing platen can be used for fine finish sanding.
A-Frame design
The A-Frame design gives this machine the flexibility to move around on its castors. The castors allow woodworkers to move this machine around the shop, giving them versatility when changing applications.
SPECIFICATIONS:
Abrasive belt size: 37”x60”
Main motor: 7.5 HP
Maximum width stock: 36”
Minimum part length: 11”
Maximum thickness opening: 4”
Feed speed: 15-45 FPM
Full load amps at 230/1/60 volt: 49.7*
Passline height: 34”-38”
Dust extraction: 1,000 CFM
Compressed air usage: 2 CFM @ 90 psi
Approximate shipping weight: 1,500 lbs
STANDARD FEATURES
Single Phase Motor
4 Inch Rubber Covered Drum
1.5 Inch Platen
Electronic Belt Tracking
Quick and Easy Belt Change
¼ Turn Quick Lock
Main Motor Load Meter
Main Motor Brake System
Rough Top Conveyor Belt
Variable Speed Conveyor Belt
Outboard Door Interlock

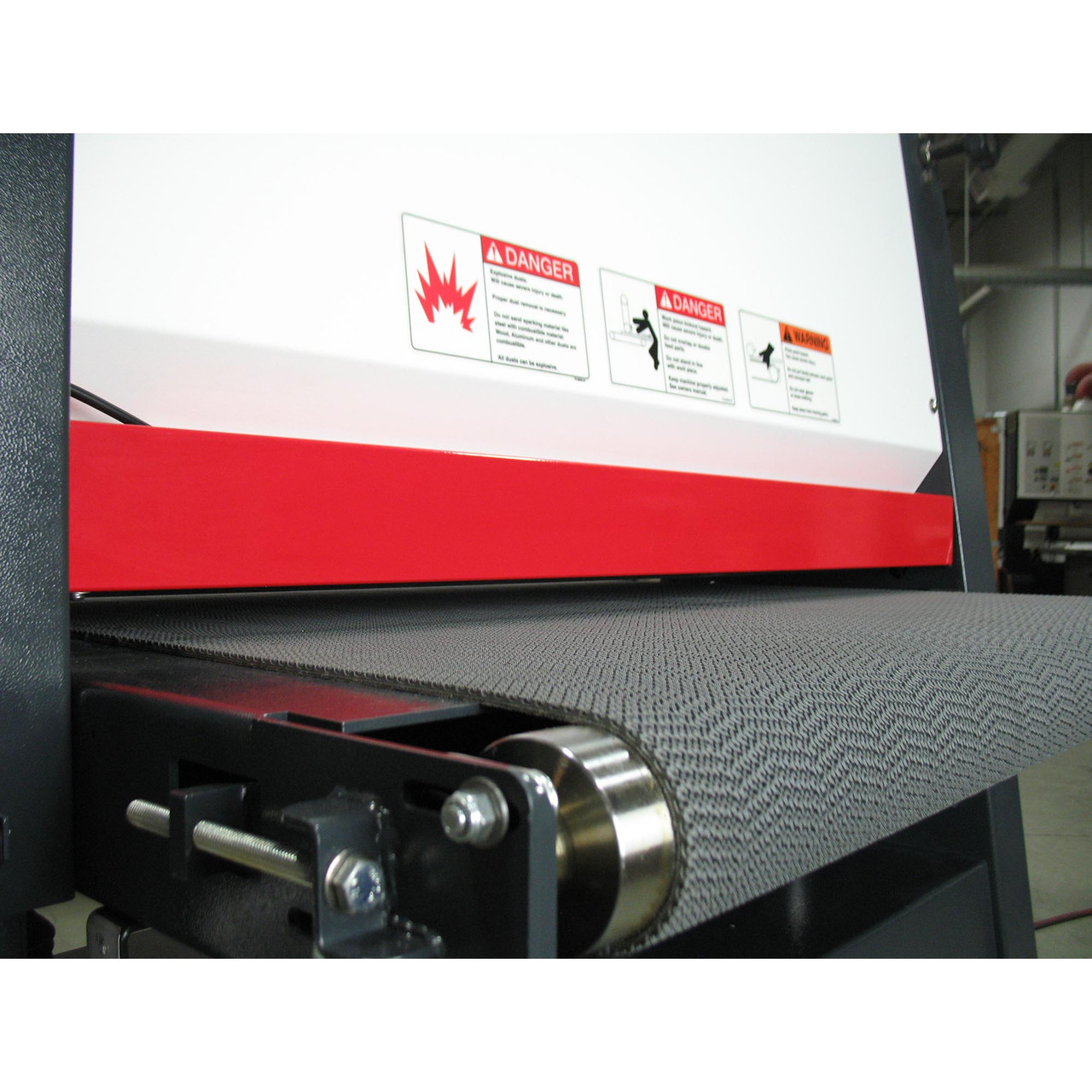

Infeed Stop Bar
4 Inch Bed Opening (34-28 Inch Passline)

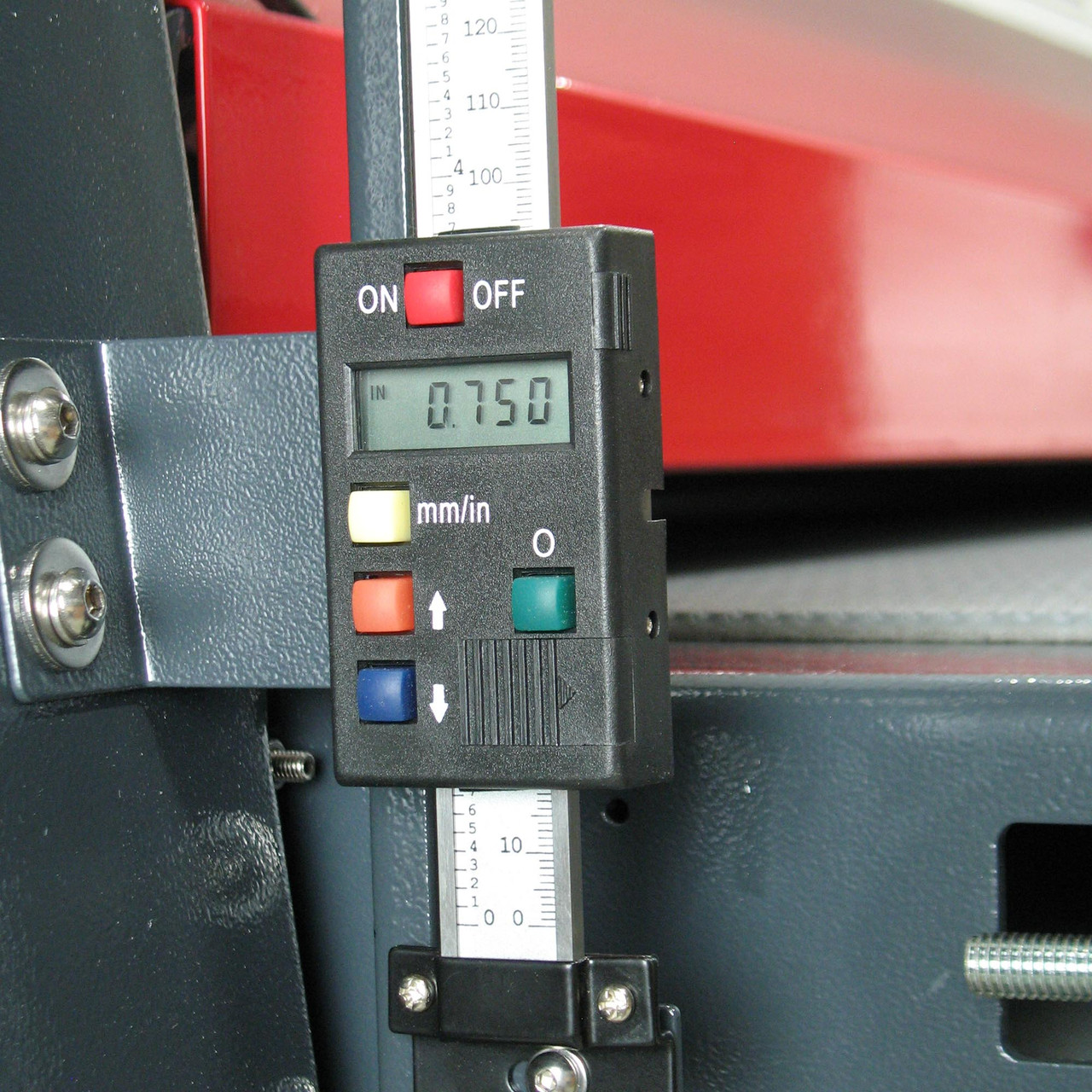

Digital Thickness Readout
Casters for Portability
