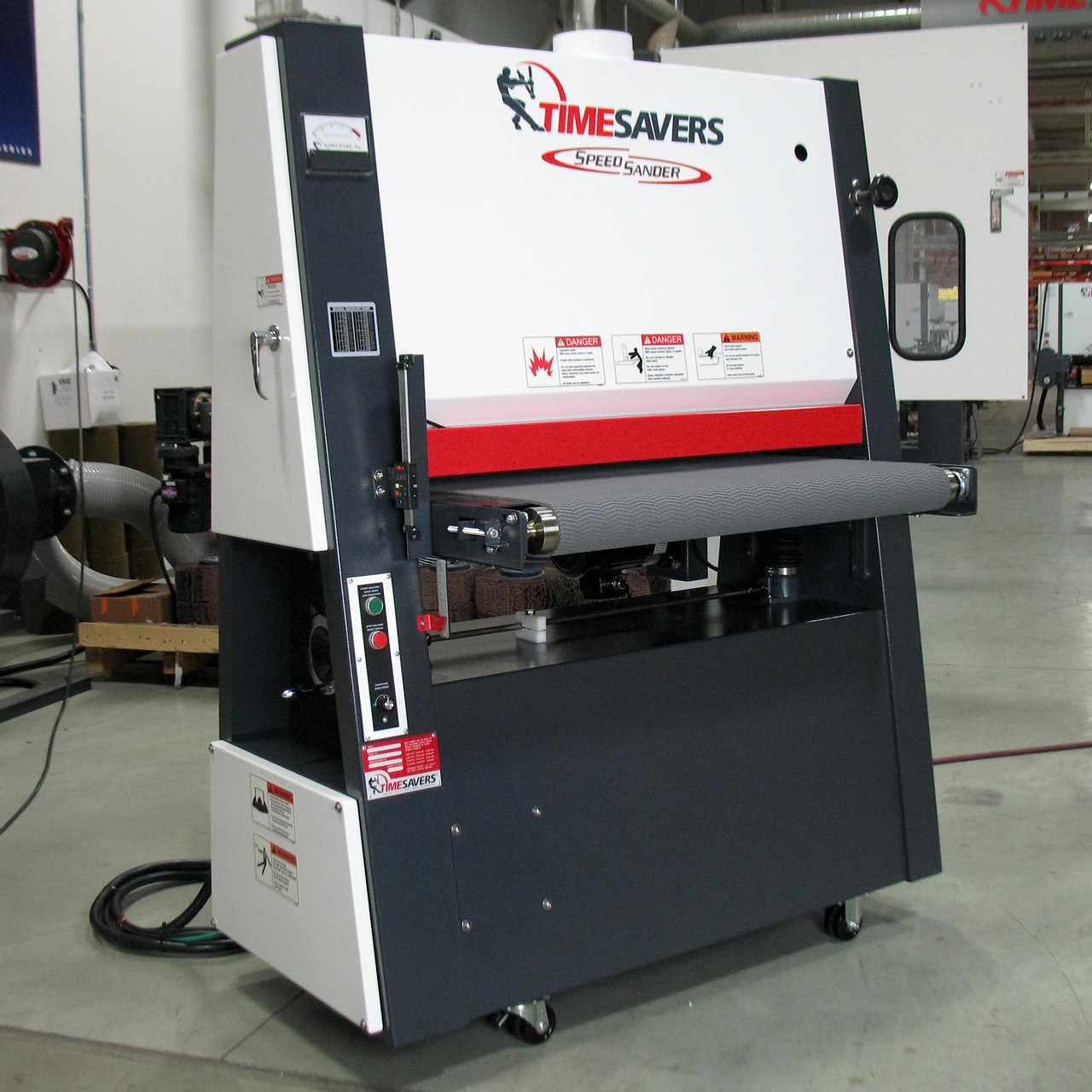

S311-13-1U Single Head, 37” SpeedSander with Single-Phase 10 HP Motor

KEY FEATURES

The Timesavers Model S311-13-1U Single Head, 37” SpeedSander with Single-Phase 10 HP Motor is a versatile wide belt sander that uses a combination drum and platen head to optimize the finish on wood and significantly reduce hand labor. Rapidly dimensions and/or finishes any type of wood product.  It includes industry leading standard features designed to meet your application needs. Superior design and construction of the Timesavers Model S311-13-IU Single Head, 37” SpeedSander with Single-Phase 10 HP Motor gives you the competitive edge.

SPECIFICATIONS:

Abrasive belt size: 37”x60”

Main motor: 10 HP

Maximum width stock: 36”

Minimum part length: 11”

Maximum thickness opening: 4”

Feed speed: 15-45 FPM

Full load amps at 230/1/60 volt: 59.7*

Passline height: 34”-38”

Dust extraction: 1,000 CFM

Compressed air usage: 2 CFM @ 90 psi

Approximate shipping weight: 1,500 lbs

STANDARD FEATURES

Single Phase Motor

4 Inch Rubber Covered Drum

1.5 Inch Platen

Electronic Belt Tracking

Quick and Easy Belt Change

¼ Turn Quick Lock

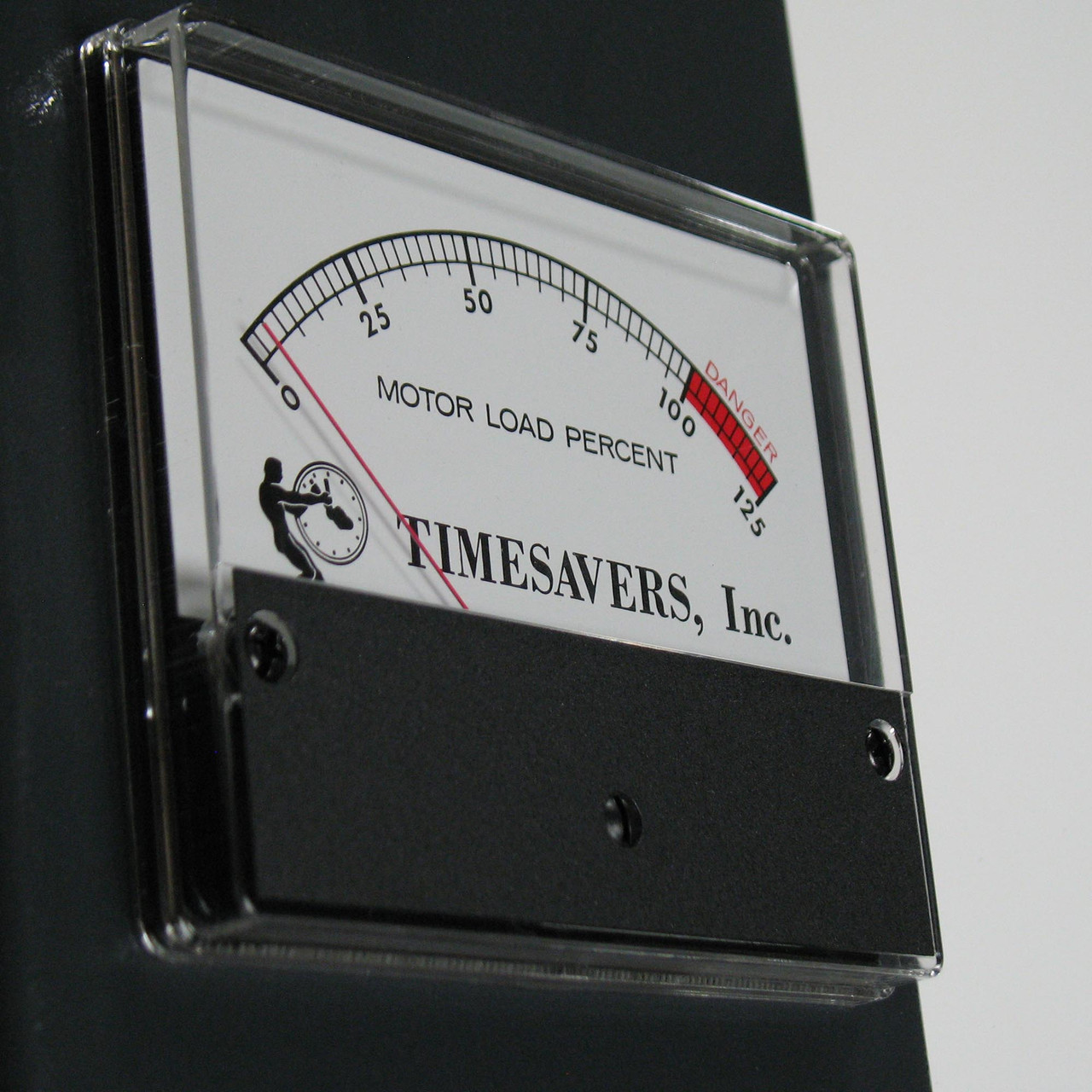

Main Motor Load Meter

Main Motor Brake System

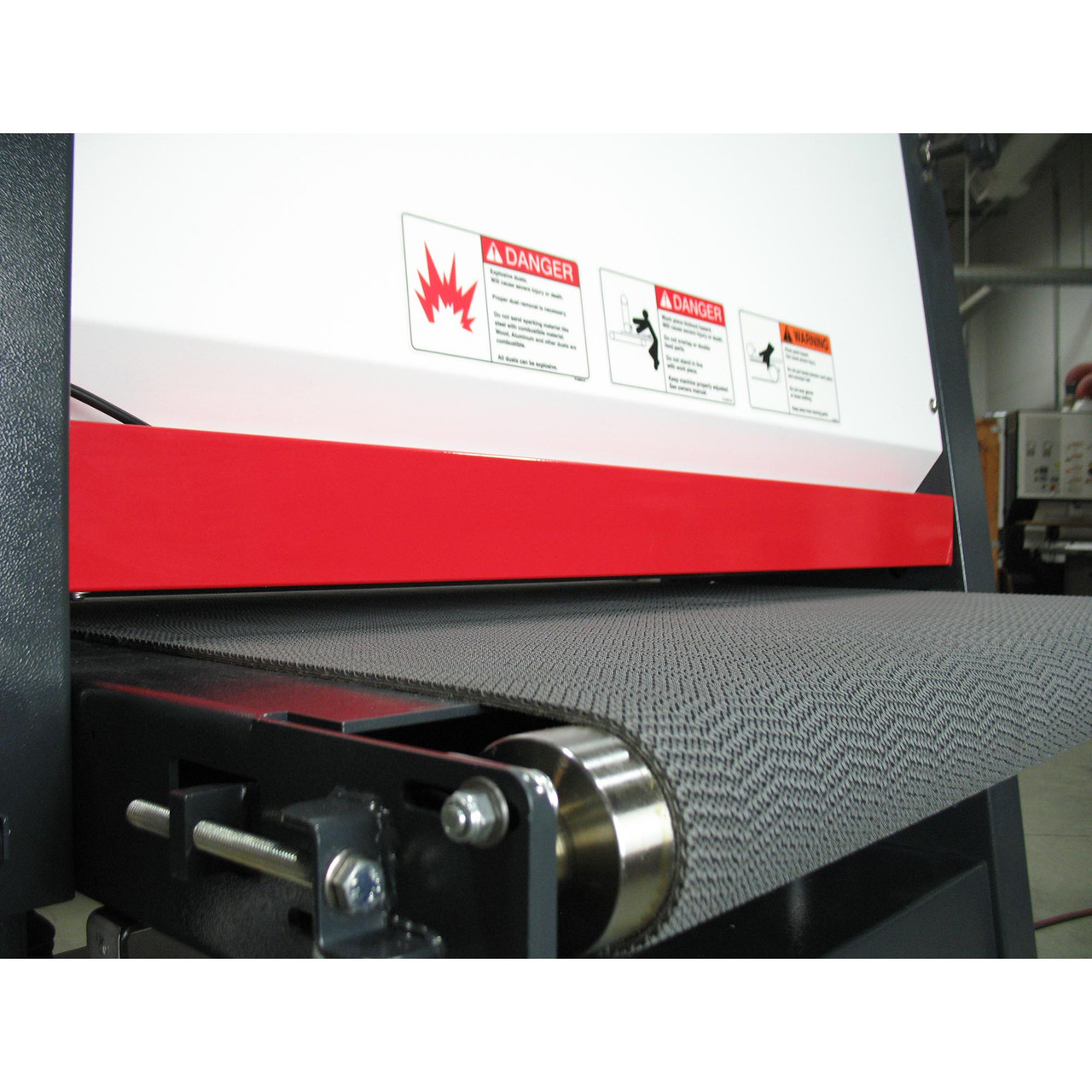

Rough Top Conveyor Belt

Variable Speed Conveyor Belt

Outboard Door Interlock

Infeed Stop Bar

4 Inch Bed Opening (34-28 Inch Passline)

Digital Thickness Readout

Casters for Portability
