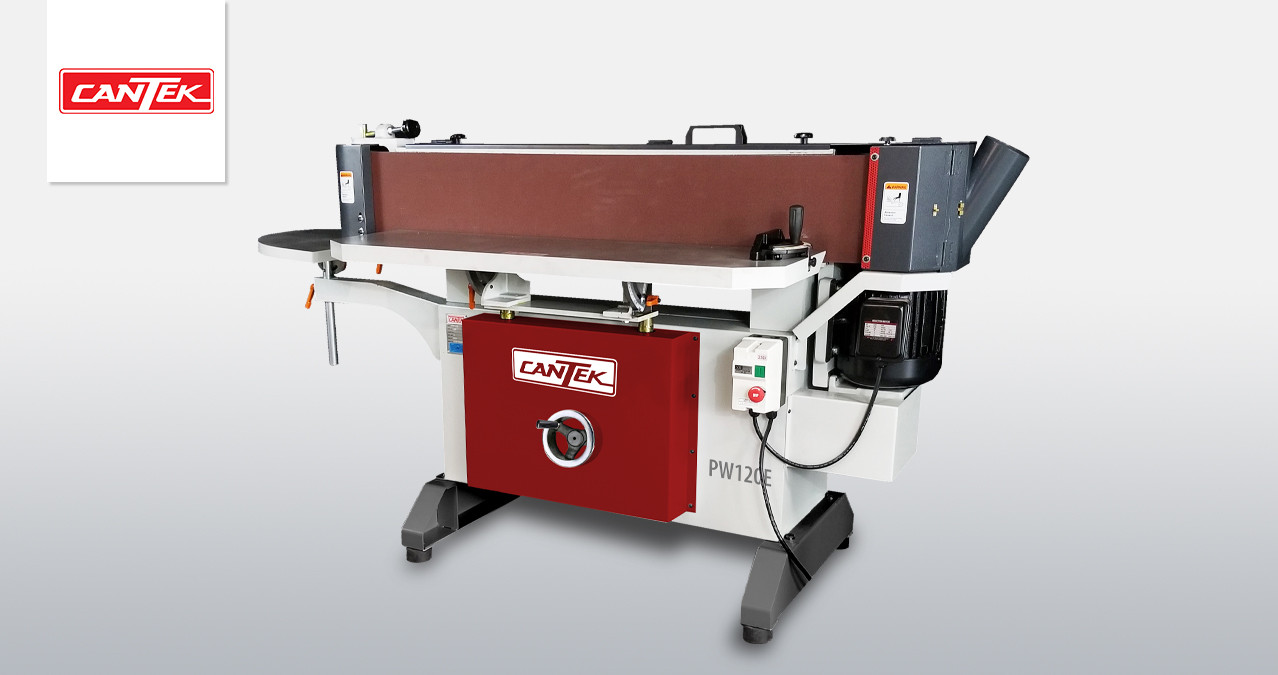

• CANTEK | PW120E OSCILLATING EDGE SANDER
  • Powerful 3HP motor with oscillation gearbox The 3HP direct-drive motor ensures plenty of power during sanding operations. Below, the gear box oscillates the unit back and forth to produce a ½" oscillation. This ensures optimum sanding quality
  • Simple adjustment for belt tracking The belt can be easily tracked using an adjustment knob
  • Cast aluminum end table for curve sanding & belt tracking The end table is also cast aluminum and can be manually raised or lowered for maximum belt usage. It can also be tilted for bevel sanding. Above the idle roller is a tracking adjustment knob to allow the operator to ensure the belt is tracking properly conveniently. There is also a quick-release handle for fast and convenient belt changes.

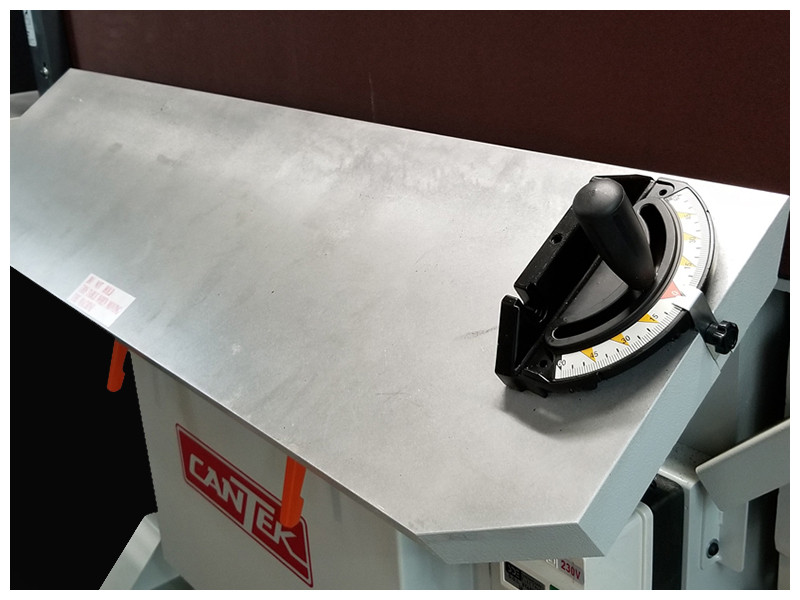

  • Cast aluminum tilting table from -5 degrees to 45 degrees The large table is made from cast aluminum and is precision machined and polished. The table can be conveniently raised or lowered by means of a handwheel conveniently located under the machine table. This allows for maximum usage of the belt. The table is raised/lowered by a handwheel for maximum belt usage.
  • CSA/UL Magnetic Switch Equipped with a magnetic starter with an emergency push-button for operator convenience and safety
  • Rubber covered drive roll with flip open gate for sanding longer pieces The cover for the drive roller can be opened to allow for longer material to be sanded.
  • Tilting table with angle scale For bevel sanding, the table can be angled from -5 degrees to +45 degrees. There is an indicator scale on the tilting bracket for accurate adjustment.
  • CANTEK | PW120E OSCILLATING EDGE SANDER

    • CANTEK | PW120E OSCILLATING EDGE SANDER

    CANTEK

    $8,200.00
    Request A Quote
    (No reviews yet) Write a Review
    SKU:
    CANTEK | PW120E OSCILLATING EDGE SANDER

    Product Description

    CANTEK | PW120E OSCILLATING EDGE SANDER

    Versatile edge sander for doors, drawer boxes and more.

    The Cantek PW120E Oscillating Edge Sander is designed for the most demanding sanding applications. With its powerful 3HP motor, it can perform under industrial requirements. The oscillating belt ensures optimum sanding quality and extended belt life. Its versatility lies in the number of functions that can be done on this single machine. The industrial cast aluminum table can be easily tilted with positive stops of 45° and -5° so you can easily sand straight or miter edges. Additionally, the front table is spring-loaded, making it effortless for the operator to set the table height to utilize the full sanding belt. The 9" high sanding belt makes it ideal for sanding thicker furniture parts or drawer boxes. The additional tiltable cast aluminum end table with a removable guard allows for inside contour sanding.

    Why Cantek PW120E Oscillating Edge Sander?

    · Oscillating sanding belt produces optimum sanding results with extended belt life as it runs cooler during sanding operations while using more of the belt.

    · Powerful 3HP motor for even the most demanding sanding requirements.

    · Cast aluminum front and rear tables are adjustable and tiltable for straight or bevel sanding.

    · Contoured end table with 4" pulley allows sanding a workpiece's inside radius.

    · 48" x 9 ½" cast iron platen is covered with graphite cloth providing a wide & stable sanding area that is perfect for doors, furniture parts, and even longer parts.

    Key Advantages

    · Spring-loaded front table allows for effortless adjustment of the table to the desired position on the belt.

    · 8" travel of the front table allows for maximum use of the sanding belt for prolonged life.

    · Oscillating system is driven from the main motor by the gear mechanism.

    · Quick and easy belt changes and belt tracking adjustment.

    · Two 4″ dust chutes for dust collector connection.

    · Magnetic switch to CSA/UL standard.



    Cantek PW120E Oscillating Edge Sander | Specifications



    DESCRIPTION                                           INCH                                     METRIC

    Motor power                                                                   3 HP

    Belt size                                                9″ x 138.5″                          230 x 3520mm

    Platen size                                              9.5″ x 48″                           241 x 1219mm

    Front table size (LxW)                         47.6″ x 11.8″                         1210 x 300mm

    Table tilt                                                                   -5o to +45o

    Table height from floor                            32.7″                                    830mm

    Dust ports                                               (2) 4″                                  (2) 100mm)

    Machine dimensions (LxWxH)  82.7” x 24.4” x 40.2”                     2100 x 620 x 1020mm

    Shipping dimensions (LxWxH) 86.6” x 28.4” x 45.3”                      2200 x 720 x 1150mm

    Machine weight                                        650 lbs                                   295 kgs

    Shipping weight                                       726 lbs                                   330 kgs

    Machine electrics                                              230/3/60 = 9.6 amps

                                                                              575/3/60 = 3.9 amps
