Product Description
NT-ES1648D
DOUBLE SIDED DRAWER BOX EDGE SANDER

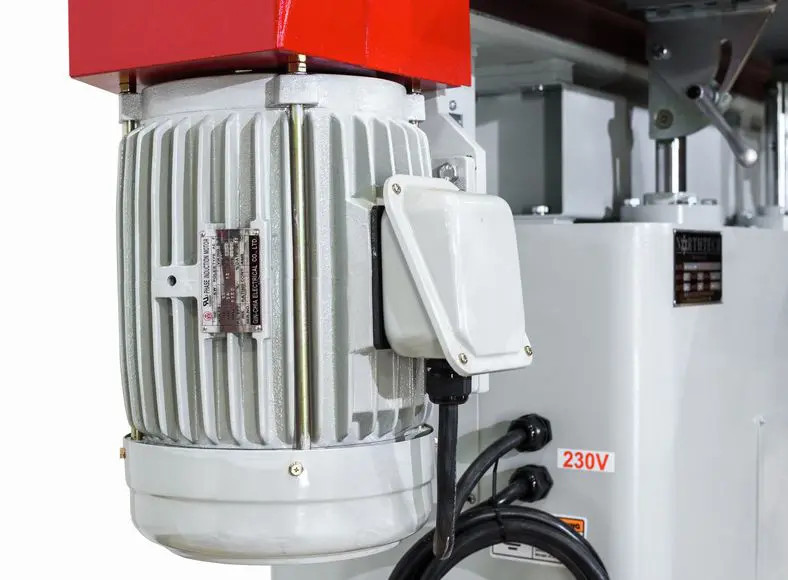

• 10HP main motor; 3PH, 230V/460V Dual Voltage
• 12mm (1/2") oscillating stroke
• Drive wheel: 7" x 17"
• Easy elevation control through manual worm gear
• Side table dimensions: (2) 18" x 48"
• Sanding belt size: 16" x 143" (Included)
• Side table tilt: 0° - 45°
• Sanding belt speed: 970 m/min (3,200 FPM)
• Platen size: (2) 16.5" x 48"
• Dust Ports: (2) 5" requiring 681 CFM @ point of extraction
• Easy jig fences are standard for squaring accuracy and part stability
• Machine Dimensions: 73" x 39" x 53"
• Packaging Dimensions: 77" x 43" x 59"
• Net weight: 1,103 lbs
• Gross weight: 1,389 lbs
• Tool box and manual included
• Standard Northtech one year parts warranty
• Northtech off ers a full line of dust collectors and fl ex hose for any application
• All machines are tested at our corporate headquarters in Indiana prior to shipment
providing trouble
Options:
• Powered table elevation available with factory order
