• NT-DBC102540 Drawer Box Clamp

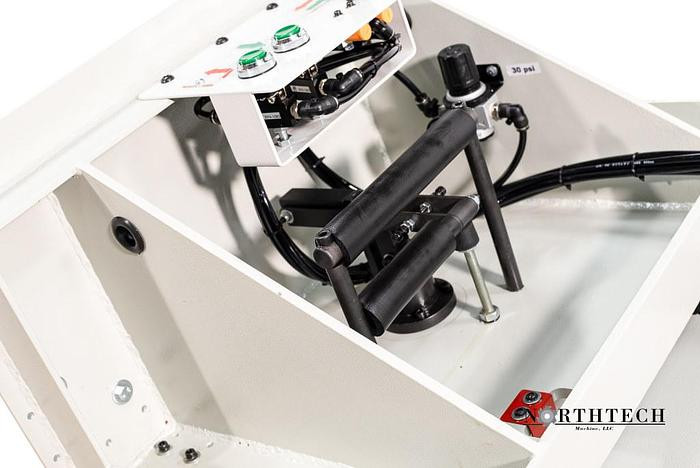

  • • Padded release handles are ergonomically designed for repeatable operator comfort. • Once released, the right side moves effortlessly along lineal round rails.
  • • Simple control station. • Clamp/Clamp release standard. • Optional top clamps joystick shown.
  • • Linear positioning scale is mounted fl ush to the table and easily viewable through window. • Allows operator quick positioning for notcher drawer size.
  • • Sizes down to 6” width with optional top clamp system. • Smaller openings available.
  • • Dual pneumatic pressure. • Rigid mount positioning bar for reduced frame defl ection.
  • • Aluminum positioning bars with (4) drawer bottom supports. • Bottom supports are removable for the smallest opening available.
  • • Dual rails for smooth resistance free positioning. • Lineal round rod for eff ortless and repeatable positioning.
  • • (2) High capacity clamping cylinders provide excellent clamping power. • (2) Stage pressure provides quick but smooth clamp cycles.
  • • FLR (FIlter, Lubricator, Regulator) with single connection included. • Clamping pressure is individually adjustable both directions for excellent operational control.

    • NT-DBC102540 Drawer Box Clamp

    Northtech

    Request a Quote

    Request A Quote
    (No reviews yet) Write a Review
    SKU:
    NT-DBC102540 Drawer Box Clamp

    Product Description

    NT-DBC102540 Drawer Box Clamp
    • Universal drawer box clamp with fi xed left side clamp
    • Manually adjustable right side clamp
    • Working Capacity (LxWxH): 10” x 25” x 40”
    • Two stage clamping for smooth operation
    • Two hand push button operation for added operator safety
    • Rapid set opening means no tools needed for changeovers
    • Capable of top and bottom drawer building
    • Suitable for assembling dovetail and dowel construction boxes
    • Machine dimensions (LxWxH): 74” x 37” x 56”
    • Machine/Packaging weight: 800lbs / 1,200lbs
    • Operation and Parts Manual included
    • Warranty is one year parts
    • All machines are tested stateside prior to shipment providing trouble free start up.
    • Northtech off ers a full line of drawer building machinery, ask your salesman for information of
    Box Sanders, Drawer Notchers or Dovetailers
