Product Description

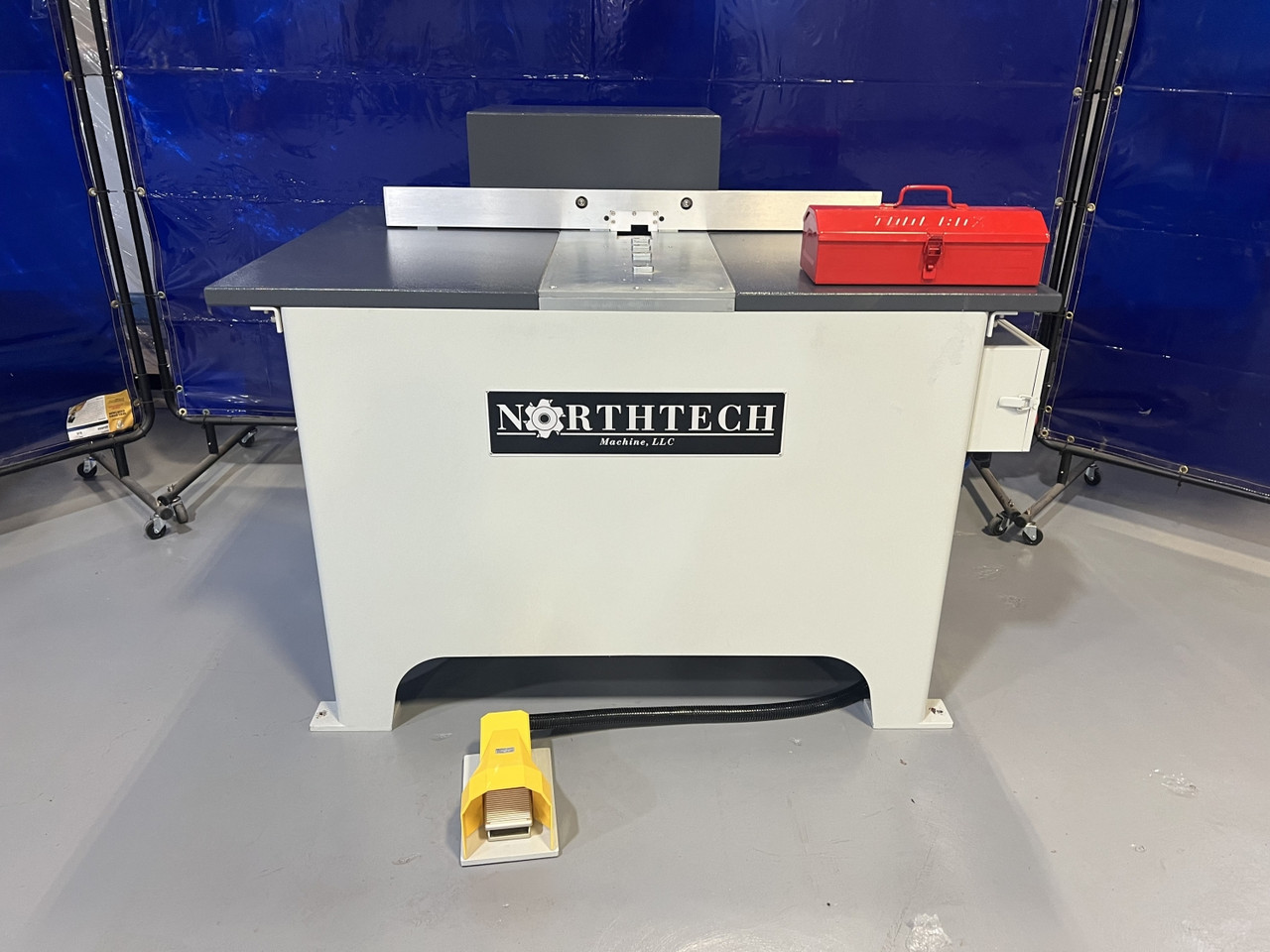

NT-DBN26 Drawer Box Notcher
• Motor 5HP 3PH 230V or 460V 60HZ
• Max notch dimension of 57mm (2 ¼”) x 0.5” H with optional head
• Capable of notching over 200 boxes/hr
• Designed to notch the underside of a drawer as well as drill the back
for using under mount drawer slides
• Cutter diameter: 10”
• Drill diameter: ¼”
• Table size: 50” x 23”
• Passline: 33”
• (2) 4” Dust port requiring 436CFM at point of extraction
• Recommended compressed air: 90 – 100PSI
• Pneumatic cutter & drill stroke by foot pedal operation
• Cutter stroke and drill are adjustable

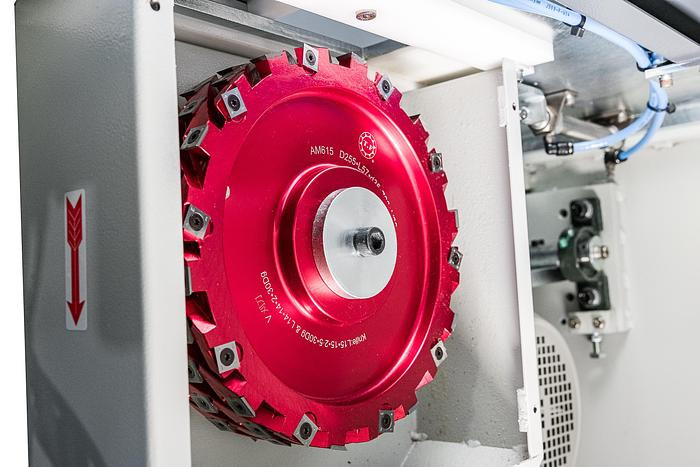

• Insert knife cutterhead with solid carbide inserts for optimum fi nish results and long tool life
• Comes with (35mm) 1.4” cutterhead with inserts and ¼” (6.3mm) carbide drill bit
• Machine dimensions (LxWxH): 48” x 38” x 40”
• Machine weight: 650lbs
• Operation and parts manual included
• Standard Northtech one year parts warranty
• All machines are tested stateside prior to shipment providing trouble free start up.
• Northtech off ers a full line of drawer building machinery, ask your salesman for information on
Box Sander, Award Winning Dovetailers and Automatic Gluers
