Product Description
NT-ES1248SE
EDGE SANDER

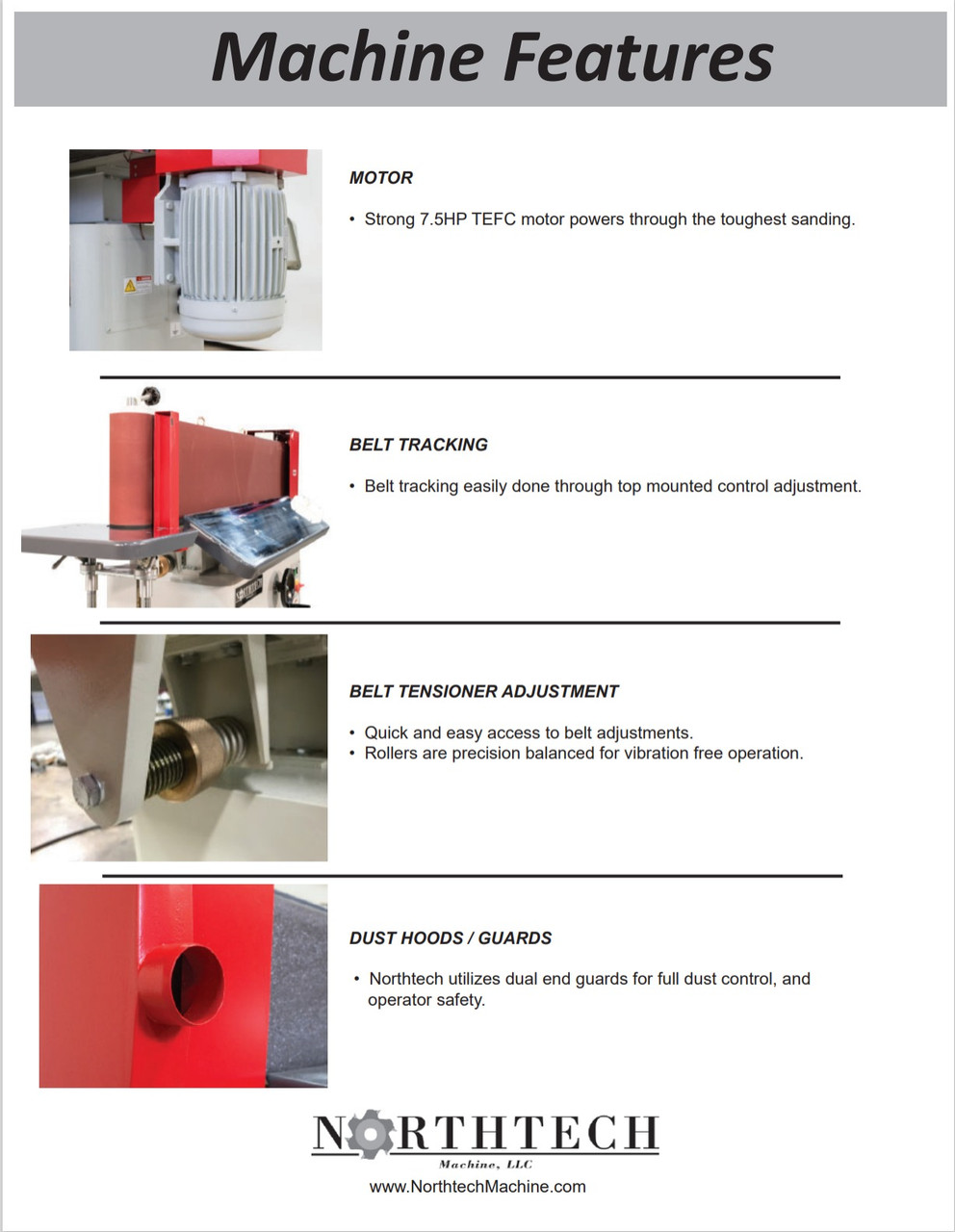

• 7.5HP main motor; 3PH, 230V/460V Dual Voltage
• 12mm (1/2") oscillating stroke
• Drive wheel: 7" x 13"
• Easy elevation control through manual worm gear
• Side table dimensions: 10" x 48"
• Side table tilt 0° - 45°
• End table dimensions: 13-3/4" x 16-1/2"
• End table tilt: 0° - 45°
• Sanding belt size: 12" x 136" (Included)
• Sanding belt speed: 60HZ, 3200 FPM
• Platen size: 12" x 48"
• Dust ports: (2) 4" requiring 436 CFM at point of extraction
• Easy jig fences are standard for squaring accuracy and part stability
• Machine Dimensions: 70" x 25" x 49"
• Packaging Dimensions: 82" x 30" x 55"
• Net weight: 977 lbs
• Gross weight: 1,003 lbs
• (1) Tool box
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up.
