Product Overview

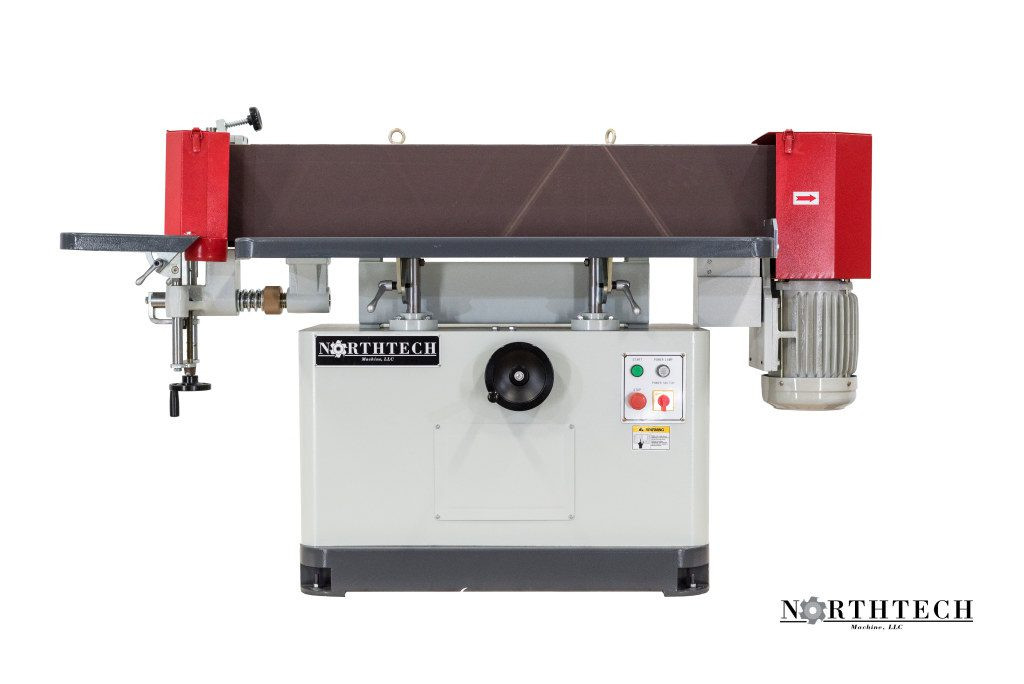

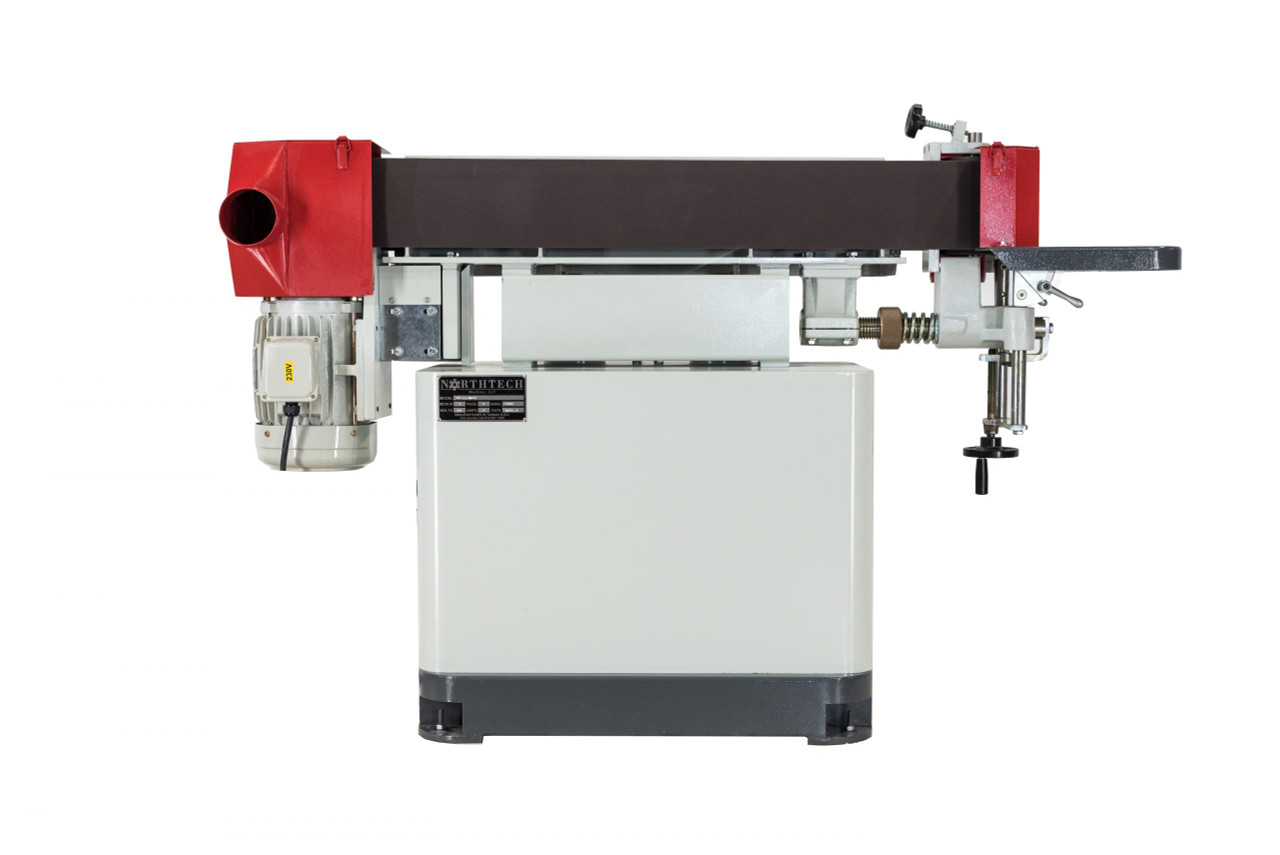

NT-ES948SE
EDGE SANDER
• 5HP main motor; 3PH, 230V/460V Dual Voltage
• 12mm (1/2") oscillating stroke
• Drive wheel: 7" x 9-5/8"
• Easy elevation control through manual worm gear
• Side table dimensions: (1) 10" x 48"
• Side table tilt: 0° - 45°
• End table dimensions: (1) 13-3/4" x 16.5"
• End table tilt: 0° - 45°
• Sanding belt size: 9" x 134" (Included)
• Sanding belt speed: 3,300 FPM
• Platen size: 9.5" x 48"
• Dust ports: (2) 4" requiring 436 CFM @ point of extraction
• Easy jig fences are standard for squaring accuracy and part stability
• Part thickness: 9"
• Passline: Approximately 32"
• Amperage requirements: 230V/460V 3PH 15A/7.5A
• Machine Dimensions: 76" x 26" x 46"
• Packaging Dimensions: 80" x 30" x 53"
• Net weight: 696 lbs
• Gross weight: 870 lbs
• (1) Tool box
• Warranty is one year parts
• Northtech off ers a full line of dust collectors for any application.
• All machines are tested at our corporate headquarters in Indiana prior to shipment providing trouble
free start up
